High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
Specifications
customized support :
OEM, ODM
mounting type :
Free Standing
blade material :
Plastic
Place of Origin :
Guangdong, China
Brand Name :
OEM
Model Number :
DC 8025
Voltage :
12V-48V
warranty :
1 Year
after-sales service provided :
Online support
Power Source :
Electric
bearing type :
hydraulic bearing
Type :
Adjustable Blade Axial Fan
Product name :
Motor Cooling Fan
Insulation :
Class A
Size :
80*80*25mm
Weight :
65g
Usage :
Cooling System
Bearing system :
2 Ball, Longlife Sleeve,FDB
Material :
Plastic Blade
Motor Type :
DC brushless external rotor motor
Color :
Black
Votage :
12V-48V
MOQ :
500 pieces
Price :
$1.80-2.50 / piece
Description
8025 80x80x25mm Ventilation Fans 80mm Plastic Case 12v 24v 48v Brushless Dc 12V Motor Axial Flow Cooling Fan

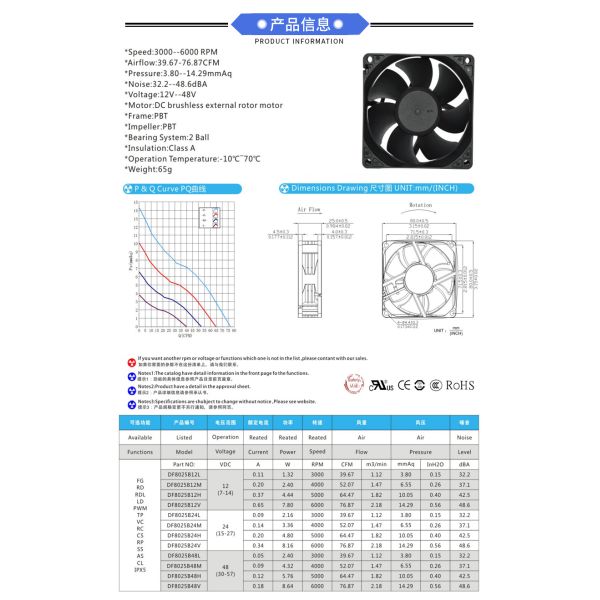

Products Description
Speed
3000- 6000 RPM
Airflow
39.67- 76.87CFM
Pressure
3.80- 14.29-mmAq
Noise
32.2-48.6dBA
Voltage
12V-48V
Motor
DC Brushless external rotor motor
Frame
PBT
Impeller
PBT
Bearing System
2 Ball
Insulation
Class A
Operation Temperture
-10℃ - 70℃
Weight
65g
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
R&D Reliability Equipment
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
Quality Control:
1.Incoming quality control
2.In process quality control
3.QA Inspection
4.100% testing before the packing.
Company Profile
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
Dongguan XinBinMing Cooling Fan Co., Ltd., a manufacturer which is always focusing on the R&D, production and selling the cooling fans.
We passed the ISO9001, IATF16949, the products passed UL, RoHS, TUV, CE, SGS, CCC certificates. Our products are widely used in automobile, power supply, home appliances, medical treatment, communication all over the world.
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
Services:
1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. We often give warranty on quality of products, and will give you solution if any quality problems occurs when you receive our items.
Certifications
We passed the ISO9001, IATF16949, the products passed UL, RoHS, CUL, TUV, CE, SGS, CCC certificates
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
Our Cooling fan accessories advantage:
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
Application
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
Workshop Show
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
High-speed 8025 9238 9038 12025 Dc 12v 24v Brushless Radiator Fan Motor Axial Cooling Flow Inverter Plastic Blade
FAQ
1. Do you customized cooling fans?
Yes, Cooling fans can be customized base on your requirement.
2. How do you guarantee the quality of products?
We use selected raw materials, strict production methods, and 100% inspection and certification before leaving the factory to ensure that the goods received by customers are consistent with our description.
3. How many kinds of bearings do you have for cooling fans?
We have sleeve bearings, hydraulic sleeve bearings and double ball bearings. The service life of sleeve fan is 25000 hours, that of hydraulic sleeve bearing is 30000 hours, and that of ball bearing is 50000 hours.
4. What kind of cooling fans can your company provide?
We can provide DC/AC brushless fans, which are mainly divided into three categories: axial flow fans, blowers (centrifugal fans) and cross flow fans (tangential fans).
5. What functions can the fan choose?
Optional functions: automatic restart, speed detection, shutdown alarm, waterproof (IP68 optional), PWM function, temperature control, etc.
7. How to select a DC fan?
To choose a DC fan, you should consider the following points: Fan size (mm), Fan speed (RPM), Fan airflow (CFM), Fan noise level (DBA), Fan starting voltage (V), Fan current (a ), Fan connector.

Please feel free to contact us if any confuse, we always on your service!
