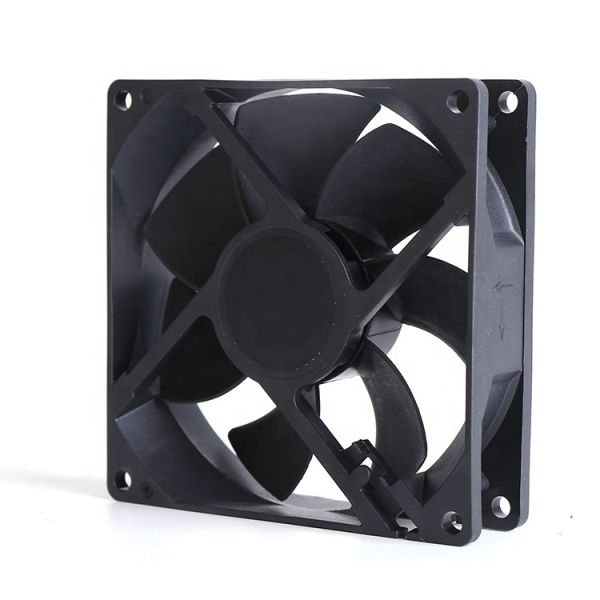

9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
Specifications
customized support :
OEM, ODM
mounting type :
Free Standing
blade material :
Plastic
Place of Origin :
Guangdong, China
Brand Name :
OEM
Model Number :
9225
Voltage :
12V---24V
warranty :
1 Year
after-sales service provided :
Online support
Power Source :
Electric
bearing type :
hydraulic bearing
Type :
Axial Fan
Material :
Plastic, Plastic Blade
Product name :
Brushless Fan Pwm Waterproof Plastic Axial Flow Fan
Insulation :
Class A
Size :
92*92*25mm
Weight :
115 g
Usage :
Cooling System
Bearing system :
2 Ball, Longlife Sleeve, FDB
Motor Type :
DC brushless external rotor motor
Color :
Black
Votage :
12 V-48V
MOQ :
2 pieces
Price :
$3.30-3.60 / piece
Description
9225 12v 24v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan
Products Description

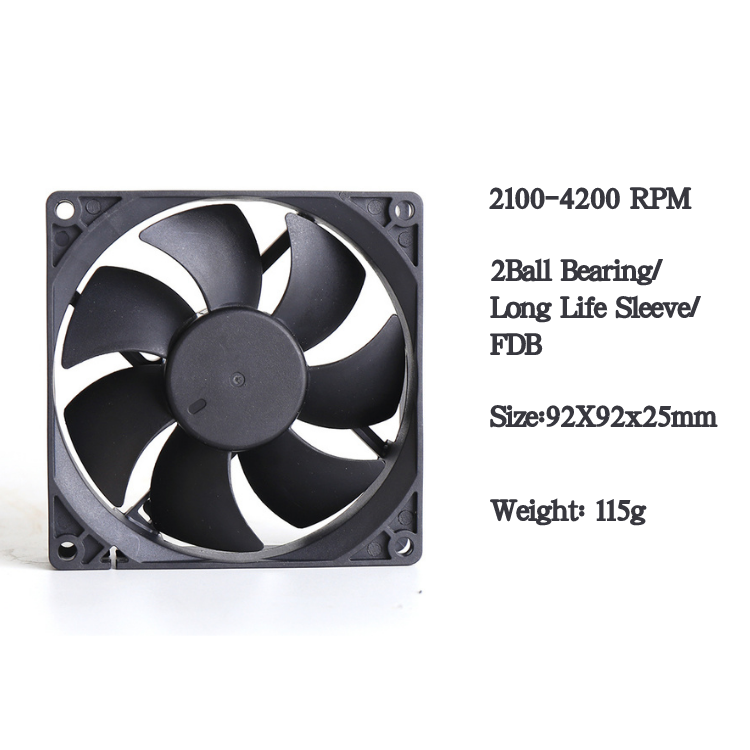

Speed
2100- 4200RPM
Airflow
43.80- 83.80 CFM
Pressure
2.19- 8.03mmAq
Noise
29.8- 44.9dBA
Voltage
12V-24V
Motor
DC Brushless external rotor motor
Frame
PBT
Impeller
PBT
Bearing System
2 Ball, Longlife Sleeve, FDB
Insulation
Class A
Operation Temperture
-10℃ - 70℃
Weight
115g
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
R&D Reliability Equipment
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
Quality Control:
1.Incoming quality control
2.In process quality control
3.QA Inspection
4.100% testing before the packing.
Company Profile
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
Dongguan XinBinMing Cooling Fan Co., Ltd., a manufacturer which is always focusing on the R&D, production and selling the cooling fans.
We passed the ISO9001, IATF16949, the products passed UL, RoHS, TUV, CE, SGS, CCC certificates. Our products are widely used in automobile, power supply, home appliances, medical treatment, communication all over the world.
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
Services:
1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. We often give warranty on quality of products, and will give you solution if any quality problems occurs when you receive our items.
Certifications
We passed the ISO9001, IATF16949, the products passed UL, RoHS, CUL, TUV, CE, SGS, CCC certificates
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
Our Cooling fan accessories advantage:
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
Application
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
Workshop Show
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
9225 12v 24v 48v Dc Multifunction Cooling Fan 92x92x25mm Brushless Fan Pwm Waterproof Plastic Axial Flow Fan -
FAQ
1. Do you customized cooling fans?
Yes, Cooling fans can be customized base on your requirement.
2. How do you guarantee the quality of products?
We use selected raw materials, strict production methods, and 100% inspection and certification before leaving the factory to ensure that the goods received by customers are consistent with our description.
3. How many kinds of bearings do you have for cooling fans?
We have sleeve bearings, hydraulic sleeve bearings and double ball bearings. The service life of sleeve fan is 25000 hours, that of hydraulic sleeve bearing is 30000 hours, and that of ball bearing is 50000 hours.
4. What kind of cooling fans can your company provide?
We can provide DC/AC brushless fans, which are mainly divided into three categories: axial flow fans, blowers (centrifugal fans) and cross flow fans (tangential fans).
5. What functions can the fan choose?
Optional functions: automatic restart, speed detection, shutdown alarm, waterproof (IP68 optional), PWM function, temperature control, etc.
7. How to select a DC fan?
To choose a DC fan, you should consider the following points: Fan size (mm), Fan speed (RPM), Fan airflow (CFM), Fan noise level (DBA), Fan starting voltage (V), Fan current (a ), Fan connector.

Please feel free to contact us if any confuse, we always on your service!
