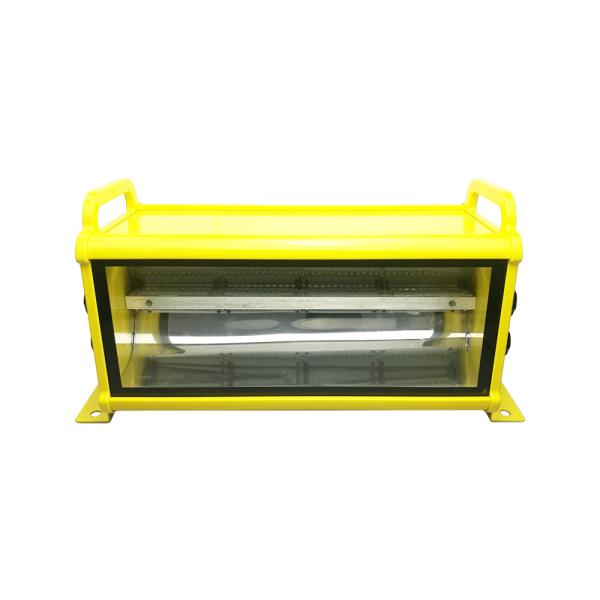

Solar Powered CREE High Intensity LED Aviation Obstruction Light with 3 Different Modes
Solar Powered CREE High Intensity LED Aviation Obstruction Light with 3 Different Modes
Solar Powered CREE High Intensity LED Aviation Obstruction Light with 3 Different Modes
Solar Powered CREE High Intensity LED Aviation Obstruction Light with 3 Different Modes
Solar Powered CREE High Intensity LED Aviation Obstruction Light with 3 Different Modes
Solar Powered CREE High Intensity LED Aviation Obstruction Light with 3 Different Modes
Specifications
Brand Name :
Annhung
Available Colors :
White
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Model Number :
AH-HI-A0
Certification :
FAA,CE,ICAO
Price :
9999
LED Life Experience(hours) :
>100,000
Flash Characteristics :
40-60FPM(40fpm as factory setting)
Supply Ability :
2000pices per month
Delivery Time :
15days
MOQ :
10
Packaging Details :
plywood case
Light Source :
CREE high intensity LED
Place of Origin :
Shenzhen,China
Operation Mode :
24hours operation, 3 different modes
Description
Solar Powered CREE High Intensity LED Aviation Obstruction Light with 3 Different Modes
Product Overview

This high-intensity aviation obstruction light flashes white color 24 hours and is designed for marking the top of obstacles exceeding 150 meters in height. Ultra high intensity CREE LED technology ensures long life experience and optimal performance. The self-designed reflection board enables fewer LEDs to emit brighter light.

System Design
  • Built-in photocell for day/twilight/night operation
  • Surge and lightning protection
Optional Features
  • Alarm contact for remote monitoring
  • Infrared LED for pilot using NVG
  • User adjustable flashing rate (40, 50, 60 flashes/minute)
  • GPS synchronization
  • Solar powered system
Applications

AH-HI-A0 High-intensity light is used on top of high-rise buildings, high chimneys, marking towers (Telecom, GSM, Microwave & TV), high poles, tower cranes, wind turbines, and other obstacles exceeding 150 meters in height. Typically works in conjunction with low and medium intensity lights installed at lower positions.

Technical Specifications
Operating Voltage DC (48VDC) or AC (110V, 240V) or others
Average Power (W) <76W (40fpm)
Body Material Polycarbonate
Weight (kg) 10
Waterproof IP66
Compliance Standards
  • ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 High Intensity Type A Obstruction Light
  • FAA L-856, L-857
Electrical Features
  • CREE ultra high intensity LED as light source for power efficiency
  • Power supply available in DC (48V) or AC (110V, 240V)
Physical Design
  • Unique design with UV protected polycarbonate lens for light convergence and LED power savings
  • UV protection powder coated bright yellow color base for enhanced visibility
  • Base material is powder coated die-casting aluminum with strong corrosion resistance and shock/vibration protection
  • Special valve installed beside the base ensures air circulation while preventing water ingress, maintaining optimal operating temperature
