FAA LED Double Aviation Obstruction Light with 100,000 Hours LED Life and 32.5cd Light Intensity Adjustable Steady/Flashing
FAA LED Double Aviation Obstruction Light with 100,000 Hours LED Life and 32.5cd Light Intensity Adjustable Steady/Flashing
FAA LED Double Aviation Obstruction Light with 100,000 Hours LED Life and 32.5cd Light Intensity Adjustable Steady/Flashing
FAA LED Double Aviation Obstruction Light with 100,000 Hours LED Life and 32.5cd Light Intensity Adjustable Steady/Flashing
FAA LED Double Aviation Obstruction Light with 100,000 Hours LED Life and 32.5cd Light Intensity Adjustable Steady/Flashing
FAA LED Double Aviation Obstruction Light with 100,000 Hours LED Life and 32.5cd Light Intensity Adjustable Steady/Flashing
Specifications
Packaging Details :
1piece in 1 carton
Certification :
Compliant with ICAO,FAA,CAAC
Place of Origin :
China
MOQ :
1
Payment Terms :
Western Union,MoneyGram,T/T
Delivery Time :
3-15days
Light source :
LED
Light intensity :
>32.5cd
Model Number :
AH-LS-B2
Flash rate :
Steady/Flashing(20fpm)adjustable
Brand Name :
Annhumg
Supply Ability :
3000 Piece/Pieces per Month ICAO Annex 14 FAA L-810
Service life of LED :
≥ 100,000hours
Description

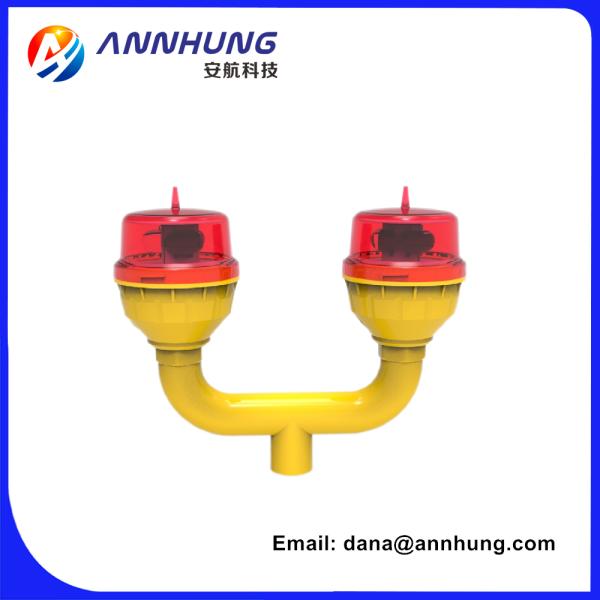

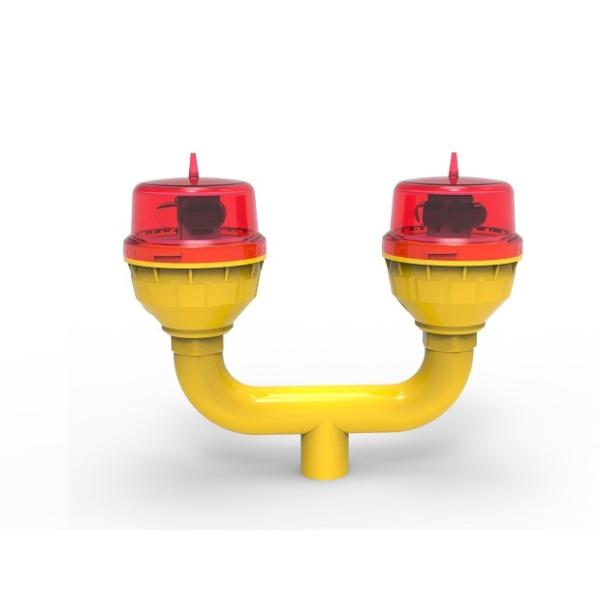

FAA LED Double Aviation Obstruction Light
Aircraft Warning Lights For Buildings
Product Overview
Medium intensity red steady-burning obstruction beacon compliant with ICAO, FAA, and CAAC standards.
Key Advantages
  • PC material with excellent impact protection strength, thermal stability, and high transmittance
  • Bird spike protection against bird droppings
  • Advanced cold LED technology with low power consumption and high brightness
  • Light source service life reaching 100,000 hours
  • LED lasts 15 times longer than traditional incandescent light sources
  • Approximately 96% less power consumption than 116W incandescent lights
  • Major maintenance cost savings with built-in surge protection device
  • Strong corrosion resistance with shock, vibration, and UV protection
  • Dawn to dusk operation with built-in photocell for automatic night operation
  • Free maintenance with 3/4 inch or 1 inch installation size suitable for flag-pole or tower installation
  • Switch for converting between flashing mode and steady-burning mode
Applications
This product series can be used alone on top of high-rise buildings, high chimneys, marking towers (telecom, GSM, microwave & TV), high poles, tower cranes, wind turbines, etc., with heights lower than 45m. For obstacles higher than 45m, these products can be used with medium-intensity or high-intensity obstruction lights to mark potentially hazardous obstructions to air traffic with steady or flashing red safety lights.
FAA LED Double Aviation Obstruction Light with 100,000 Hours LED Life and 32.5cd Light Intensity Adjustable Steady/Flashing
Technical Specifications
Mode AH-LI-B2
Light intensity ≥ 32.5cd
Flash rate Steady-burning mode or Flashing mode (20-60 times/minute)
Light source LED
Service life of LED ≥ 100,000 hours
Operating voltage AC220V (option voltage, eg. AC120V, AC110V, DC48V)
Power consumption 2.5W
Overall size (mm) 254×90×21
Installation size 3/4 inches
Vertical degree ≥ 10°
Horizontal degree 360°
Housing material PC
Base material Die casting aluminum
Weight 1.5Kg
Emitting color Aviation red
Ambient temperature -40℃~+75℃
Wind load 130m/
Protection standard IP66
Product Function
This double light features a photocell for automatic night operation and daytime shutdown. It operates in main-standby configuration where one light works while the other remains on standby. If the main light fails, the standby light automatically activates.
Compliance Standards
Low-intensity Type A or Type B FAA L-810. Low Intensity Double Obstruction Light, ICAO Annex 14 Volume 1, 'Aerodrome Design and Operations' Fourth edition July 2004, table 6.3
Manufacturer Information
Shenzhen Anhang Technology Company Limited is a high-technology enterprise specializing in research, production, sales, and after-sales services for Aviation Obstruction Lights, Aircraft Warning Lights, Helipad Lights, LED Marine Lanterns, LED Bulbs, and Aircraft Warning Spheres. As a domestic market leader in navigation lights and supporter of green and safe emissions, our products are widely used in civil airports, helipads, communication towers, factories, power plant chimneys, television towers, ports, bridges, high-rise buildings, and buoyage in sea.
