Red Obstruction Light, Low Intensity Steady Burning Aviation Lights FAA L810 Single High Altitude Warning Light
Red Obstruction Light, Low Intensity Steady Burning Aviation Lights FAA L810 Single High Altitude Warning Light
Specifications
Supply Ability :
1000
Place of Origin :
China
Operation Mode :
Dusk-to-dawn Automatically as standard. 24hours operation as option
LED Life Experience(hours) :
>100,000
Available Colors :
Red(Other color is optional)
Model Number :
AH-LI-B
Price :
50-80 USD
Horizontal Output(degrees) :
360
Packaging Details :
Carton
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Light Source :
LED
Vertical Divergence(degrees) :
≥10
Delivery Time :
15 days
Intensity(cd) :
10cd (type A), 32.5cd(type B), others optional
Brand Name :
Anhang
Certification :
CE RoHS
Flash Characteristics :
Steady-burning/Flashing(20fpm) adjustable
Description

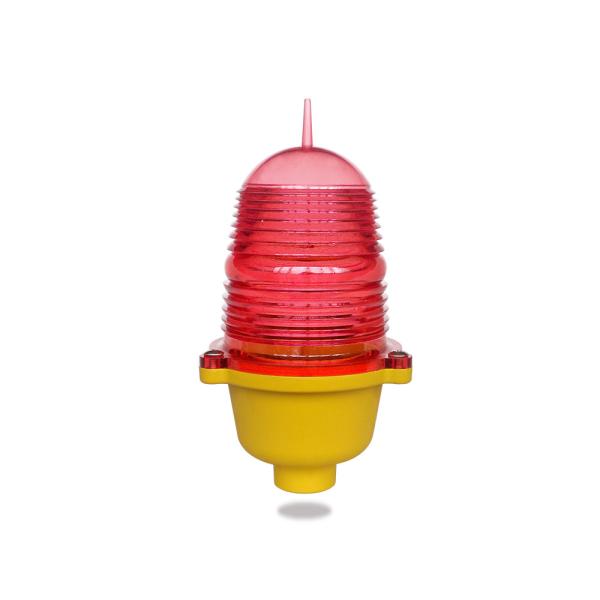

Red Obstruction Light, Low Intensity Steady Burning Aviation Lights FAA L810 Single High Altitude Warning Light

This Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.

Compliance
** ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A / B Obstruction Light
** FAA L-810

** LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
** Power supply available in DC(12-48VDC) or AC(110-240VAC)
Physical
 Bird deterrent spike on top
 Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
 UV protection Powder coated bright yellow color base make better visibility
 Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
 3/4inch or 1inch(optional) thread hole make pole installation easy
System design
* Built-in photocell for day/night operation(dusk to dawn operation)
* Steady/Flashing(20flashes per minute) DIP switch on PCB
* Surge and lightning protection
Optional
 Alarm contact(NO COM NC)for remote monitoring
 Infrared LED for pilot using NVG
 GSM cellphone monitoring
 RS485 communication part for monitoring
Application
AH-LI/B low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.
When obstacle object is higher than 45m, AH-LI-B can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light.

More Product Parameter:

Operating Voltage DC(12-48VDC) or AC(110-240VAC)
Power(W) 3
Circuit Protection Integrated
Body Material Polycarbonate
Base Material Die-casting aluminum
Mounting 3/4 inch pipe thread as standard. 1inch as option
Dimension(mm) 136*136*220
Weight(kg) 0.75
Product Life Expectancy 5 years Plus
Ambient Temperature(℃) -55~70
Humidity 10%-95%
Wind Speed 80m/s
Waterproof IP65
Options Available Flashing rate,Powder-coated color,NVG(Night Vision Goggles) compatible LED
GSM Monitoring, Dry contact alarm(NO COM NC)
