Specifications
Brand Name :
ZHONGHENG
Model Number :
Z828
Certification :
CE/SGS/ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD15000-25000/set
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
300 sets/months
Delivery Time :
25working days
Packaging Details :
Waterproof plastic film cover
Feeding Width :
1200 mm or custom
Models :
glazed tile
Forming Stations :
16
Certificate :
CE
Control system :
PLC control
Machine structure :
350 H beam
Chains :
1 inch
Speed :
10-15 m/min
PLC brand :
panasonic
type :
Glazed Tile Roll Forming Machine
Description

2 - 3 M / Min Speed Glazed Tile Roll Forming Machine for Making Steel Plate

Machine Pictures
2 - 3 M / Min Speed Glazed Tile Roll Forming Machine for Making Steel Plate2 - 3 M / Min Speed Glazed Tile Roll Forming Machine for Making Steel Plate2 - 3 M / Min Speed Glazed Tile Roll Forming Machine for Making Steel Plate
Specifications
The machine can be used to produce 2 different profiles of corrugated steel sheet, e.g. 2 wall &roof sheets, or 1 wall & roof sheet and 1 floor decking sheet. Customer can choose the type.
The main advantages of kexinda double layer corrugated machine price :
•Variable frequency speed control
•Multi-purpose for overlap connection
•Auto power off.

No

Name

Quantity

Remarks

1

Decoiler

1set

Up to customer

2

Main machine

Pre-cutting device

1set

Up to customer

Feeding device

1set

Roll forming system

1set

Post cutting device

1set

Hydraulic system

1set

3

Electric control system

1set

4

Supporter / Automatic Stacker

1set


Flow Chart
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→
Products receiving
2 - 3 M / Min Speed Glazed Tile Roll Forming Machine for Making Steel Plate
Machine Components

Description

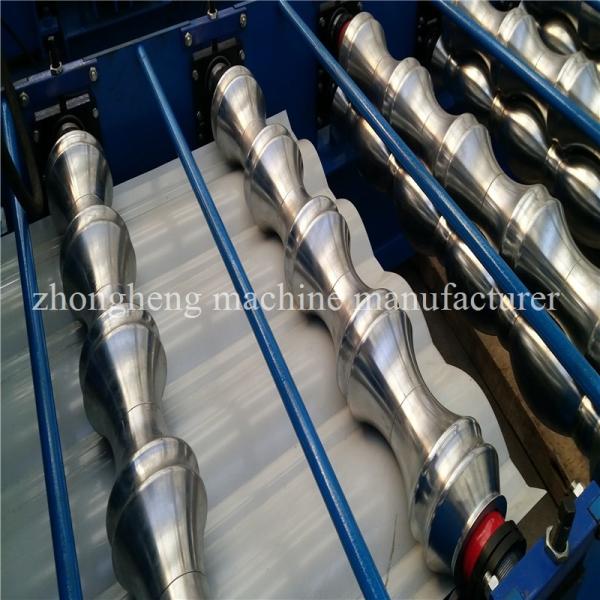

1. Material of rollers:45# steel,roller surfaces polishing, hard plating
The polished surface and the heat treatment towards the molds also can keep the molding plate surface
smooth and not easy to be marked when it is being stamped.
2.We have a professional design team
3.Can also design and manufacture according to customer's requirement

Competitive Advantage:

1. Professional

15 years' rich experience!
a.Specialized in roll forming machine since 1998.
b.Keeping improving the quality.
2. Low price

Save your money from every part!
a. Low labor cost;
b. Convenient transportation;
c. Complete supporting industries.
3. PLC

Ensuring high accuracy and easy to operate!
Full Automatic: Just input length of the sheets and numbers of the piece you need, then the machine will start to work as your order.
4. OEM / ODM

Customers’design, color & logo are also accepted!
Our specialized experts and skilled workers keep devoting their hard working to ensure the machine with high quality.
5. One-Years warranty, whole life service

Keep troubles far away from you!
Within the One-YEAR period, we could supply you the replacement parts free of charge for any damaged parts caused by quality problems .
