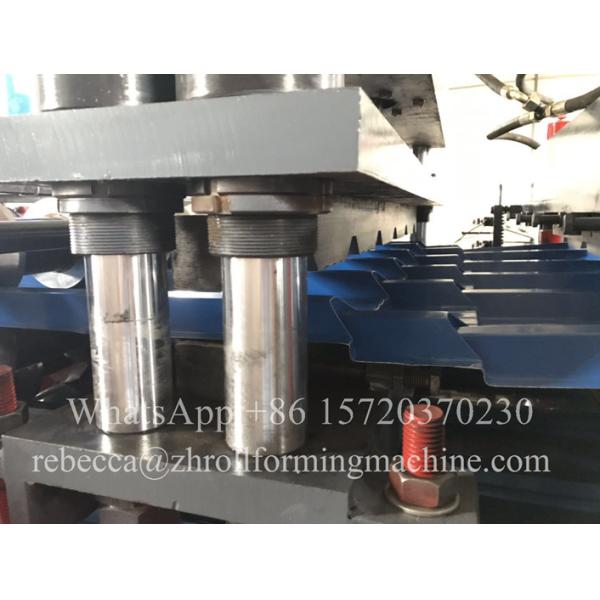

Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
Specifications
Brand Name :
ZH
Model Number :
ZH1000
Certification :
CE / SGS
Place of Origin :
China
MOQ :
1 set
Price :
$12500-18500/set
Payment Terms :
T / T or western Union, L/C
Supply Ability :
120 sets per month
Delivery Time :
35 working days after received your payment
Packaging Details :
Packed in plastic film cover
Tile type :
Colored steel
Usage :
Roof
Production Capacity :
2 - 3 m / min
Warranty :
1 Year
After-sale service provided :
Engineers Available
Welding :
three plus two international standard welding
Cylinda :
Double
Description

Full Automatic Double Glazed Tile Roll Forming Machine With Wave Pressing

Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave PressingFull Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing

Automatic Double Glazed Tile Roll Forming Machine

A good design makes machine performs outstanding.We have 15 year experience R&D devoted to desing your machine.

Basic Information

Certification: SGS, CE, ISO
Condition: New
Customized: Customized
Usage: Roof, Wall
Transmission Method: Electric
Guarantee Time: First Year Free, Lifetime Services
Machine Type: R Panel Roll Forming Machine
Control System: Mitsubishi PLC & Converter
Main Motor: 7.5kw
Power: 380V, 50Hz, 3pH( or Made as Required)
Operation Language: English or as Per Client`S Required
Rollers Material: No.45 Forged Steel with Hard Chrome
Cutter Material: Cr12 Mould Steel with Quench Treatment
Cutting Style: Automatic Hydraulic Cut to Length
Shafts for Rollers: Grand Twice, ID72mm Solid Steel
Export Markets: Global


Parameters of Automatic Double Glazed Tile Roll Forming Machine

Item Specification

Raw Material		 Pre-painted steel coil & galvanized coils
0.3-0.8
235-550
Roller material 45# steel , coated with Chrome
Shaft for rollers Solid shaft with 72mm,processed with cylindrical grinder
Forming speed(m/min) About 20
Output speed(m/min) About 10
Speed adjusting mode Mitsubishi frequency transformer
Roller drive Decelerating motor + Chain drive
Cutting mode automatic hydraulic cut to length
Cutter material Cr12 mould steel
Length measurement Nemicon Encoder
Control mode Mitsubishi PLC
Operating mode Button + Mitsubishi Touch screen
Main motor power(kw) 7.5KW
Total power(kw) 9.9 KW

Components of machine
Decoiler (manual decoiler and hydraulic decoiler for option) 1set
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table (auto. Stacker for option) 1set

We customize your machines! To customize machine, we would love to know:


1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler / stacker?

Full Automatic Double Glazed Roof Tile Roll Forming Machine With Wave PressingFull Automatic Double Glazed Roof Tile Roll Forming Machine With Wave Pressing
