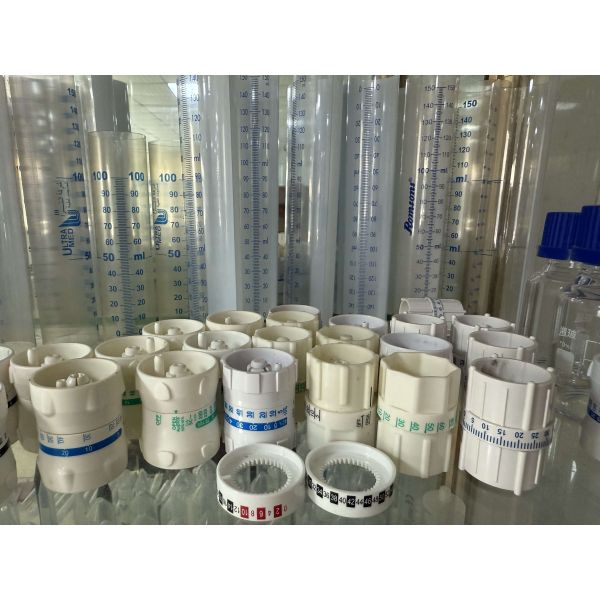

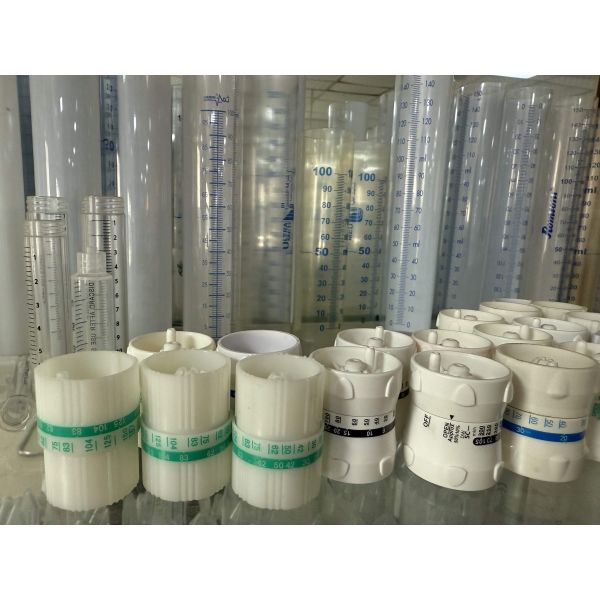

This Model Is Specially Designed for Medical Industry Product Printing

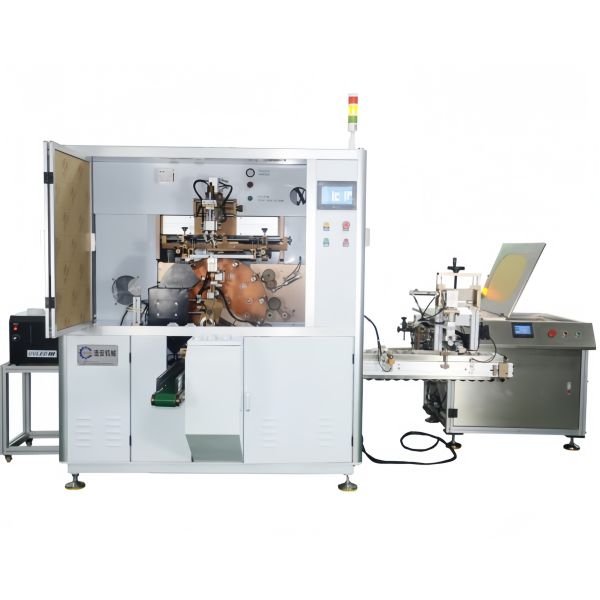

This is a non-standard customized machine, such as the automatic screen printing machine for micro-regulators. It can use LED UV eco-friendly ink.

The machine adopts Panasonic PLC control system, Omron electric components, SMC solenoid valves, Taiwan TEXCO high-precision divider, Italian motor, full mechanical transmission system and mechanical pre-positioning system.

It features high printing speed, stable and reliable quality, and convenient & fast debugging.

1. The operator pours products into the hoister, and automatic material sorting is realized (vibrating bowl for packaging).
2. Equipped with product direction detection system and automatic product reversing function.
3. The manipulator push rod automatically loads products onto the fixture rods.
4. Dual positioning system: mechanical pre-positioning (1st stage) + printing precise positioning (2nd stage), achieving high-precision positioning.
5. The turntable drive mainly combines a divider with an encoder, realizing accurate indexing and coordinating the motion sequence of each mechanism, making the machine run more stably, efficiently and safely.
6. LED UV curing system, eco-friendly, energy-saving and power-efficient.
7. After screen printing, the manipulator automatically unloads products and places them on the output conveyor belt.

1. 7-inch touch screen (Taiwan)
2. Panasonic PLC (Japan)
3. Turntable driven by TEXCO divider (Taiwan)
4. Full mechanical linkage printing mechanism with German photoelectric sensors
5. Left & right ball screws for smoother operation (Japan)
6. 12-axis tube holder with precision NSK bearings and imported hard shafts (Japan)
7. Main drive: Italy Modoli reducer with motor, controlled by Omron inverter (Italy & Japan)
8. Mechanical operation for product loading & unloading, more stable and accurate (Japan)
9. Ball screws and guide rails adopt Japan THK brand, higher precision & longer service life
10. LED UV lamp for curing, eco-friendly, energy-saving & power-efficient (HAOAN)
11. Pneumatic system ensures stable printing quality (Japan SMC / Taiwan AIRTAC)
12. Reasonable overall structure design and mechanical positioning mode for stable & high-efficiency production
13. High-quality Japanese gears and racks
14. Printing positioning mechanism driven by main motor and cam, perfectly matched with host speed without separate adjustment.

    (Cylinder speed needs to be adjusted to match host speed for extending & retracting angles; air supply fluctuation may cause collision risk.)

Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industries such as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.

We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.

• Q. How long is the machine's warranty period?

  A.We offer a 2-year warranty and long-term service

• Q. What technical support services are provided after purchase?

  A.We provide on-site installation service and professional engineer training

• Q. How will you help us resolve after-sales repair issues if the machine malfunctions?

  A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary

• Q. What inks does the machine support?

  A.We use UV-based environmentally friendly inks, imported environmentally friendly inks

• Q.What certifications can you provide?

  A.We have ISO9001, SGS, and RoHS certifications
