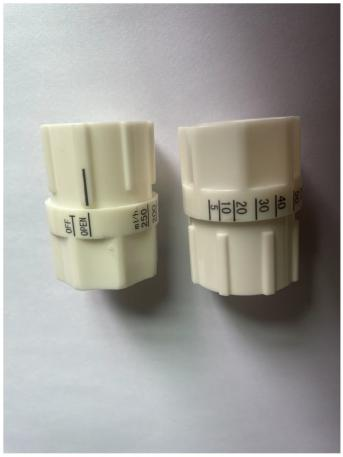

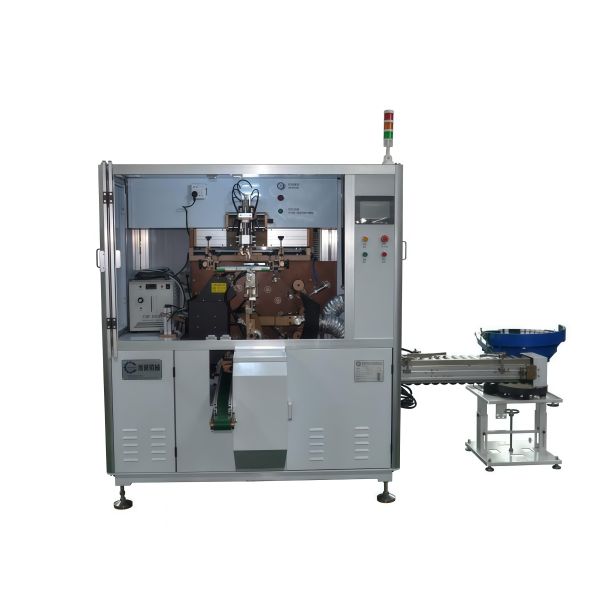

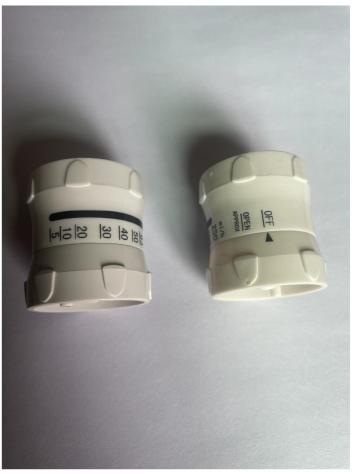

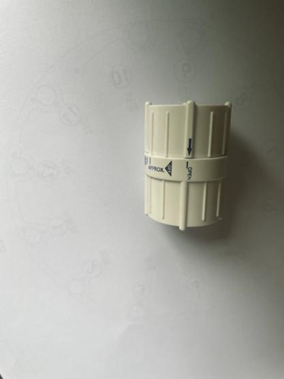

This model is specifically designed for medical industry product printing, rather than customized machines such as micro regulator fully automatic screen printing machines. It can use LED UV environmentally friendly ink, and adopts Panasonic PLC control system, Omron Electric, SMC solenoid valve, Taiwan Deshi high-precision splitter, Italian motor, fully mechanical transmission system, mechanical pre-positioning system. It features fast printing speed, stable and reliable quality, as well as convenient and quick debugging.

1. The operator pours the product into the vibrating tray for automatic feeding (the vibrating tray is used for packaging).
2. Equipped with a product direction detection system with automatic product turning function to ensure correct printing orientation.
3. The robotic arm push rod automatically pushes the product onto the fixture rod, reducing manual operation and improving efficiency.
4. Adopt dual positioning structure: mechanical pre-positioning (1) and printing positioning (2), achieving high-precision positioning effect.
5. The rotary drive mainly uses a combination of dividers and encoders, which can accurately divide and allocate the motion timing of each mechanism, making the machine run more stably, efficiently and safely.
6. Adopt LED UV curing technology, which is environmentally friendly, energy-saving and power-saving.

After the product screen printing is completed, the robotic arm automatically unloads the material and places it on the discharge conveyor belt, forming a fully automatic production process.

1. 7-inch touch screen (Taiwan), easy to operate and debug.
2. PLC: Panasonic (Japan), ensuring stable and reliable control performance.
3. Turntable operation: driven by a divider (Taiwan Deshi), realizing precise rotation and positioning.
4. Printing mechanism: fully mechanically linked, equipped with optoelectronics (Germany), ensuring smooth and accurate printing action.
5. Left and right ball screw (Japan), running more smoothly and improving the stability of the printing mechanism.
6. 12-shaft tube seat: composed of tight NSK bearings and imported hard shafts (Japan), with high durability and precision.
7. Main drive: equipped with Italian Modori reducer and motor, controlled by Omron frequency converter (Italy and Japan), realizing stepless speed regulation and stable power output.
8. Product loading and unloading machine: mechanical operation, smoother and more accurate (Japan), reducing product damage during loading and unloading.
9. Ball screws and guide rails: both are Japanese THK brand, with higher precision and longer service life, adapting to long-term continuous production.
10. Curing system: LED UV lamps (HAOAN), environmental protection and energy saving.
11. Pneumatic system: SMC (Japan) / AirTAC (Taiwan), making the printing quality more stable.
12. Structural design: the main structural design is more reasonable, and the mechanical positioning method can realize stable and efficient production.
13. Gears and racks: high-quality products from Japan, ensuring smooth transmission and long service life.
14. Printing positioning mechanism: driven by the main motor and cam, perfectly matching the speed of the host without separate adjustment (Note: The speed of the cylinder should be adjusted according to the speed of the main engine, and the retraction angle should be adjusted accordingly; there is a possibility of collision due to the influence of the air source).

Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industries such as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.

We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.

• Q. How long is the machine's warranty period?

  A.We offer a 2-year warranty and long-term service

• Q. What technical support services are provided after purchase?

  A.We provide on-site installation service and professional engineer training

• Q. How will you help us resolve after-sales repair issues if the machine malfunctions?

  A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary

• Q. What inks does the machine support?

  A.We use UV-based environmentally friendly inks, imported environmentally friendly inks

• Q.What certifications can you provide?

  A.We have ISO9001, SGS, and RoHS certifications
