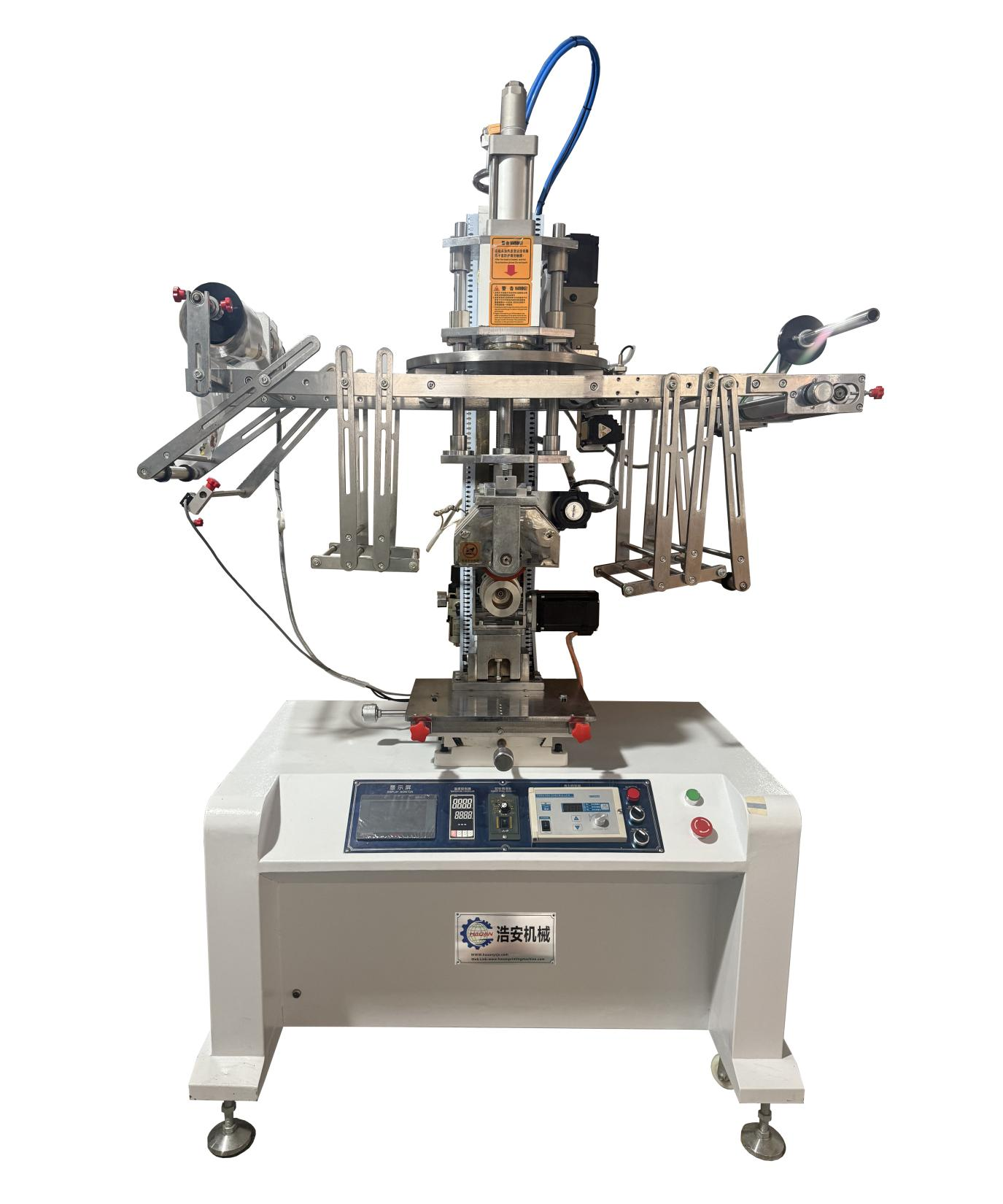

Servo Control Heat Transfer Printing Machine Thermal Transfer Machine For Cup

I. Main Functions & Applications

Semi-automatic thermal transfer printing for cups: manual cup loading, automatic positioning, automatic in-place detection, automatic film positioning, and one-button start. Operated by a single worker, greatly improving production efficiency and reducing labor costs.

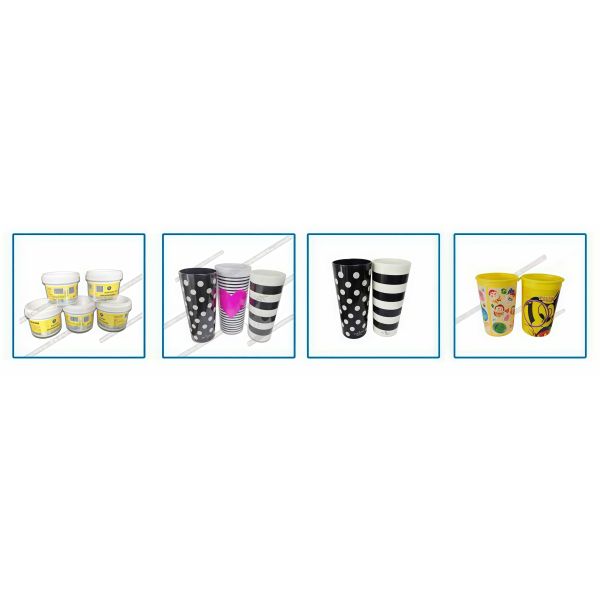

II. Main Products & Specifications

360° thermal transfer printing on cup surfaces. Max printing area: adjustable up to Height 200mm * Diameter 250mm.

III. Production Flow

1. Manually install the printing film on the material rack and place the cup on the fixture.
2. Automatic positioning & in-place detection.
3. Press the start button.
4. Heating head lowers to complete 360° thermal transfer.
5. Heating head rises and automatic film stripping.
6. Manually unload the printed cup and load a new blank cup for the next cycle.

IV. Main Technical Parameters

V. Key Equipment Configurations

1. Heavy-duty reinforced thick steel frame with reinforced welding for enhanced durability.
2. Automotive-grade high-temperature baking paint, eco-friendly, non-toxic, fade-resistant and premium appearance.
3. 304 stainless steel screws and HCH bearings for stable and long-lasting performance.
4. High-hardness aluminum alloy, precision CNC machined with silver oxidation sandblasting finish.
5. Intelligent control system with multi-group parameter storage, touch screen HMI for simple operation.
6. Dual-temperature control heating design ensures stable ink adhesion.
7. Full servo control for machine and fixture movement, ensuring stable motion and effectively preventing wrinkling.
8. Automatic cup printing positioning with imported Omron optical fiber sensor.
9. Adjustable printing temperature, pressure, speed, delay time and heating head height to meet various printing requirements.
10. Magnetic powder tension control and CNC motor material receiving for stable film tension and high positioning accuracy.
11. Automatic material feeding & receiving system with imported Taiwan sensing switches for accurate film positioning.
12. Imported control buttons for long service life and high sensitivity.
13. Taiwan Taibang motor for stable overall operation.
14. External foot pedal switch, supporting manual / automatic / foot pedal operation modes for higher efficiency.

About us

Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industrys suchs as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.

We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.

FAQ

• Q. How long is the machine's warranty period? A.We offer a 2-year warranty and long-term service
• Q. What technical support services are provided after purchase? A.We provide on-site installation service and professional engineer training
• Q. How will you help us resolve after-sales repair issues if the machine malfunctions? A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary
• Q. What inks does the machine support? A.We use UV-based environmentally friendly inks, imported environmentally friendly inks
• Q.What certifications can you provide? A.We have ISO9001, SGS, and RoHS certifications
