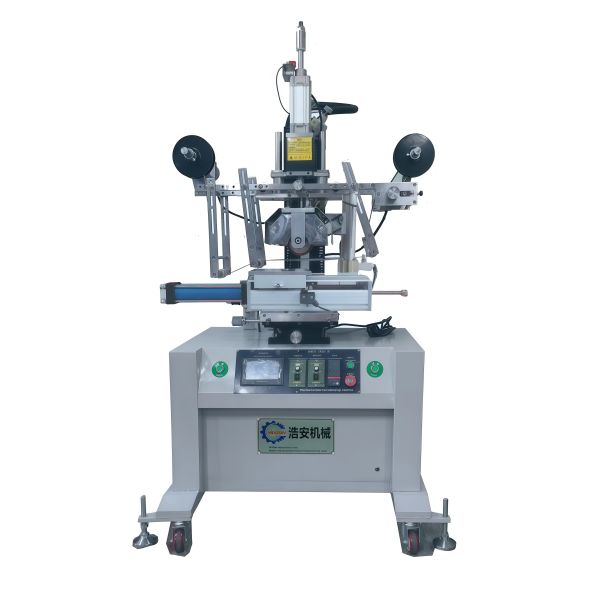

1. Worktable: Servo motor (Delta)
2. Touch screen: Xinje
3. PLC control: Xinje
4. Stepping paper collection
5. Sliding table stroke (forward & backward): 200 mm

• Max pressure: 300 kg
• Voltage: 220 V
• Max power: 2.5 kW
• Hot stamping size: 200 mm
• Machine stroke: 250 mm
• Output: 4500–6000 cycles / 10 hours
• Machine dimensions: L1000 × W850 × H1850 mm

1. Steel structure body with reinforced column welding for high durability and stability.
2. Automotive-grade paint with high-temperature baking, eco-friendly, non-toxic, fade-resistant and elegant appearance.
3. 304 stainless steel screws and Japan NSK bearings for strong and reliable connection.
4. High-hardness aluminum parts, precision-processed by large CNC machining center.
5. CNC PLC control system supports intelligent storage of multiple groups of product parameters for quick recall; user-friendly touch screen HMI for easy operation.
6. Independent constant temperature control with integrated heating tube.
7. High-precision CNC motor for material receiving, equipped with tension magnetic powder system for real-time film stability monitoring; dual-speed film collection and high-precision electric eye positioning.
8. Adjustable hot stamping temperature, pressure and speed; adjustable stamping delay and paper winding delay. Driven by Taiwan Taibang motor governor for stable running.
9. Original ATP switches and buttons for long service life and high sensitivity.
10. Automatic material feeding & receiving structure, no manual film pasting needed, greatly improving production efficiency.
11. External foot switch, with manual / automatic / foot pedal three operation modes for high efficiency.
12. Left-right push controlled by servo motor for accurate positioning.

Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industrys suchs as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.

We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.

• Q. How long is the machine's warranty period? A.We offer a 2-year warranty and long-term service
• Q. What technical support services are provided after purchase? A.We provide on-site installation service and professional engineer training
• Q. How will you help us resolve after-sales repair issues if the machine malfunctions? A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary
• Q. What inks does the machine support? A.We use UV-based environmentally friendly inks, imported environmentally friendly inks
• Q.What certifications can you provide? A.We have ISO9001, SGS, and RoHS certifications
