2KW Flatbed Screen Printing Machine Adjustable Pressure For Flat Surfaces
2KW Flatbed Screen Printing Machine Adjustable Pressure For Flat Surfaces
2KW Flatbed Screen Printing Machine Adjustable Pressure For Flat Surfaces
2KW Flatbed Screen Printing Machine Adjustable Pressure For Flat Surfaces
Specifications
Brand Name :
HAOAN
Model Number :
HA-500TSF
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Printing Table Size :
500*600mm
Printing Area :
350*500mm
Printing Speed :
20–25 cycles/min (depends on product size)
Max. Frame Size :
500*850mm
Power :
220V 50–60Hz 2KW
Air Pressure :
4–6KG
Description

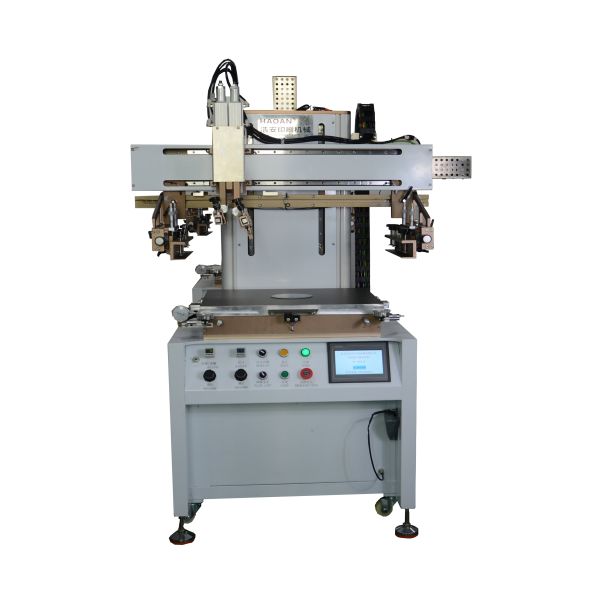

2KW Flatbed Screen Printing Machine with Adjustable Pressure
This flatbed screen printing machine offers smooth screen movement and adjustable pressure for high-quality prints on flat surfaces.
Machine Features
This advanced machine utilizes PLC and high-performance touch screen technology for intelligent control of all operations. It meets printing requirements for flat products and is compatible with containers made of plastic, glass, metal, and other materials.
  • Left-right servo motor control (Xinje system, adjustable stroke)
  • Up-down servo motor control (Xinje system, adjustable stroke)
  • Vacuum suction platform with adjustable pressure
  • Printing head scraper cylinder (AirTAC) with guide rail (QYMT)
  • High running precision for exquisite printing patterns
Technical Specifications
Item Specification / Size Brand Origin
1. Touch Screen 7-inch Kunlun Tongtai China
2. PLC 3SA-30MT Mitsubishi Japan
3. Left-right Drive Servo Motor 750W Xinje China
4. Up-down Drive Servo Motor 750W Xinje China
5. Vacuum Suction Platform 500*600mm Haoan China
6. Linear Guide HGW15CC QYMT Taiwan, China
7. Solenoid Valve DC24V AirTAC Taiwan, China
8. Printing Table Size 500*600mm -- --
9. Printing Area 350*500mm -- --
10. Max. Workpiece Thickness ≤50mm -- --
11. Printing Speed 20-25 cycles/min (depends on product size) -- --
12. Max. Frame Size 500*850mm -- --
13. Machine Dimensions L850*W900*H1700mm -- --
14. Power 220V 50-60Hz 2KW -- --
15. Air Pressure 4-6KG -- --
16. Machine Weight 200kg -- --
2KW Flatbed Screen Printing Machine Adjustable Pressure For Flat Surfaces 2KW Flatbed Screen Printing Machine Adjustable Pressure For Flat Surfaces
About Hao'an Printing Machinery
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment designed to meet printing requirements for various shapes and materials.
Our machinery is widely used across multiple industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories. We export to numerous countries and regions including Europe, the United States, South Korea, the Middle East, South Africa, and Mexico, earning high trust from domestic and international customers.
We adhere to five core principles: efficiency, excellence, energy conservation, integrity, and win-win cooperation. Our strong R&D team can customize machinery according to specific customer requirements and continuously innovate to make products more intelligent and efficient. Beyond equipment supply, we provide professional technical training and comprehensive support services.
2KW Flatbed Screen Printing Machine Adjustable Pressure For Flat Surfaces
Packaging and Shipping
2KW Flatbed Screen Printing Machine Adjustable Pressure For Flat Surfaces
Frequently Asked Questions
  • Q. How long is the machine's warranty period?
    A. We offer a 2-year warranty and long-term service.
  • Q. What technical support services are provided after purchase?
    A. We provide on-site installation service and professional engineer training.
  • Q. How will you help us resolve after-sales repair issues if the machine malfunctions?
    A. In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary.
  • Q. What inks does the machine support?
    A. We use UV-based environmentally friendly inks and imported environmentally friendly inks.
  • Q. What certifications can you provide?
    A. We have ISO9001, SGS, and RoHS certifications.
