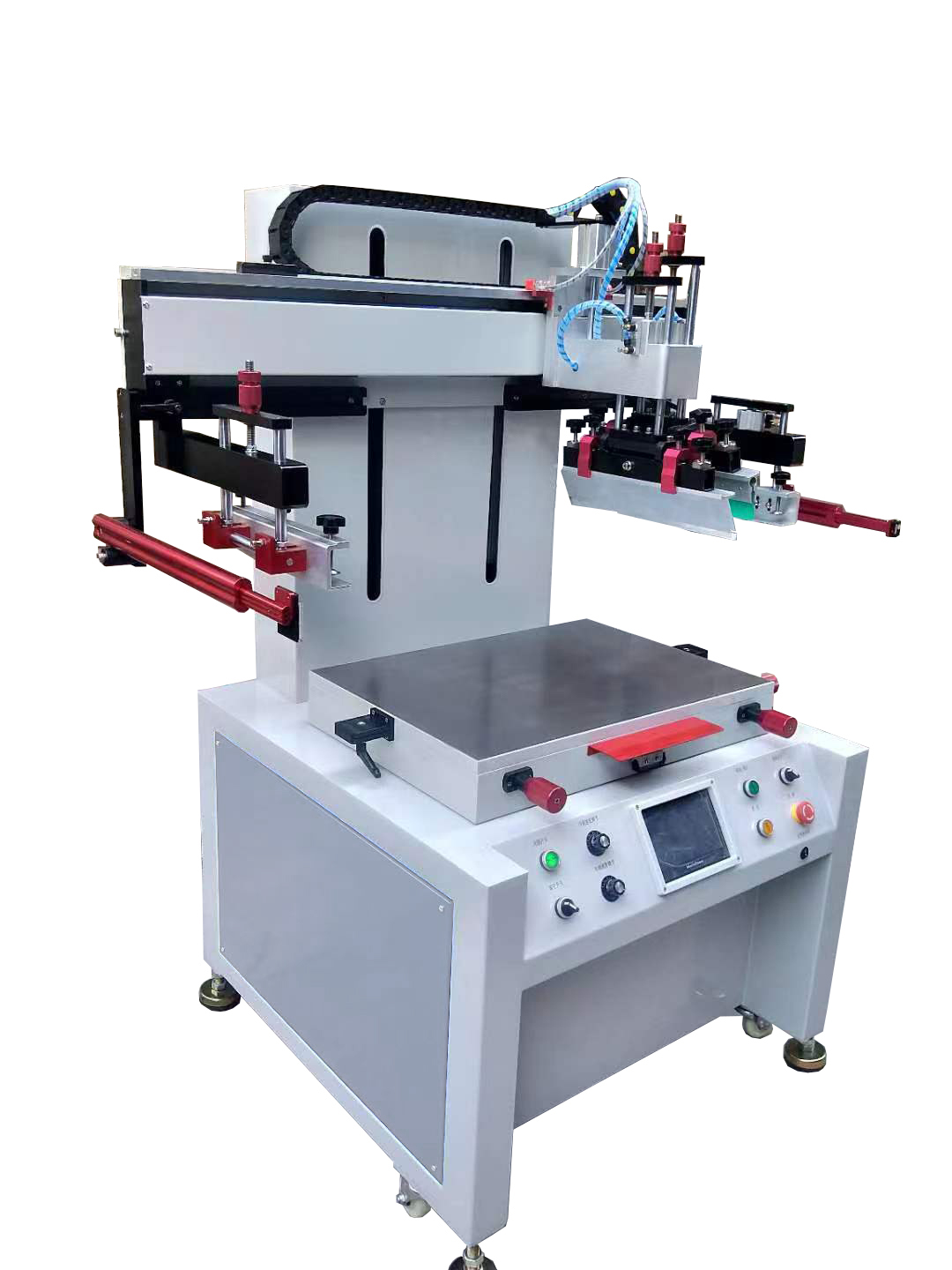

Semi Automatic Flat Screen Printing Machine For Toy Electrical Appliance Printing
Semi Automatic Flat Screen Printing Machine For Toy Electrical Appliance Printing
Semi Automatic Flat Screen Printing Machine For Toy Electrical Appliance Printing
Semi Automatic Flat Screen Printing Machine For Toy Electrical Appliance Printing
Specifications
Brand Name :
HAOAN
Model Number :
HA-4060AS
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Printing color :
1 color
Printing speed :
800–1000 cycles/hour
Max. printing area :
400mm × 600mm
Workpiece height :
0mm–180mm
Power supply :
220VAC 50/60Hz
Air supply :
6 bar
Description
HA-4060AS Semi-Automatic Flat Screen Printing Machine
Versatile flat screen printer suitable for various industries including daily necessities, toys, electronics, electrical appliances, plastics, leather, metal, glass, light industry, and food packaging.
Key Features
  • All motions controlled by motor with electric eye induction for high precision and stable performance
  • Worktable supports fine adjustment in left-right, forward-backward and angle directions
  • Automatic head-lifting function for easier screen frame removal and cleaning
  • Guided structure for left-right squeegee movement ensuring smooth operation
  • Guided structure for screen frame lifting providing high accuracy
  • Automatic screen lifting function for improved printing quality
  • Squeegee movement driven by stepping motor and synchronous belt
  • Automatic air suction function ideal for thin workpieces
  • 7-inch control screen with intuitive interface
  • Two preset working modes: single-cycle and fully automatic printing
  • High-quality electrical components for stable and durable performance
  • Special shock-absorbing design for extremely stable operation
  • Sensitive touch control panel for fast response and convenient operation
Technical Specifications
Printing Color1 color
Printing Speed800–1000 pcs/hour
Worktable Size500 mm * 700 mm
Max. Printing Area400 mm * 600 mm
Workpiece Height0–180 mm
Screen Frame Lifting Stroke200 mm
Squeegee Left-Right Stroke600 mm
Control System7-inch touch screen
Power Supply220 VAC, 50/60 Hz
Connected Load2000 W
Air Supply6 bar
Machine Dimensions1000 mm * 1300 mm * 1700 mm
WeightApprox. 450 Kg
Semi Automatic Flat Screen Printing Machine For Toy Electrical Appliance Printing
About Dongguan Hao'an Printing Machinery
Established in 2016, we are professional manufacturers of automated printing equipment including silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment. Our solutions meet printing requirements for various shapes and materials across industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories.
Our machinery is exported to Europe, the United States, South Korea, the Middle East, South Africa, Mexico, and other regions, earning high trust from domestic and international customers.
We adhere to five core concepts: efficiency, excellence, energy conservation, integrity, and win-win. Our strong R&D team customizes machinery according to customer requirements and continuously innovates to make products intelligent and efficient. We provide professional technical training and comprehensive support services.
Semi Automatic Flat Screen Printing Machine For Toy Electrical Appliance Printing
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications.
