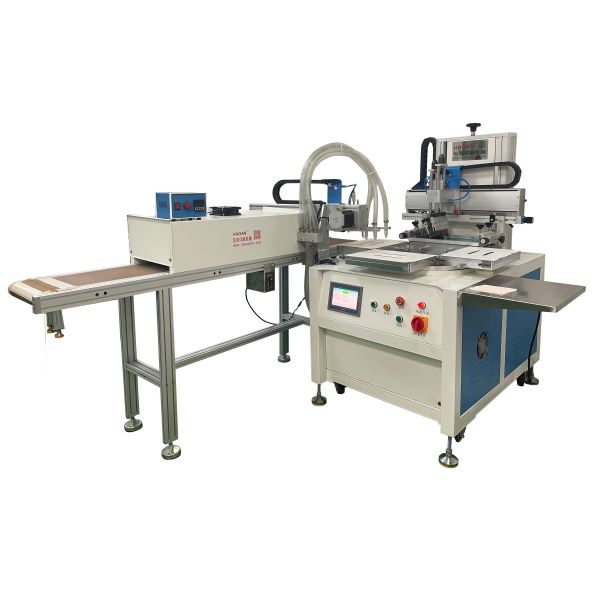

This screen printing machine adopts advanced PLC control and digital human-machine interface operation.

The turntable is driven by a high-precision cam indexer, featuring high repeat positioning accuracy, precise positioning, and high speed.

The automatic unloading manipulator is driven by a stepper motor or servo motor with precision linear guide rails, ensuring high speed and excellent stability.

The machine supports multiple function settings to achieve data-based, standardized, and user-friendly operation.

With an innovative structural design and top-level servo drive and guidance systems, the machine runs fast, smoothly, and stably with precise positioning.

It saves energy, realizes automatic unloading, reduces labor demand, and guarantees stable printing quality.

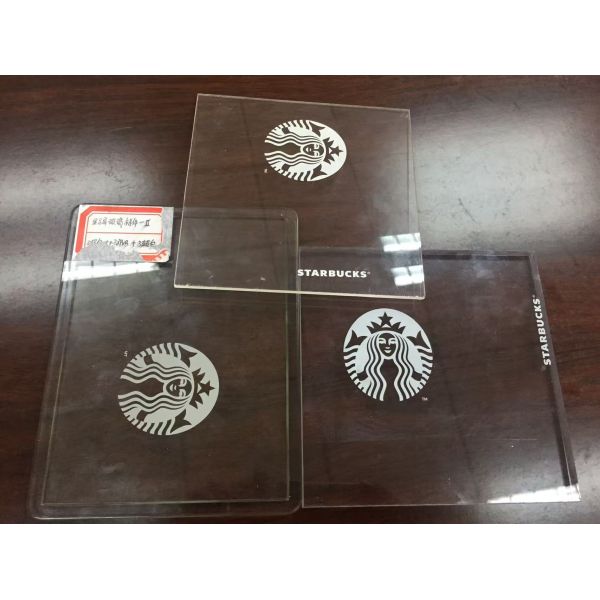

1. Maximum printing area: 220mm * 300mm
2. Maximum screen frame size: 350mm * 500mm
3. Registration accuracy: ±0.03mm
4. Workpiece height: 0~80mm
5. Working table area: 250mm * 350mm
6. Turntable diameter: Ø600mm
7. Turntable drive: Taiwan TECO
8. Cam indexer: Taiwan Dex
9. Screen lifting drive: Servo motor or cylinder (optional)
10. Printing head drive: Stepper motor or servo drive (optional)
11. Manipulator left-right drive: Stepper motor or servo drive (optional)
12. Guide rail: HIWIN
13. Clamping manipulator up-down drive: SMC
14. Clamping manipulator lifting slide: SMC
15. Squeegee cylinder: SMC
16. Ink knife cylinder: SMC
17. Air exchange cylinder: SMC
18. Working air pressure: 0.4~0.6 Mpa
19. Working cycle: About 3 seconds
20. Positioning mode: Automatic unloading with customized positioning
21. Machine structure: Modular combined structure
22. Capacity: About 2200 PCS per hour
23. Machine weight: 500 Kg
24. Power supply: 220V, 50/60Hz, 1.5KW

1. Vertical lifting design with precision guide rails for fast, stable, and quiet lifting; easy maintenance, durable for long hours of operation, and high stability.
2. Innovative structure with strong yet lightweight design for energy saving.
3. Left-right printing movement driven by stepper motor or servo motor with precision guide rails, ensuring fast, smooth, stable operation and high positioning accuracy.
4. Simple and fast screen changing, frame mounting, and positioning; button operation greatly reduces setup time and improves productivity.
5. Button-type control panel with multiple function settings to achieve data-based, standardized, and humanized operation.
6. Equipped with emergency stop switch, safety return, and automatic error detection alarm for complete safety protection.
7. Standard equipped with oven for faster ink curing and higher efficiency.

• Frame: Q235A + high-quality square tube
• Cover panels: High-quality cold-rolled plate
• Other parts: Cast aluminum & alloy aluminum

• Up-down drive: Cylinder (Taiwan-funded)
• Guide: HIWIN guide rail

• Left-right drive: Stepper motor or servo motor (optional)
• Guide: HIWIN guide rail

• Squeegee drive: SMC cylinder
• Guide: Cross roller guide rail (Taiwan-funded)

• Drive: Stepper motor or servo motor (optional)
• Guide: HIWIN guide rail

• Control circuit: Mitsubishi PLC
• Pneumatic control: SMC solenoid valve

1. The manipulator is driven left and right by a stepper motor or servo motor.
2. The clamping device lifting is driven by SMC cylinder.
3. Adopts precision linear guide rails for stable, smooth movement and low noise.

Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industrys suchs as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.

We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.

• Q. How long is the machine's warranty period? A.We offer a 2-year warranty and long-term service
• Q. What technical support services are provided after purchase? A.We provide on-site installation service and professional engineer training
• Q. How will you help us resolve after-sales repair issues if the machine malfunctions? A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary
• Q. What inks does the machine support? A.We use UV-based environmentally friendly inks, imported environmentally friendly inks
• Q.What certifications can you provide? A.We have ISO9001, SGS, and RoHS certifications
