Semi Automatic Servo Plane Screen Printer Machine For Daily Use Electronics
Semi Automatic Servo Plane Screen Printer Machine For Daily Use Electronics
Semi Automatic Servo Plane Screen Printer Machine For Daily Use Electronics
Semi Automatic Servo Plane Screen Printer Machine For Daily Use Electronics
Semi Automatic Servo Plane Screen Printer Machine For Daily Use Electronics
Semi Automatic Servo Plane Screen Printer Machine For Daily Use Electronics
Specifications
Brand Name :
HAOAN
Model Number :
HA-500SPE
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Printing Color :
1 Color
Printing Speed :
800-1000 times/hour
Maximum Printing Area :
500mm × 700mm
Workpiece Height :
0mm - 180mm
Power Supply Voltage :
220VAC 50/60Hz
Pneumatic Supply :
6bar
Description

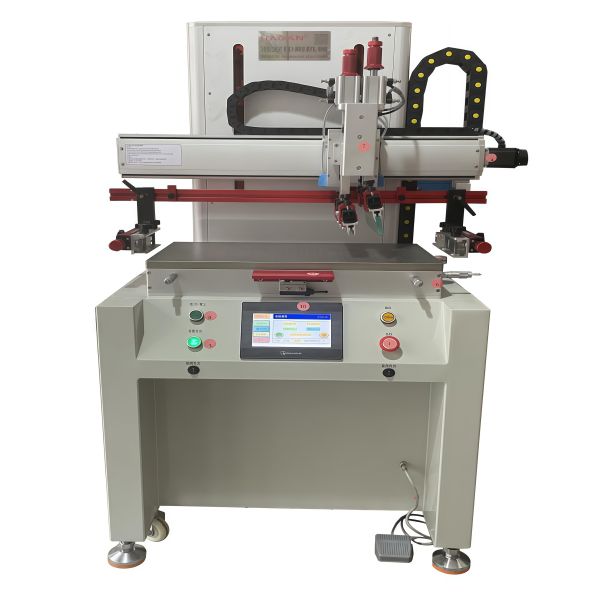

HA-500SPE Semi Automatic Servo Plane Screen Printer Machine
The HA-500SPE flat screen printer is a high-quality general-purpose screen printing machine designed for daily use electronics and various industrial applications. This precision equipment combines advanced servo technology with user-friendly operation to deliver exceptional printing performance across multiple industries including daily necessities, toys, electronics, electrical appliances, plastics, leather, metal, glass, and food packaging.
Advanced Features
  • Full servo motor control with electric eye induction for precise positioning
  • Multi-directional workbench fine-tuning (left-right, front-back, angle) with stable positioning
  • Automatic head-start function for easy screen frame removal and cleaning
  • Servo-controlled scraper movement with guide rail structure for smooth operation
  • High-precision servo-controlled screen frame lifting with guide rail movement
  • Automatic screen-lifting function for enhanced printing quality
  • Stepping motor and synchronous belt drive for stable scraper operation
  • Automatic air suction system suitable for thin workpiece printing
  • Dual control system options: MCU control or PLC control with 7-inch screen
  • Two preset functional programs (single-cycle and fully automatic printing)
  • Premium Japanese SMC electrical components for durability and reliability
  • Special shock absorption device for extremely stable machine operation
  • Sensitive light touch control panel with quick response and easy operation
Technical Specifications
Parameter Specification
Printing Color 1 Color
Printing Speed 800-1000 times/hour
Workbench Area 600mm × 800mm
Maximum Printing Area 500mm × 700mm
Workpiece Height 0mm - 180mm
Screen Frame Lifting Stroke 200mm
Scraper Left-Right Stroke 700mm
Control Voltage 12VDC
Power Supply 220VAC 50/60Hz
Connection Load 2000W
Pneumatic Supply 6bar
Machine Dimensions 1200mm × 1400mm × 1720mm
Weight Approx. 400Kg
Product Images
Semi Automatic Servo Plane Screen Printer Machine For Daily Use Electronics Semi Automatic Servo Plane Screen Printer Machine For Daily Use Electronics Semi Automatic Servo Plane Screen Printer Machine For Daily Use Electronics
Manufacturer Profile
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment established in 2016. We specialize in silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment capable of meeting diverse printing requirements for various shapes and materials. Our machinery serves multiple industries including cosmetics, daily necessities, food, medical supplies, and automotive accessories, with exports to Europe, United States, South Korea, Middle East, South Africa, Mexico, and other regions.
We adhere to the core principles of "efficiency, excellence, energy conservation, integrity, and win-win" partnerships. Our strong R&D team provides customized technical solutions and continues to innovate for intelligent, efficient products. Beyond equipment supply, we offer comprehensive technical training and support services to ensure customer success.
Semi Automatic Servo Plane Screen Printer Machine For Daily Use Electronics
Packaging & Shipping
Semi Automatic Servo Plane Screen Printer Machine For Daily Use Electronics Semi Automatic Servo Plane Screen Printer Machine For Daily Use Electronics
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we provide video and email communication support, with on-site service available when necessary.
What inks does the machine support?
Our machines support UV-based environmentally friendly inks and imported eco-friendly ink formulations.
What certifications can you provide?
We hold ISO9001, SGS, and RoHS certifications ensuring quality and environmental compliance.
