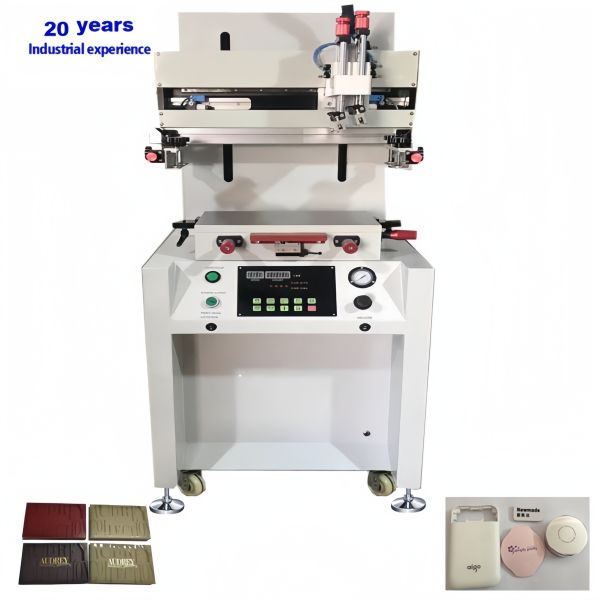

Semi Automatic Flatbed Screen Printing Machine For Plastics Metal Food Packaging
Semi Automatic Flatbed Screen Printing Machine For Plastics Metal Food Packaging
Specifications
Brand Name :
HAOAN
Model Number :
HA-300
Certification :
ISO9001,SGS, RoHS
Place of Origin :
Guangdong,China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30set/month
Delivery Time :
According To Customer Needs
Packaging Details :
Wooden Box
Printing color :
1 color
Printing speed :
1200–1500 cycles/hour
Worktable size :
300mm × 400mm
Max. printing area :
200mm × 300mm
Workpiece height :
0mm–180mm
Power supply :
220VAC, 50/60Hz
Description
Semi Automatic Flatbed Screen Printing Machine For Plastics Metal Food Packaging
Versatile Semi Automatic Flatbed Screen Printing Machine For Electronics Plastics Metal And Food Packaging Industries
The HA-300 is a versatile flat screen printing machine widely used in daily necessities, toys, electronics, electrical appliances, plastics, leather, metal, glass, light industry, food packaging and many other industries.
Key Features
  • All positions controlled by cylinders with electric eye induction for high positioning accuracy
  • Worktable allows fine adjustment in left-right, front-back and angle directions
  • Automatic frame lifting function for easier screen frame removal and cleaning
  • Left-right squeegee movement uses guide rail structure for smooth operation
  • Screen frame lifting with guide rail structure for high precision
  • Automatic screen release function for superior printing quality
  • Squeegee movement guided by precision rails for enhanced stability
  • Automatic air suction function suitable for thin workpiece printing
  • Two control system options: MCU control
  • Two pre-set function modes: single-cycle printing and fully automatic printing
  • Equipped with SMC (Japan) electrical components for reliable performance
  • Special shock absorption device ensures stable machine operation
  • Sensitive touch control panel for fast response and convenient operation
Technical Specifications
Printing Color1 color
Printing Speed1200-1500 cycles/hour
Worktable Size300mm * 400mm
Max Printing Area200mm * 300mm
Workpiece Height0mm-180mm
Screen Frame Lifting Stroke200mm
Squeegee Stroke300mm
Drive SystemPneumatic cylinder
Power Supply220VAC, 50/60Hz
Air Supply6bar
Machine Dimensions750mm * 950mm * 1500mm
Net WeightApprox. 180Kg
Semi Automatic Flatbed Screen Printing Machine For Plastics Metal Food Packaging
Safety Features
  • Complies with latest engineering standards for high reliability
  • Safety light curtain: machine stops immediately if interrupted
  • Emergency stop switch for immediate power cutoff
Operation Notes
  • Disconnect power and air supply before moving or repairing
  • Follow specified procedures when adjusting or cleaning ink scraper
  • Maintain fire prevention awareness and keep fire-fighting equipment on site
About Manufacturer
Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Our product range includes silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment suitable for various shapes and materials. Our machinery is widely used in cosmetics, daily necessities, food, medical supplies, and automotive accessories industries, and exported to Europe, United States, South Korea, Middle East, South Africa, Mexico, and other regions.
We adhere to the core concepts of efficiency, excellence, energy conservation, integrity, and win-win partnerships. Our professional R&D team can customize machinery according to specific customer requirements and provide comprehensive technical training and support services.
Semi Automatic Flatbed Screen Printing Machine For Plastics Metal Food Packaging
Packaging & Shipping
Semi Automatic Flatbed Screen Printing Machine For Plastics Metal Food Packaging Semi Automatic Flatbed Screen Printing Machine For Plastics Metal Food Packaging
Frequently Asked Questions
How long is the machine's warranty period?
We offer a 2-year warranty and long-term service support.
What technical support services are provided after purchase?
We provide on-site installation service and professional engineer training.
How will you help us resolve after-sales repair issues if the machine malfunctions?
In case of machine malfunction, we provide video and email communication support, with on-site service available when necessary.
What inks does the machine support?
We use UV-based environmentally friendly inks and imported environmentally friendly inks.
What certifications can you provide?
We have ISO9001, SGS, and RoHS certifications.
