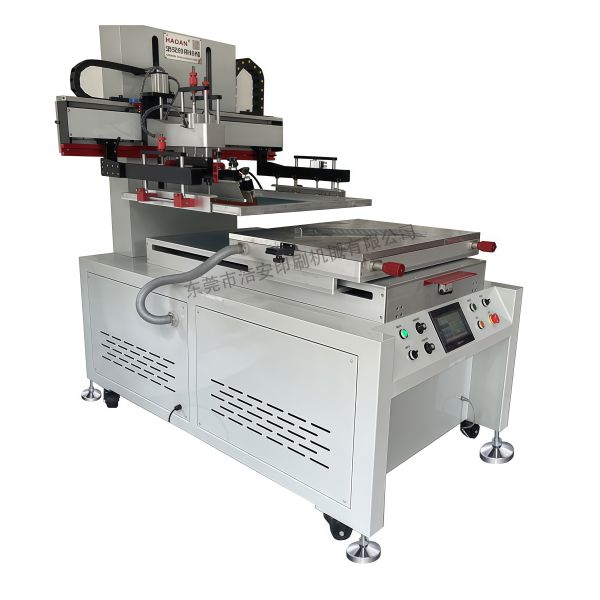

HA-900-S-T Servo Flat Screen Printing Machine is a high-precision, high-efficiency servo sliding table screen printing machine. The left-right and up-down movements adopt three-phase variable frequency motor control. The front-rear sliding table is driven by Mitsubishi servo motor and ball screw, ensuring high positioning accuracy, low vibration, stable operation and precise multi-color overprinting. It features double-column and double-guide rail structure and dual-variable frequency system for high-speed and stable operation. The left-right movement of the printing head is driven by linear guide rails. Equipped with double-guide rail left-right screen clamps and plate distance adjustment device, its speed can reach 600–800 cycles/hour.

This machine is ideal for large-format trademark printing, including high-precision circuit boards, PC boards, paper, acrylic sheets, and high-precision four-color halftone LOGO printing. It is widely used in daily necessities, toys, electronics, electrical appliances, plastics, leather, metal, glass, light industry, food packaging and other industries.

1. Worktable controlled by servo motor with electric eye induction, high accuracy and stable performance.
2. Worktable allows fine adjustment in left-right, front-rear and angle directions with stable positioning.
3. Automatic head lifting function for easier screen frame removal and cleaning.
4. Left-right movement of squeegee adopts guide rail structure, motor drive and synchronous belt transmission for smooth motion and improved printing quality.
5. Printing head up-down movement driven by motor with HIWIN linear guide rails, precise stroke control and stable operation.
6. Automatic screen lifting function for higher printing quality.
7. Automatic vacuum suction function suitable for thin workpiece printing.
8. Stable performance with PLC + touch screen control system.
9. Two pre-set working modes: single-cycle printing and automatic printing.
10. Equipped with latest electrical components for strong, smooth and durable power performance.
11. Sensitive touch control panel for quick response and easy operation.

1. Printing Color: 1 color
2. Single Cycle: Available
3. Continuous Motion: Available
4. Counter: Available
5. Speed Adjustment: Available
6. Delay Control: Available
7. Printing Speed: 600–800 cycles/hour
8. Worktable Size (Vacuum): 700mm * 1000mm
9. Max. Screen Frame: 650mm * 1050mm
10. Max. Printing Area: 550mm * 900mm
11. Workpiece Thickness: 1mm–200mm
12. Screen Frame Lifting Stroke: 100mm
13. Squeegee Left-Right Stroke: 900mm
14. Automatic Screen Lifting Stroke: 20mm
15. Squeegee & Ink Knife Up-Down Stroke: 25mm
16. Sliding Table Drive: Servo Motor
17. Control System: PLC + Touch Screen
18. Control Voltage: 12VDC
19. Power Supply: 220VAC 50/60Hz
20. Connected Load: 2000W
21. Air Supply: 6bar
22. Machine Dimensions: 1800mm * 1280mm * 1750mm
23. Weight: Approx. 500Kg

Dongguan Hao'an Printing Machinery Co., Ltd. is a professional manufacturer of automated printing equipment, established in 2016. Its products include silk screen printing machines, transfer printing machines, stamping machines, and peripheral equipment, which can meet printing requirements of various shapes and materials. It is widely used in various fields and industrys suchs as cosmetics, daily necessities, food, medical supplies, and automotive accessories. The machinery and equipment are exported to multiple countries and regions suchs as Europe, the United States, South Korea, the Middle East, South Africa, Mexico, etc., and are highly trusted by domestic and foreign customers.

We always adhere to the five core concepts of "efficiency, excellence, energy conservation, integrity, and win-win", and are committed to providing customers with suitable and excellent technical solutions. Haoan has a strong professional technology research and development team that can customize the most suitable machinery and equipment according to the different requirements of customers, and will continue to innovate to make products intelligent and efficient. The company not only provides excellent machinery and equipment, but also provides professional technical training and supporting services, truly achieving what customers want and reach.

• Q. How long is the machine's warranty period? A.We offer a 2-year warranty and long-term service
• Q. What technical support services are provided after purchase? A.We provide on-site installation service and professional engineer training
• Q. How will you help us resolve after-sales repair issues if the machine malfunctions? A.In case of machine malfunction, we will provide video and email communication, and on-site service is available if necessary
• Q. What inks does the machine support? A.We use UV-based environmentally friendly inks, imported environmentally friendly inks
• Q.What certifications can you provide? A.We have ISO9001, SGS, and RoHS certifications
