High Speed CNC Ceiling Fan Coil Winding Machine Automatic With 6 Working Stations
High Speed CNC Ceiling Fan Coil Winding Machine Automatic With 6 Working Stations
High Speed CNC Ceiling Fan Coil Winding Machine Automatic With 6 Working Stations
High Speed CNC Ceiling Fan Coil Winding Machine Automatic With 6 Working Stations
Specifications
Brand Name :
XINGTE
Model Number :
XT-04F
Place of Origin :
CHINA
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
MOQ :
1
Price :
Negotiate
Packaging Details :
Wooden case
Delivery Time :
15-35 days
Payment Terms :
LC,T/T
Supply Ability :
1.000PCS/MONTH
Compressed Air :
0.5-0.6 Mpa
coil stack height :
5-50mm
Winding accuracy :
±2 Turns
Coil OD :
20-80mm
Controller :
Motion Controller
Numbers Of Turns :
1-999 Adjustable
machine dimensions :
850x875x1700
Winding Power :
5.5kw
Name :
Automatic Coil Winding Machine
Description
High Speed CNC Ceiling Fan Coil Winding Machine Automatic With 6 Working Stations
Product Overview

The Automatic Coil Winding Machine revolutionizes coil production with efficient and accurate winding of enameled wire into inductor coils. This automated equipment has become essential for industries including motor manufacturing, electroacoustics, and transformer production.

Common applications include electric motors, fluorescent lamp ballasts, transformers, televisions, radios, electronic igniters, mosquito killers, speakers, headphones, microphones, and welding machines.

Key Features
  • Precision ball screw for wire arrangement ensures precise, tight, and consistent winding
  • Four work stations operate simultaneously for automatic wire arrangement, slot changing, winding, and thread end clipping/cutting
  • AC servo motor drive for precise positioning
  • User-friendly 10-inch HMI with intuitive dialogue mode for program editing
  • Hierarchical management and password storage functions prevent unauthorized program modifications
  • Simple structure for convenient control and maintenance
Technical Specifications
Product Name Automatic Coil Winding Machine
Winding Power 5.5kw
Display Mode Touch Screen
Controller Motion Controller
Numbers of Work Station 4 Stations
Machine Dimensions 850x875x1700mm
Wire Diameter 0.1-0.7mm
Winding Accuracy ±2 Turns
Coil Stack Height 5-50mm
Winding Speed 2000Rpm
Winding Mode Automatic

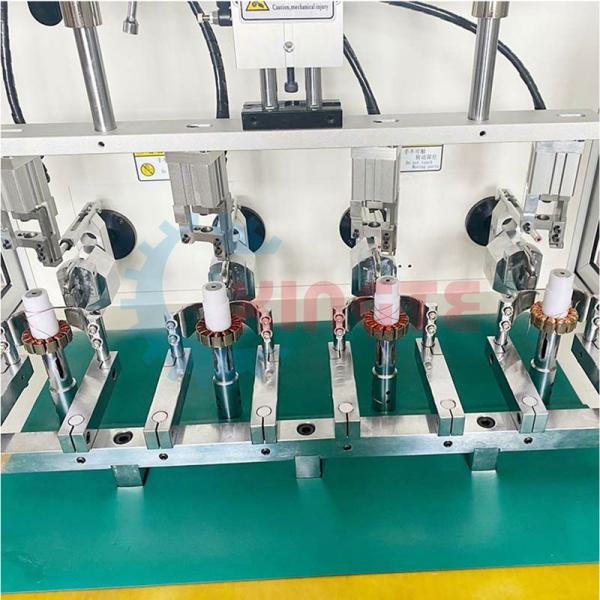

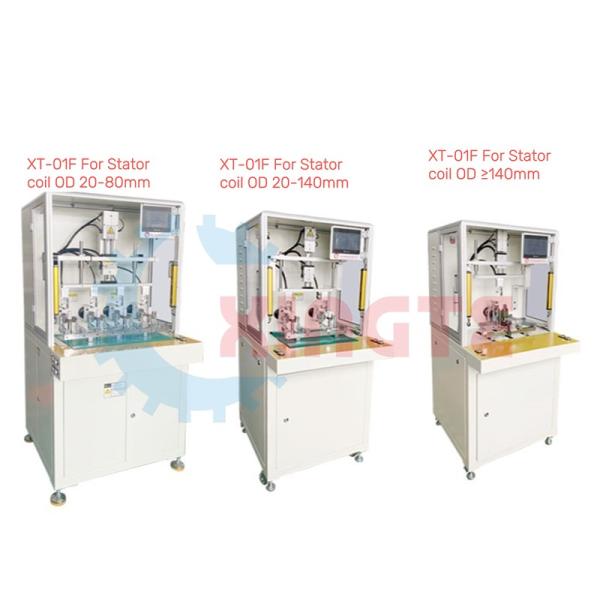

Machine Images
High Speed CNC Ceiling Fan Coil Winding Machine Automatic With 6 Working Stations High Speed CNC Ceiling Fan Coil Winding Machine Automatic With 6 Working Stations High Speed CNC Ceiling Fan Coil Winding Machine Automatic With 6 Working Stations
Application Areas

Our production capabilities cover various industries and applications including:

  • Model aircraft motors
  • Fascia gun motors
  • Balancing car motors
  • Scooter motors
  • New energy vehicle motors
  • Rotary transformers
  • Fan stators
  • Twist car motors
  • Cooling fan stators
High Speed CNC Ceiling Fan Coil Winding Machine Automatic With 6 Working Stations
Customization Options

Customized Service for Automatic Coil Winding Machine - XINGTE XT-04F

  • Brand Name: XINGTE
  • Model Number: XT-04F
  • Place of Origin: CHINA
  • Certification: CE, IOS9001, KC, ISO45001, ISO24001
  • Minimum Order Quantity: 1
  • Price: Negotiable
  • Packaging Details: Wooden case
  • Delivery Time: 15-35 days
  • Payment Terms: LC, T/T
  • Supply Ability: 1,000 PCS/MONTH
Frequently Asked Questions
What is the brand name of this product?
The brand name of this product is XINGTE.
What is the model number of this product?
The model number of this product is XT-04F.
Where is this product manufactured?
This product is manufactured in China.
What certifications does this product have?
This product is certified with CE, IOS9001, KC, ISO45001, and ISO24001.
What is the minimum order quantity for this product?
The minimum order quantity for this product is 1.
