Atomizer Heating Coil Winding Machine Automatic High Capacity Stable Operation
Atomizer Heating Coil Winding Machine Automatic High Capacity Stable Operation
Atomizer Heating Coil Winding Machine Automatic High Capacity Stable Operation
Atomizer Heating Coil Winding Machine Automatic High Capacity Stable Operation
Specifications
Brand Name :
XINGTE
Model Number :
XT-PHJ
Certification :
CE,IOS9001,KC,ISO45001,1SO24001
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C,T/T,D/A,D/P
Supply Ability :
2.000 sets per year
Delivery Time :
30-40 working days
Packaging Details :
Wooden case

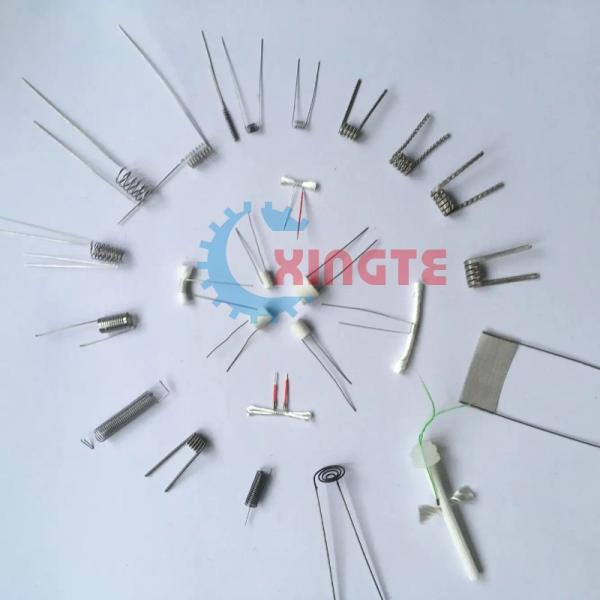

Application :
ATOMIZER COIL
Weight :
1150KGS
Dimensions :
2600(L)×1800(W)×1900(H)mm
After-sales service provided :
engineers available to service machinery overseas, Online Video technical support
Voltage :
220v 50/60HZ
Name :
Automatic Coil Winding Machine
Warranty :
12 Monthes
Function :
atomizer production
speed :
1200-1500pcs/H
Description

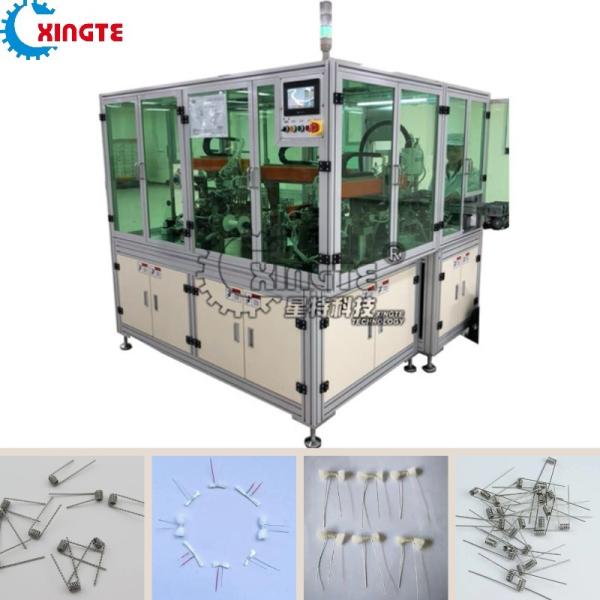

Atomizer Heating Coil Winding Machine Automatic High Capacity Stable Operation
Equipment Overview

This advanced automatic equipment is specifically engineered for welding the heating core of winding cotton thread. Customized to meet precise customer requirements, the touch welding line system delivers exceptional precision and stable welding performance. The equipment seamlessly integrates with cotton wire winding processes, significantly enhancing work efficiency while reducing manual labor requirements.

Product Features
  • Advanced servo control system automatically adjusts operations based on operator parameter commands
  • Premium components including imported servo motor, hollow platform, linear guide rail, and screw rod
  • High transmission precision with stable operation and extended service life
  • Seamless integration with automatic heating core cotton wire winding production lines
  • Complete automation eliminates manual operation throughout the process
  • Compact footprint with stable equipment operation and high-quality output
  • Superior yield rates that reduce labor costs while meeting higher product requirements
Technical Specifications
Model XT-PHJ Number of Axes 16 axis
Dimensions 2600(L)×1800(W)×1900(H)mm Spindle Speed ≤3000rpm
Machine Weight Approximately 1200 kgs Power Consumption Approximately 3.5 kW/h
Power Supply AC220 V ± 10% single phase 50/60Hz Control Mode Touch Screen
Air Source 0.4Mpa～0.7Mpa Tension Device Damper
Production Capacity 900-1200 pieces per hour
About XINGTE
  • Experience: Established in 2007 with over 17 years of R&D experience in coil winding technology
  • Plant Size: Headquarters in Shenzhen with factory area exceeding 30,000 square meters
  • Service: 230+ technical service and after-sales staff with worldwide service points
  • Patents & Certificates: 120+ patents and related certifications
  • Production Capacity: 600+ experienced employees ensuring reliable production and fast delivery
  • Technology: 130+ experienced engineers providing strong R&D and customization capabilities
XINGTE Production Line Capabilities
  1. Motor stator, rotor, and related coil winding machines
  2. Transformer-related product coil winding machines
  3. Voice coil-related product winding machines
  4. Inductor coil winding machines
  5. Customized fully automatic lines for motor, speaker, and transformer production
Facility & Equipment
Atomizer Heating Coil Winding Machine Automatic High Capacity Stable Operation Atomizer Heating Coil Winding Machine Automatic High Capacity Stable Operation Atomizer Heating Coil Winding Machine Automatic High Capacity Stable Operation
Order Process
Atomizer Heating Coil Winding Machine Automatic High Capacity Stable Operation
Delivery & Shipping
Atomizer Heating Coil Winding Machine Automatic High Capacity Stable Operation
