Precision Eight-Axis Winding Machine with High Precision and 12000rpm for Multi-Layer Coil Winding
Precision Eight-Axis Winding Machine with High Precision and 12000rpm for Multi-Layer Coil Winding
Precision Eight-Axis Winding Machine with High Precision and 12000rpm for Multi-Layer Coil Winding
Precision Eight-Axis Winding Machine with High Precision and 12000rpm for Multi-Layer Coil Winding
Precision Eight-Axis Winding Machine with High Precision and 12000rpm for Multi-Layer Coil Winding
Precision Eight-Axis Winding Machine with High Precision and 12000rpm for Multi-Layer Coil Winding
Precision Eight-Axis Winding Machine with High Precision and 12000rpm for Multi-Layer Coil Winding
Precision Eight-Axis Winding Machine with High Precision and 12000rpm for Multi-Layer Coil Winding
Precision Eight-Axis Winding Machine with High Precision and 12000rpm for Multi-Layer Coil Winding
Precision Eight-Axis Winding Machine with High Precision and 12000rpm for Multi-Layer Coil Winding
Specifications
Model Number :
XT-TPW0880
MOQ :
1
Packaging Details :
Wooden case
Payment Terms :
L/C,D/A,D/P,T/T
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
Brand Name :
XINGTE
Price :
negotiable
Supply Ability :
2.000 sets per year
Place of Origin :
CHINA
Description

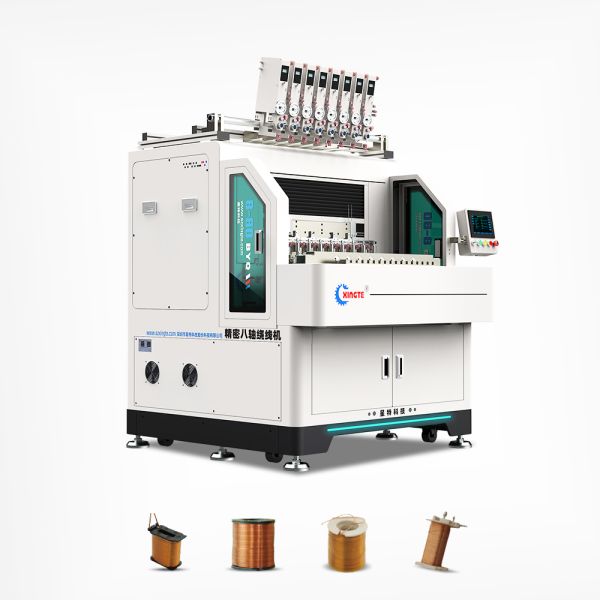

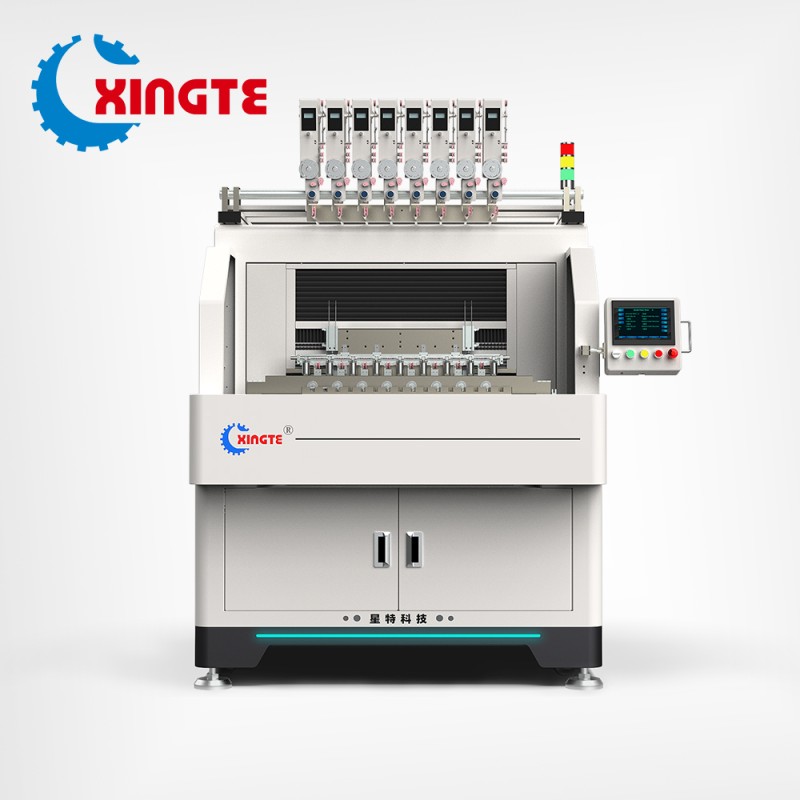

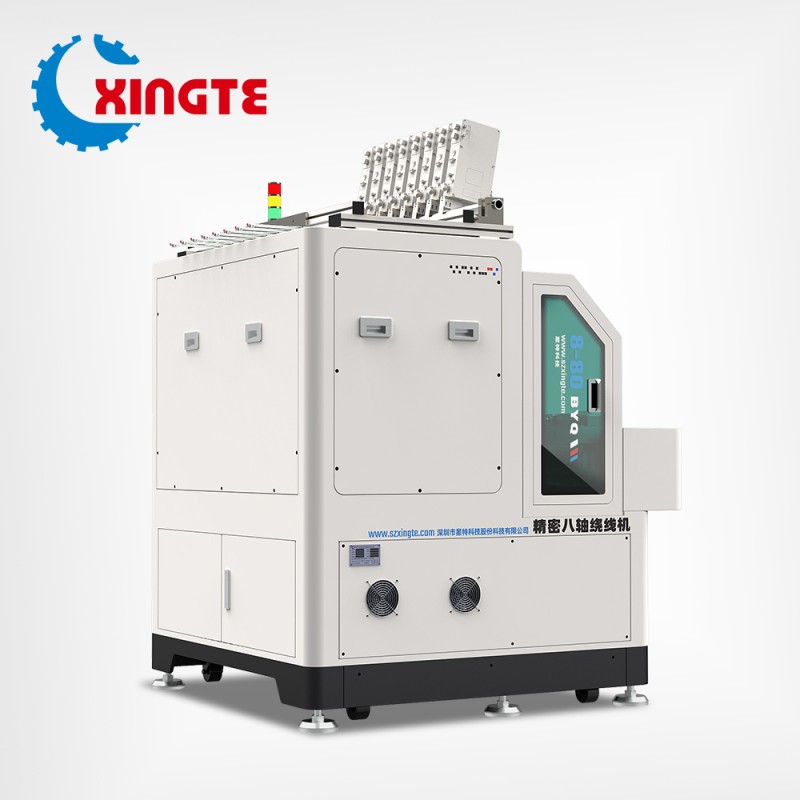

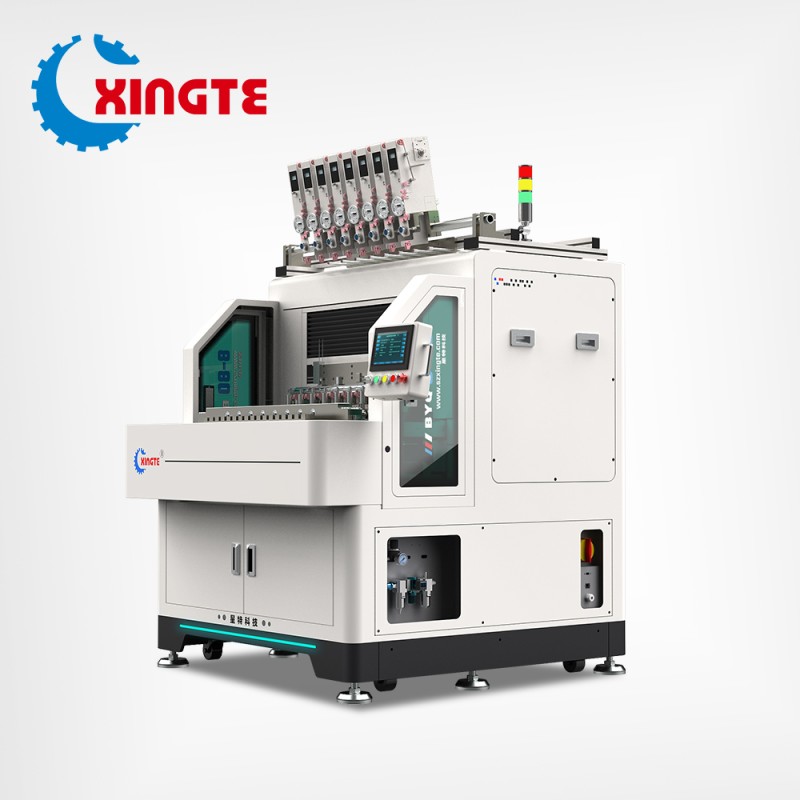

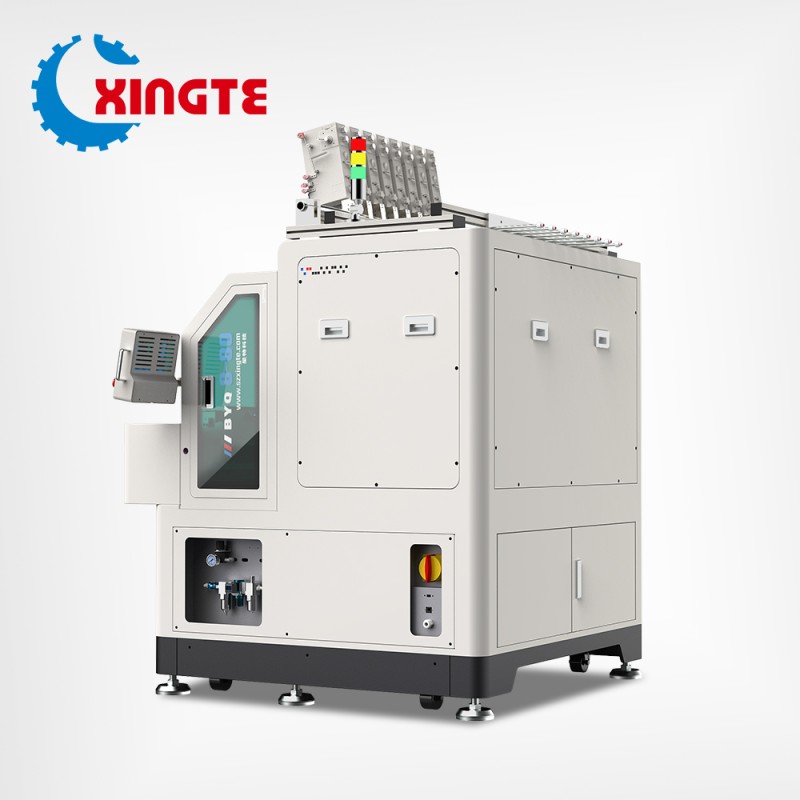

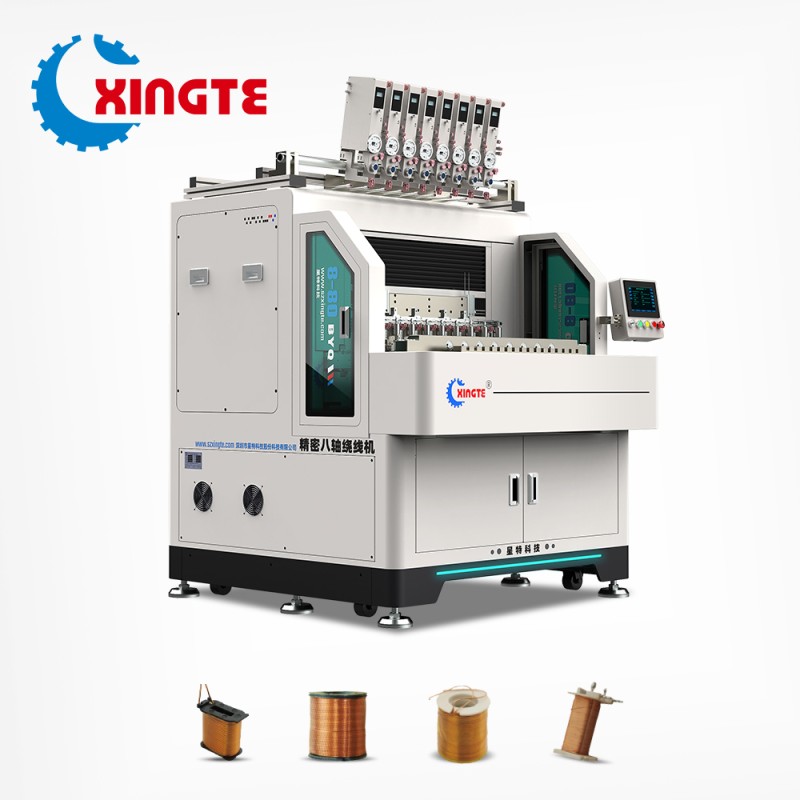

Precision Eight-Axis Winding Machine
Equipment Features

This high-performance winding machine delivers exceptional precision, efficiency, and stability for complex winding applications.

  • High precision multi-layer and multi-coil wire arrangement
  • Integrated winding, toe wrapping, paint peeling, and right-angle winding capabilities
  • Stray wire management functionality
  • Optimized for closely arranged wire patterns
Application Fields

Ideal for industries requiring high-precision wiring solutions:

  • Home appliances and automotive components
  • New energy and communication systems
  • Industrial control power supplies
  • Medical equipment and aerospace applications
  • Water pumps and water valves
Technical Parameters
Parameter Specification
Wire Range φ0.01-φ0.8mm
Position Accuracy ±0.01mm
Yield ≥99%
Number of Spindles Eight-axis
Spindle Pitch 80mm
HMI 7-inch touch screen
Maximum Spindle Speed 12000rpm
Maximum Rotational Diameter 70mm
Loading/Unloading Method Servo material plate
Control Mode Yaskawa Control System
Parameter Specification
X-axis Movement Distance 160mm
Y-axis Movement Distance 170mm
Z-axis Movement Distance 85mm
Maximum Axis Speed (X,Y,Z) 250mm/s
Equipment Power Supply AC380V three-phase/ground 50HZ
Machine Power 7.5KW
Control Air Source Equipment 0.45~0.6MPa
Machine Size 1300*1500*2000mm
Weight 1200Kg
