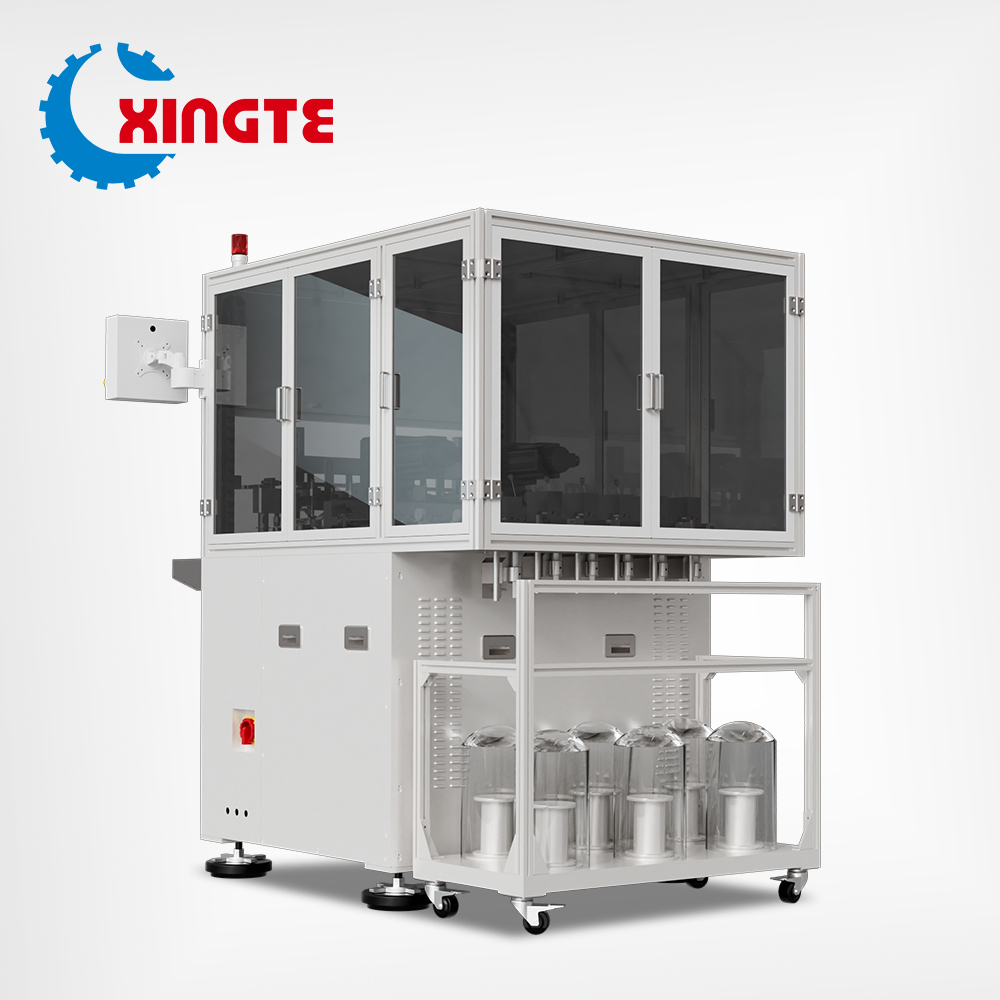

Four-Station, Six-Station and Eight-Station Rotor Winding Machines
Product Overview

Designed for winding various types of rotors including automotive, small home appliances, toys, power tools, and smart home appliances.

Equipment Overview

This machine utilizes coordinated motion of X, Y, Z axes and winding C-axis to precisely control the path, angle, and stacking of enameled wire in 3D space. It integrates clamping, rotation, and wire arranging functions.

Features include automatic indexing, automatic winding, automatic wire arrangement, automatic slot switching, automatic pin tape winding, and automatic wire trimming.

Optional accessories: pneumatic cutter, electronic tensioner, and servo tensioner.

Equipment Features
  • Fast operation speed
  • Neat wire arrangement
  • Uniform turns distribution
Technical Parameters
Parameter Specification
Core Size Max outer diameter 35 mm
Applicable Wire Diameter Φ0.07~Φ0.5 mm
Working Stations 4/6/8 stations
Max Spindle Speed 5500 rpm (depends on wire diameter)
Spindle Positioning Accuracy 0.05°
Movement Positioning Accuracy 0.015 mm
Controlled Axes 5/6/8 axes
Servo Motors 5/9 sets
Controller Touch screen motion controller
Power Supply 3-phase 380V±10% 50Hz
Power Consumption 6.8KW / 9.8KW / 10.2KW
Air Pressure 0.5-0.7 MPa
Machine Dimensions (L)1180 * (W)1600 * (H)1800mm
(L)1200 * (W)1600 * (H)1800mm
(L)1280 * (W)1600 * (H)1800mm
Machine Weight 530KG / 570KG / 610KG
