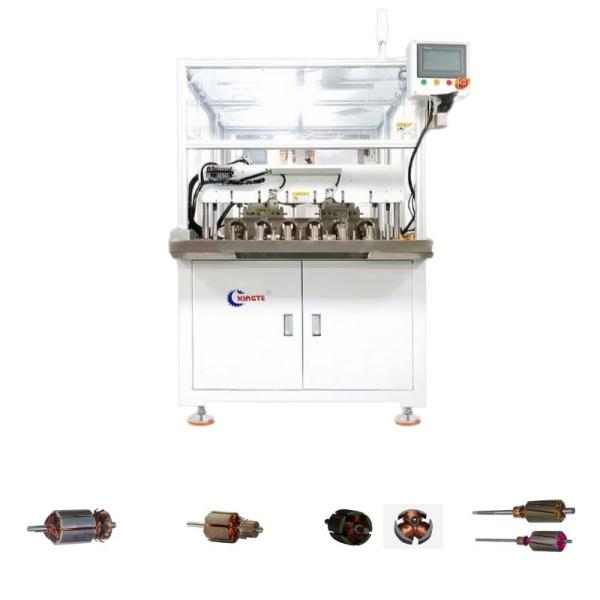

XT-F06D 3-12 Slots Rotor Coil Winding Machine PLC Control Energy Efficient
XT-F06D 3-12 Slots Rotor Coil Winding Machine PLC Control Energy Efficient
XT-F06D 3-12 Slots Rotor Coil Winding Machine PLC Control Energy Efficient
XT-F06D 3-12 Slots Rotor Coil Winding Machine PLC Control Energy Efficient
XT-F06D 3-12 Slots Rotor Coil Winding Machine PLC Control Energy Efficient
XT-F06D 3-12 Slots Rotor Coil Winding Machine PLC Control Energy Efficient
Specifications
Brand Name :
XINGTE
Model Number :
XT-F06D
Place of Origin :
Shenzhen
Certification :
CE,IOS9001,KC,ISO45001,ISO24001
MOQ :
1
Price :
Negotiate
Packaging Details :
Wooden case
Delivery Time :
10-25 working days
Payment Terms :
LC,T/T
Supply Ability :
1.500 PCS/MONTH
Number of rotor slot :
3-12 Slots
Power :
8 KW
Control System :
PLC Control
air pressure :
0.4-0.6Mpa
Winding Speed :
6000rpm
Max. Rotor Diameter :
28mm
Rotor stack height :
Max 40mm
Description
XT-F06D 3-12 Slots Rotor Coil Winding Machine PLC Control Energy Efficient
Product Overview

The XT-F06D Rotor Motor Winding Machine is an essential tool for manufacturing high-quality motors across various electronic applications. This fully automatic system enhances efficiency and automation in motor production.

Featuring six flying fork winding stations, this machine delivers 5-6 times greater efficiency than single flying fork equipment, resulting in faster production times, higher output, and increased cost-effectiveness.

Key Features
  • High-speed operation with Max 10 axes synchronized controllers for precise positioning
  • AC servomotor control for main former and optional side former movement
  • Intermittent wire feed with precision winding technology
  • Unique wire clamp mechanism eliminates scrap wire
  • Modular design for easy change and assembly
  • Six stations of flying fork winding with over 99% yield rate
  • Multiple winding modes and quick mold changeover
  • Tension wire breakage alarm and touchscreen programming
  • Large program storage capacity and reserved automation ports
  • Can be linked with multiple units for automated production lines
Technical Specifications
Parameter Specification
Dimensions 1200mm (L) × 1600mm (W) × 1800mm (H)
Control System PLC Control
Model XT-F06D
Max. Rotor Length 500mm
Number of Rotor Slots 3-12 Slots
Max. Rotor Diameter 28mm
Rotor Stack Height Max 40mm
Power Consumption 8 KW
Winding Speed 6000rpm
Power Requirement 380V, 50/60Hz
Applications

This automatic coil winding machine is widely used in the electrical appliance industry for winding various types of motors found in household appliances including:

  • Table fans
  • Ceiling fans
  • Air conditioners
  • Washing machines

The machine significantly improves winding efficiency and accuracy compared to traditional methods, facilitating automated production lines and enhanced process control.

Customization & Ordering
Brand Name: XINGTE
Model Number: XT-F06D
Place of Origin: Shenzhen
Certifications: CE, IOS9001, KC, ISO45001, ISO24001
Minimum Order Quantity: 1
Price: Negotiable
Packaging: Wooden case
Delivery Time: 10-25 working days
Payment Terms: LC, T/T
Supply Ability: 1,500 PCS/MONTH
Product Gallery
XT-F06D 3-12 Slots Rotor Coil Winding Machine PLC Control Energy Efficient XT-F06D 3-12 Slots Rotor Coil Winding Machine PLC Control Energy Efficient XT-F06D 3-12 Slots Rotor Coil Winding Machine PLC Control Energy Efficient
Frequently Asked Questions
What is the brand name of this product?
The brand name of this product is XINGTE.
What is the model number of this product?
The model number of this product is XT-F06D.
Where is this product manufactured?
This product is manufactured in Shenzhen.
What certifications does this product have?
This product has CE, IOS9001, KC, ISO45001, and ISO24001 certifications.
What is the minimum order quantity for this product?
The minimum order quantity for this product is 1.
Is the price of this product negotiable?
Yes, the price of this product is negotiable.
How is this product packaged for delivery?
This product is packaged in wooden cases for delivery.
How long does it take to deliver this product?
The delivery time for this product is 10-25 working days.
What are the payment terms for this product?
The payment terms for this product are LC and T/T.
What is the supply ability of this product?
The supply ability of this product is 1,500 PCS per month.
