3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD14000-40000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Processing: :
water filling machine
Filling material: :
Pure/Mineral water
Material: :
SUS304/316
Diameter of bottle :
55-110mm
Usage :
Beverage Filling Packaging
Filling volume :
200ml-2000ml
Description
Complete small bottled pure mineral water processing bottling filling machine for sale
Water is source of the life. Water includes natural spring water and purified water. How can you get the drinking water? How can you make bottles? How can you package and design your products? We can supply complete solution for water filling plant ,including the blow moulding machine, water treatment system, washing filling capping machine, code sprayer, automatic labeling machine, automatic packing machine, automatic palletizer system. Baiji Machinery, professional in liquid filling and packaging, will always provide you the best solutions for your projects.
Detailed Images
Bottle blowing machine
1. Blow moulding machine 1,000-24,000bph, and 0.25-2L PET bottles are available;2. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle, oil bottle cosmetics bottle and wide-mouth bottle etc;
3. The man-machine interface is highly automated and easy to operate. The compact machine occupies a smaller area;
4. The simple slide-in way of mold mounting makes it possible for the operators to change molds easily within 30 minutes.
Water treatment system
1. Used for pure water, mineral water and other bottled water,water for food and beverage production.
2. It is mainly composed of the following equipment: pre-treatment system (water tank,multi-medium filter, active carbon filter, ion exchanger, millipore filter), membrane separation system (ultrafilter, nanometer filter, RO system), electrodialysis device, sterilization system (UV device, ozone device) ,product water tank and so on.
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line

3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line

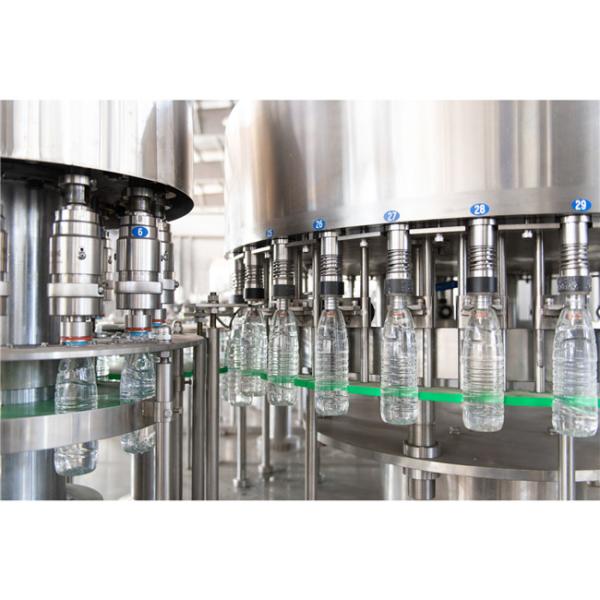

3in1 washing filling capping machine

We provide rotary monoblock washing filling capping unit.
We have different models to meet your different capacity request from 2000bph to 25000bph.
Auto shrink sleeve labeling machine
1. The mainly used for container labeling cylindrical, square or other special shapes of detergents, beverages, mineral water, food,
etc.
2. Labeling machine is controlled by PLC touch screen, all-electric eyes are using imported advanced configuration.
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
Auto film shrink wrapping machin
1. Small footprint and small energy consumption
2. Low operating cost.
3. High efficiency and stability, simple operation.
4. PLC control, quality assurance.
Specification
Model
CGF8-8-3
CGF14-12-5
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF50-50-12
Washing heads(pcs)
8
14
18
24
32
50
Filling heads(pcs)
8
12
18
24
32
50
Capping heads(pcs)
3
5
6
8
10
12
Capacity (bph)
2000
4000
6000
8000
10000
12000
Motor power(kw)
2.2
3.5
4.5
6.0
7.5
9.5
The Washing heads
1).All 304/316stainless steel rinse heads, water spray style inject design, more save water consumption and more clean

2).304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
3). 304/316 stainless steel washing pump
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after filling
- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for flushing
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
Capping Part of Water Filling Machine
1.Automatic check,no bottle no capping. 2.Capping heads in stainless steel 304/316L. 3.Capping heads stop working when lack of bottle. 4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle. 5.High efficiency centrifugal principle.
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line

3 In 1 Water Filling Machine 6000bph Complete Automatic Water Production Line
