Stainless Steel 5.5kw Bottled Water Production Line multiple funcition
Stainless Steel 5.5kw Bottled Water Production Line multiple funcition
Stainless Steel 5.5kw Bottled Water Production Line multiple funcition
Stainless Steel 5.5kw Bottled Water Production Line multiple funcition
Stainless Steel 5.5kw Bottled Water Production Line multiple funcition
Stainless Steel 5.5kw Bottled Water Production Line multiple funcition
Stainless Steel 5.5kw Bottled Water Production Line multiple funcition
Stainless Steel 5.5kw Bottled Water Production Line multiple funcition
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD12000-50000 1Set
Payment Terms :
L/C, T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Packaging Type: :
Bottles
Type: :
Filling Machine
Applicable Industries: :
Food & Beverage Factory
Condition: :
New
capacity :
2000-24000BPH
Function: :
Bottle Washing Filling Capping
Description

Full Complete Water Production Line Include Water Filling Machine / Packing Line / Water Treatment System

The water filler is a full-automatic multiple-funcition washing, filling and capping unit. It is used in washing, filling and sealing all kinds of no gas contained liquid, such as fruit jujice, oil &vingar, wine, fruit wine, mineral water and pure water.

The water filling line has features of unique design, new stytle, complete fuctions, multipurpose, convenient in operation, beautiful construction, high automaticity. The Washing Filling and Screw Capping machine is the best filling equipment in China.

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

Machine Parameter

Model CGF16126 CGF18186 CGF24248 CGF323210 CGF404012 CGF505012 CGF606015 CGF808020
Heads of washing, filling, sealing 16-12-6 18-18-6 24-24-8 32-32-10 40-40-12 50-50-12 60-60-15 80-80-20
Production capacity(bottle/hour) (600ml) 2000-4000 5000-7000 8000-12000 12000-15000 16000-20000 20000-24000 25000-30000 35000-40000
Suitable bottle diameter(mm) φ=50-110 =170 330-2250ml
Spraying pressure 2~3
Motor power 2.2kw (Main motor) 2.2kw(Main motor) 3kw (Main motor) 5.5kw (Main motor) 7.5kw(Main motor) 11kw(Main motor) 15kw(Main motor) 19kw(Main motor)
Overall dimension(L*W*H) (mm) 2400*1650*2500 2600* 1920*2550 3100*2300*2800 3800*2800*2900 4600*2800*2900 5450*3300*2900 6500*4500*2900 76800*66400*2850
Detaile Images
Washing Part
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution
Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

  • Filling Part

High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

Cap loading machine

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

We suplly Free Factory Layout design

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

We suplly Free Bottle Shape design

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

Water treatment system

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

Labeling Machine

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

Laser date printer

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

PE film wrapping package machine

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

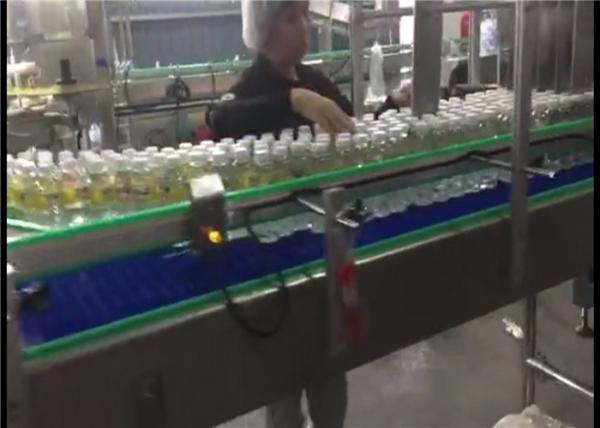

Customer Photos

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

Stainless Steel 5.5kw Bottled Water Production Line multiple funcition

AFTER-SALE SERVICE
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
