3kw Mineral Water Filling Capping Machine 12000BPH 310mm Height
3kw Mineral Water Filling Capping Machine 12000BPH 310mm Height
3kw Mineral Water Filling Capping Machine 12000BPH 310mm Height
3kw Mineral Water Filling Capping Machine 12000BPH 310mm Height
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD15000-60000 1Set
Payment Terms :
T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Product name :
Automatic Bottle Washing Filling Capping Machine
Function :
Bottle Washing Filling Capping
Keyword :
Drinking Water Production Plant
Dimension(L*W*H) :
2900*2100*2400mm
Warranty of core components :
2 years
Machinery Capacity :
12000BPH
Description

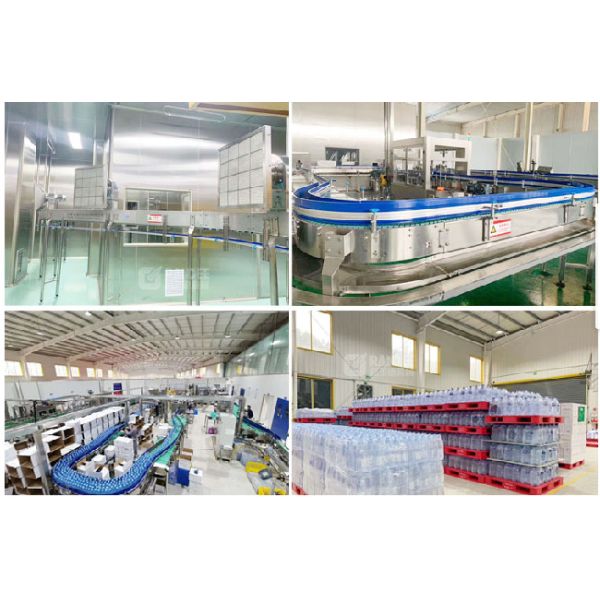

water filling line

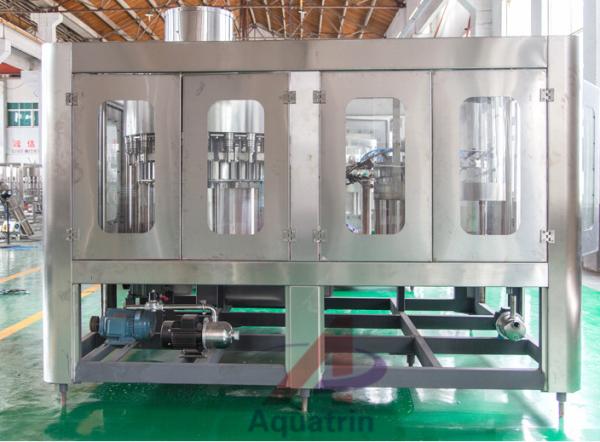

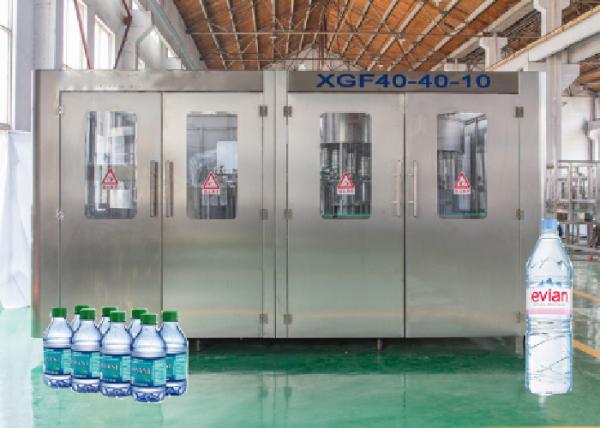

The CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage and other non-gas beverage machinery. Beverage Machinery can finish washing , filling and sealing bottles in one machine and reduce the dust and exposure time, improve the sanitary conditions, production capacity and economic efficiency.The whole process is automatic.
Main Structures of Water Bottling Machine
1. Bottle infeed: Bottle infeed by combination of infeed starwheels. Equipped with bottle jam protection device.
2. Discharge Starwheel: Nylon starwheel and conveyor belt work to discharge bottles.
3. Rinsing system: Combined with rotary tray with clamp, water distributing tray, water tank and rinsing pump.
4. Filling system: Combined with hydraulic, filling valve, controlling ring, and elevator-cylinder.
5. Capping system: Combined with capper, cap sorter and cap falling track.
6. Driving system: Combined with main motor and gears.
7. Bottle transmitting system: Combined with air conveyor, steel starwheels and neck supporting carrier plates.
8. Electrical controlling system: this part is frequency inverted, PLC controlled and touch screen operated.
Washing parts of water filling machine
1.Using unique design,avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the pollution.
2.Washing pump is made of stainless steel.
3. By high spray nozzle, blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save flush bottle.
4. Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion resistant bearing without maintenance.
3kw Mineral Water Filling Capping Machine 12000BPH 310mm Height
Filling parts of water filling machine
1.Filling method for gravity filling.
2.Filling valve manufactured SUS 304/316L.
3.High precision, high speed liquid filling.
4.Filling move by the rack drive system through gear transmission.
5.Hydraulic cylinder controlled by a float liquid level.
6.Using the latest double guide pillar type bottle of lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.
3kw Mineral Water Filling Capping Machine 12000BPH 310mm Height
Capping parts of water filling machine
1.Automatic check,no bottle no capping.
2.Capping heads in stainless steel 304/316L.
3.Capping heads stop working when lack of bottle.
4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
5.High efficiency centrifugal principle.
Technical parameter
Model
CGF24-24-6
Capacity
12000PBH
Washing heads
24
Filling heads
24
Capping heads
6
suitable bottle
PET bottle,plastic bottle
Diameter of bottle
55-110mm
Height of bottle
150-310mm
Suitable cap
Plastic screw cap
Weight
4500kg
Main motor power
3kw

3kw Mineral Water Filling Capping Machine 12000BPH 310mm Height3kw Mineral Water Filling Capping Machine 12000BPH 310mm Height

3kw Mineral Water Filling Capping Machine 12000BPH 310mm Height

3kw Mineral Water Filling Capping Machine 12000BPH 310mm Height
