0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle
0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle
0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle
0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle
0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle
0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle
0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle
0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD12000-50000 1Set
Payment Terms :
L/C, T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Packaging Type: :
Bottles
Type: :
Filling Machine
Applicable Industries: :
Food & Beverage Factory
Condition: :
New
capacity :
3000BPH
model :
CGF8-8-3
Description
Turnkey Project A To Z Pure Mineral Water Bottling Filling Labeling Packing Machine

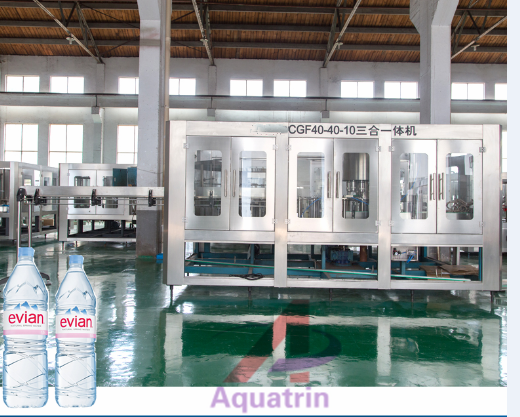

Water Filling Machine
The water filling machine is a plastic bottle water filling machine, an automatic filling and capping integrated machine, and is a multifunctional water filling machine. It is used to fill carbonated beverages, carbonated water, soda and other carbonated beverages. It can also be used to fill juice-free beverages and other non-sparkling beverages. It is a multi-purpose machine with high practicality.

0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle

Technical parameter
Model
CGF14-12-4
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-12
Capacity(500ml)(B/H)
4000
6000
10000
13000
15000
Filling precision
<=+5(liquid level)
Filling pressure
<=0.4Mpa
Bottle height
160-320mm
PET bottle specification
Bottle diameter 50-115mm,Height160-320mm
Suitable cap shape
Plastic screw cap or crown cap
Total power
4.4
5.2
6.2
6.2
7.5
Overall dimensions
2250*1650*2250
2600*1965*2250
2980*2200*2250
3880*2200*2250
4000*2250*2500
Weight(kg)
2500
3500
4500
6000
7200
Detailed Images
Washing Part
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution
0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle

  • Filling Part

High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose

0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle

Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head

0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle

Cap loading machine

0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle

0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle

We suplly Free Factory Layout design

0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle

We suplly Free Bottle Shape design

0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle

0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle

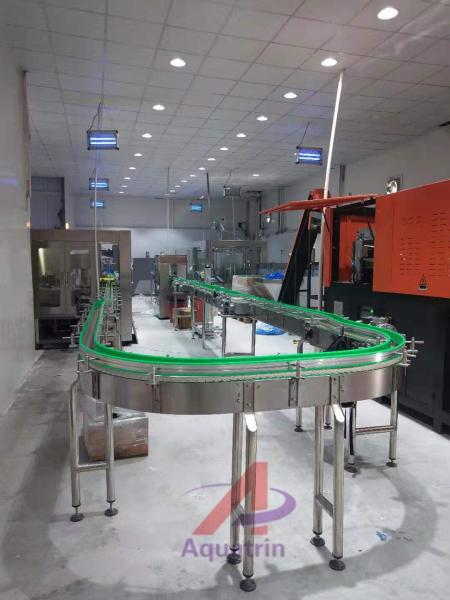

Customer Photos

0.4Mpa 3000BPH Automatic Water Bottle Filling Machine For Plastic Bottle

AFTER-SALE SERVICE
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the
customers' project.
