3.8kw Automatic Water Bottle Filling Machine
3.8kw Automatic Water Bottle Filling Machine
3.8kw Automatic Water Bottle Filling Machine
3.8kw Automatic Water Bottle Filling Machine
3.8kw Automatic Water Bottle Filling Machine
3.8kw Automatic Water Bottle Filling Machine
3.8kw Automatic Water Bottle Filling Machine
3.8kw Automatic Water Bottle Filling Machine
Specifications
Brand Name :
Aquatrin
Model Number :
CGF
Certification :
ISO CE
Place of Origin :
China
MOQ :
1unit
Price :
USD12000-50000 1Set
Payment Terms :
L/C, T/T
Supply Ability :
10units per month
Delivery Time :
45days
Packaging Details :
wooden package
Packaging Type: :
Bottles
Type: :
Filling Machine
Applicable Industries: :
Food & Beverage Factory
Condition: :
New
capacity :
3000BPH
model :
CGF8-8-3
Description
Full Automatic 3000BPH Bottle Water Filling Bottling Packing Machine Production Line
Product Description
This Machine mainly used in the water filling operations,the three function of bottle washing,filling and capping are composed in one body of the machine ,the whole process is automatic ,it is conveniently turnked to adjust the machine to fill various types of bottles ,the filling operation is faster and more stable due to the advanced filling valve technology ,The famous brand programeed controller (PLC) is adopted to control the machine runs automatically .it is a ideal perferred equipment for beverage makers .
3.8kw Automatic Water Bottle Filling Machine
3.8kw Automatic Water Bottle Filling Machine

Technical parameters

Model
CGF14-12-4
CGF18-18-6
CGF24-24-8
CGF32-32-10
CGF40-40-12
Capacity(500ml)(B/H)
4000
6000
10000
13000
15000
Filling precision
<=+5(liquid level)
Filling pressure
<=0.4Mpa
Bottle height
160-320mm
PET bottle specification
Bottle diameter 50-115mm,Height160-320mm
Suitable cap shape
Plastic screw cap or crown cap
Total power
4.4
5.2
6.2
6.2
7.5
Overall dimensions
2250*1650*2250
2600*1965*2250
2980*2200*2250
3880*2200*2250
4000*2250*2500
Weight(kg)
2500
3500
4500
6000
7200
Washing Part
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution
3.8kw Automatic Water Bottle Filling Machine

  • Filling Part

High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose

3.8kw Automatic Water Bottle Filling Machine

Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head

3.8kw Automatic Water Bottle Filling Machine

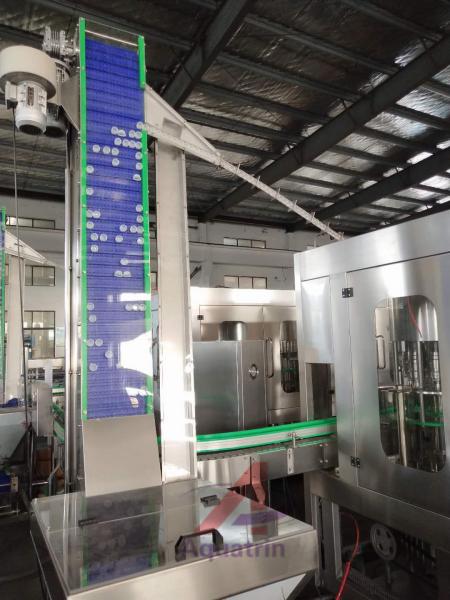

Cap loading machine

3.8kw Automatic Water Bottle Filling Machine

3.8kw Automatic Water Bottle Filling Machine

We suplly Free Factory Layout design

3.8kw Automatic Water Bottle Filling Machine

We suplly Free Bottle Shape design

3.8kw Automatic Water Bottle Filling Machine

3.8kw Automatic Water Bottle Filling Machine
5. Labeling Machine
This bottle labelling machine is equipped with SS304 cover and aluminumalloy structure. It is suitable for the round bottle,square bottle, oval bottle.
Servo motor controls cutting operation to last the blade service time and make label more accurate. It owns automatic computer
control, automatic detection, automatic positioning, fast label replacement, accurate label cutting, colour HMI with English and
other characteristic.

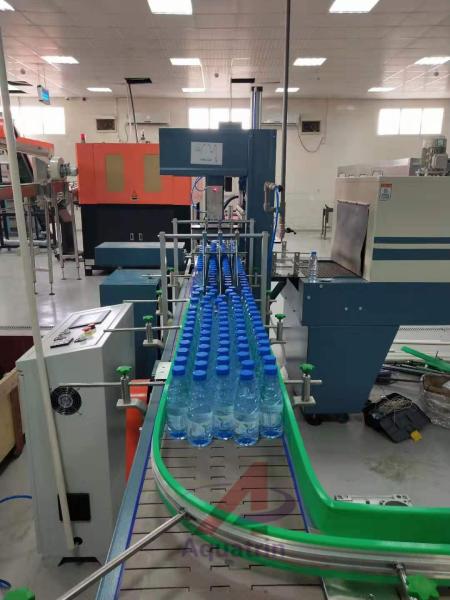

6. Shrink Wrapper Packaging Machine
The machine is developed especially for mineral water, beverage, wine, beer, product and soon.
Infusion medicine bottle combination packaging, with stable function, and the packed articles.
Tight and orderliness. It can be handled as a single pushing machine when high speed demanded.

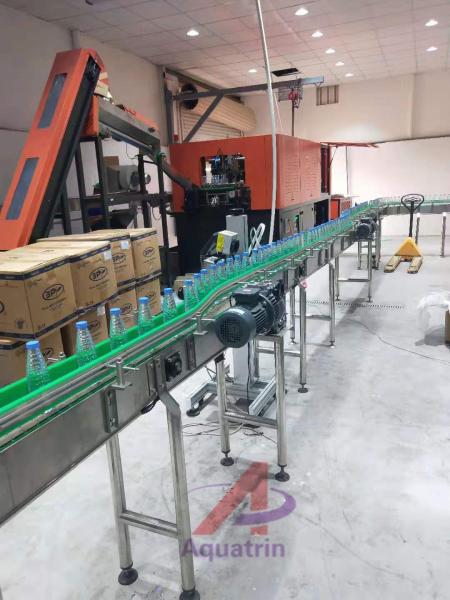

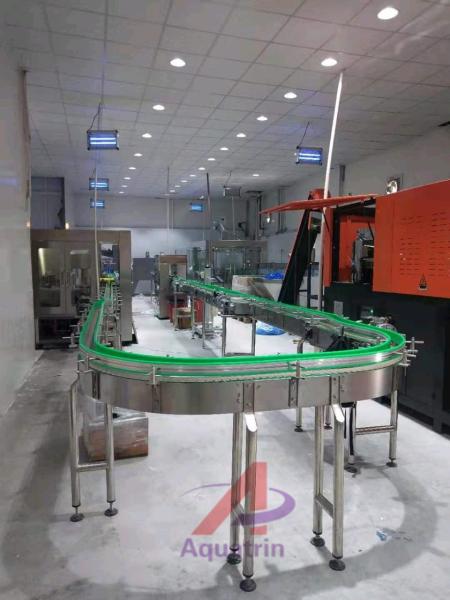

Air Conveyor

This conveyor is mainly used to convey empty PET bottles form bottle blowing machines or bottle sorting machines to filling machines. The air inside is filtered and make the bottles clean. The conveying speed and efficiency is high and can meet the requirement of high speed filling machines. It has no damage to bottle body. The arrangement form is flexible and includes
horizontal transmission, vertical transmission and turning transmission.

Siemens Air Fan with Adjustor

The wind blowing port is made of 1.5mm thick stainless steel 304 plate. It uses standard steel stamping molding and then bending and welding.
The guardrail of bottles uses standard aluminum alloy with PE material sheath.The standard model is M-746.
The fan uses centrifugal fan (model Y90L-2) equipping with tmedium efficiency filter to ensure that the bottle mouth is clean.

Packing & Delivery

3.8kw Automatic Water Bottle Filling Machine
