High Speed 250W BLDC Motor Sliding Gate Operator with Smart Function and Rated Power of 250W
High Speed 250W BLDC Motor Sliding Gate Operator with Smart Function and Rated Power of 250W
High Speed 250W BLDC Motor Sliding Gate Operator with Smart Function and Rated Power of 250W
High Speed 250W BLDC Motor Sliding Gate Operator with Smart Function and Rated Power of 250W
Specifications
Brand Name :
SINOMATIC
Model Number :
GA1000DC
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union, , credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Rated Power :
250W
Remote Control Mode :
Single button mode
Frequency :
433.92MHz
Working Duty :
S2, 20min
Warranty :
1 year
Power Supply Range :
AC220V/110V±10%; DC24V
Smart Function :
Soft start and stop
Driven Mode :
Gear
Color :
Black
Package :
Carton box
Shell :
Waterproof
Soft Stop :
-20°C~70°C
Description
High Speed 250W BLDC Motor Sliding Gate Operator
Professional Installation Guidelines
The GA800DC/GA1000DC Sliding Gate Automation Kit is engineered to power gates weighing up to 800kg (GA800DC) or 1000kg (GA1000DC), with maximum gate lengths of 8 meters.

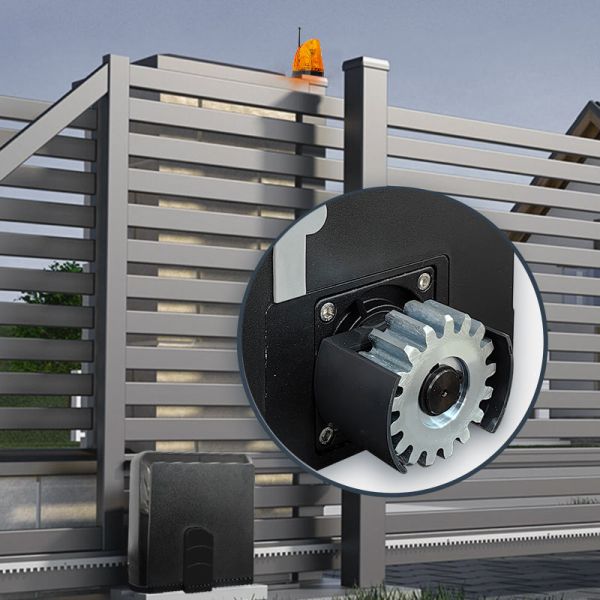

Gate movement is achieved through the rotating output gear of the gate opener driving a gear rack (sold separately) attached to the moving gate.
Operation requires a single press of the remote control to open, and another to close - a safety feature ensuring secure operation.
The opener must be installed within private property boundaries, never externally to the property perimeter.
Important Safety Notice: All maintenance and modifications must be performed with power disconnected. Any work on AC power components requires a licensed electrician.
Required Installation Tools
  • Tape measure
  • Level
  • 12mm concrete drill and hammer (for expansion screws)
  • Phillips head screwdriver
  • Straight screwdriver
Advanced Product Features
  • Soft start and slow stop operation
  • Automatic reverse when encountering obstacles
  • Adjustable motor output force, stall force, and slow stop distance
  • Automatic close with adjustable waiting time
  • Partial opening function for pedestrian access
Technical Specifications
Specification GA800DC GA1000DC
Power Supply 110VAC/60Hz; 220VAC/50Hz; DC24V
Motor Power 200W 250W
Gate Moving Speed 18m/min 24m/min
Maximum Loading Weight 800kg 1000kg
Remote Control Distance ≥30m
Remote Control Mode Single button mode / Three button mode
Limit Switch Spring/Magnetic limit switch
Working Duty S2, 20min
Frequency 433.92MHz
Working Noise ≤56dB
Working Temperature -20℃~+70℃
Overall Dimensions 293x247x300mm
Package Weight 12.6kg 13kg
Standard Unit Components
  • Gate Motor
  • Control board & box
  • 2 remote controls
  • 12V/2.5Ah lithium battery
  • Mounting plate
  • Manual release key
  • User manual
  • Bolts & nuts
Optional Accessories
  • Metal or Nylon Gear Rack (order according to gate length)
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
  • Solar panel
  • Backup batteries
  • Additional remote controls (requires pairing)
  • Infrared photocell for obstacle detection
  • Wireless keypad for secure code access
  • Wired control for external push-button operation
  • Alarm lamp for operational alerts
