AC 110V Chain Drive PY500ACL Magnetic Limit Switch Sliding Gate Opener Gate Operator
AC 110V Chain Drive PY500ACL Magnetic Limit Switch Sliding Gate Opener Gate Operator
AC 110V Chain Drive PY500ACL Magnetic Limit Switch Sliding Gate Opener Gate Operator
AC 110V Chain Drive PY500ACL Magnetic Limit Switch Sliding Gate Opener Gate Operator
Specifications
Brand Name :
SINOMATIC
Model Number :
PY500ACL
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T, Western Union, , credit card/Cash/Alipay, L/C, D/A, D/P
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Loading Capacity :
600kg
Gate Opening Speed :
11-13m/min
Gate Closing Speed :
11-13m/min
Remote Control Range :
30m
Max Gate Weight :
600 KG
Frequency :
433.92MHz
Gross Weight :
16.5 KG
Soft Stop :
-20°C~70°C
Packing Material :
Carton
Safety Features :
Infrared Sensor, Auto Stop/Reverse
Description

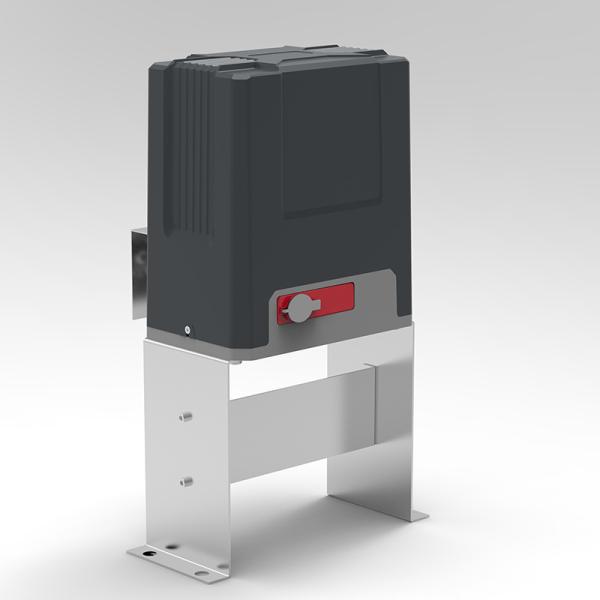

AC 110V Chain Drive PY500ACL Magnetic Limit Switch Sliding Gate Opener
The PY500ACL Sliding Gate Automation Kit is engineered to power the opening and closing motion of gates weighing up to 600kg with lengths up to 8 meters. The standard kit includes a 6-meter chain; for gates exceeding 5.5 meters in length, consider extending the chain for optimal performance.
Product Features
  • AC motor with integrated control unit
  • Keypad and external button interface compatibility
  • Alarm lamp, photo beam & safety beam interface
  • Optional auto-close functionality
  • Soft start and slow stop operation (Smart version)
  • Auto-reverse safety feature when encountering obstacles during closing (Smart version)
  • Manual release key for emergency operation
Technical Specifications
Model PY500ACL
Power Supply 110VAC/60Hz
Motor Power 150W
Gate Moving Speed 11-13m/min
Maximum Loading Weight 600KG
Remote Control Distance ≥30m
Remote Control Mode Single button mode
Limit Switch Magnetic limit switch
Working Noise ≤60dB
Working Duty S2, 20min
Remote Control Capacity Standard: 20; Intelligent: 40
Remote Frequency 433.92 MHz
Working Temperature -20°C - +70°C
Package Weight 16.42KG
Standard Unit Contents
  • Gate Motor
  • Control board & box
  • 2 remote controls
  • Manual release key
  • User manual
  • Bolts & nuts
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack (order according to gate length)
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
AC 110V Chain Drive PY500ACL Magnetic Limit Switch Sliding Gate Opener Gate Operator
