RS485 Communication 24VDC Brushless Motor Intelligent Boom Barrier Gate With 180 Degree Folding Arm
RS485 Communication 24VDC Brushless Motor Intelligent Boom Barrier Gate With 180 Degree Folding Arm
RS485 Communication 24VDC Brushless Motor Intelligent Boom Barrier Gate With 180 Degree Folding Arm
RS485 Communication 24VDC Brushless Motor Intelligent Boom Barrier Gate With 180 Degree Folding Arm
Specifications
Brand Name :
SINOMATIC
Model Number :
DZ-130
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Housing Color :
Yellow, gray, red
Housing Material :
Carbon Steel, 2mm cold-roller sheet
Boom length :
Max 6M (customized)
Working temperature :
-35°to 85°
Motor power :
160W

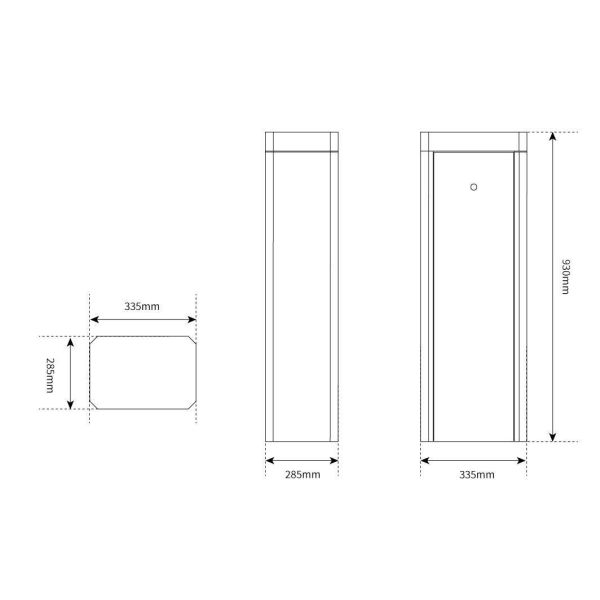

Housing Size :
335*285*930mm
Usage :
Road Traffic Safety and Access control
Remote control frequency :
418/433 Mhz
Description
Product description
Thank you for purchasing our company's 2nd brushless barrier gate product. This product utilizes the latest mold design technology, die-casting manufacturing technology, and
brushless control speed regulation technology. The left and right arm direction can be quickly interchanged, and the clutch-free design enhances reliability and ease of use. The
motor features a two-stage gear and worm gear transmission system, along with an arc-shaped curved arm four-link structure, ensuring quick and smooth raising and lowering
of the barrier arm. It is easy to maintain and has a long service life.
Key Functions & Features
  • Adjustable operation speed (1.5 to 6 seconds)
  • Quick arm direction interchange capability
  • Barrier gate up & down signal relay switch output
  • R&G traffic light relay switch signal output
  • External loop detector signal anti-smashing interface
  • Infrared sensor signal anti-smashing interface
  • Count mode interface for traffic management
  • Arm swing-out function to prevent damage from vehicle impact
  • High-sensitivity auto reverse function with adjustable intensity
  • Parking system integration interface
Technical Specifications
Working Temperature (Motor) -35℃ to +85℃
Rated Voltage DC 24V
Running Speed 1.5 to 8 seconds
Rated Current 8.58A
Rated Power 140W
No-load Speed 1850 rpm
Rated Speed 1400 rpm
Output Power 56.8 N.m
Relative Humidity ≤90%
Remote Control Distance ≤100M (open area)
IP Rating IP44
Maximum Arm Length 6 Meters
Direction Interchange Procedure
The barrier direction can be easily interchanged following these 6 steps:
  • Step 1: Remove M8X20 inner hexagonal screw and take out machine core
  • Step 2: Move electrical supporting plate from left to right side
  • Step 3: Remove M10*30 fixed screw on boom tray
  • Step 4: Use M14*150 screw to pull out boom tray head
  • Step 5: Install boom tray head from original left to right side (or vice versa)
  • Step 6: Return machine core to case and secure with M8*20 hexagonal screw
No additional adjustments required after direction interchange.
Package Contents
  • 1 Vehicle Barrier Gate Unit
  • 1 Arm Boom (1m to 6m, customizable)
  • 1 Control Panel (built inside)
  • 2 Remote Controllers
  • 1 Push Button
  • 1 User Manual
Order Process
  • Inquiry: Provide detailed requirements for product recommendation
  • Quotation: Official quotation with clear specifications
  • Invoice: Issued upon quotation confirmation
  • Payment: Full payment for samples, 30% deposit for bulk production
  • Production: 15-25 working days for bulk orders
  • Delivery: By sea, air, or courier with packaging documentation
Service & Warranty
Comprehensive service support for long-term reliability:
  • One year free servicing (arm excluded)
  • Lifetime charged servicing available
  • Technical support provided
Charged Servicing Conditions
  • Damage from incorrect installation
  • Damage from improper voltage application
  • Surface damage from improper installation or use
  • Damage from natural disasters
  • Overdue warranty claims
  • Services outside promised scope
