Functional Features

1. Adjustable Operation Speed: The operation speed of the barrier gate can be adjusted according to specific needs, providing flexibility in different application scenarios.

2. Adjustable Slow - up and Slow - down: Allows for smooth start and stop of the barrier arm, reducing impact and wear.

3. Adjustable Limit Position: Enables precise setting of the barrier arm's opening and closing positions.

4. Quick Interchange of Left and Right Directions: Facilitates easy adaptation to different installation and traffic flow requirements.

5. Manual Operation in Case of Power Failure: Ensures the barrier arm can be operated manually when there is a power outage, maintaining basic access control functionality.

6. 418 Frequency Learning Function: Prevents the duplication of remote controllers, enhancing security and avoiding interference.

7. Infrared Photocell Sensor IO Port Signal Input Function: Allows integration with infrared sensors for enhanced detection capabilities.

8. Vehicle Loop Detector, Radar, and IO Port Anti - vehicle - collision Signal Input Functions: Enables effective detection of vehicles and prevention of collisions.

9. UP, DOWN and STOP IO Port Signal Input Functions: Provides basic control signal input options for simple operation.

10. Counting (Vehicle Fleet) Function: Can count the number of vehicles passing through, useful for traffic statistics and management.

11. LED Light IO Port Output Function: Supports connection with LED lights for status indication or other purposes.

12. Traffic Light IO Port Signal Output Function: Allows coordination with traffic lights for better traffic management.

13. Up and Down in Place, Normally Open and Normally Closed Signal Output Functions: Offers diverse signal output options for integration with other systems.

14. RS485 Network Communication Output Function: Enables network communication for remote monitoring and control.

15. Delayed Lowering Function: Provides a delay in lowering the barrier arm, which can be useful in specific traffic scenarios.

16. Obstacle - encountered Return Function: When the barrier arm encounters an obstacle during closing, it will return to avoid damage.

17. Automatic Barrier Arm Lifting Function in Case of Power Failure: Ensures the barrier arm is in a safe position during power outages.

18. Single - key Cyclic Lifting and Lowering Function on the IO Port: Allows for convenient cyclic operation of the barrier arm with a single key.

19. Vehicle Loop Detector with Normally Open and Normally Closed Functions: Enhances the flexibility of vehicle detection and response.

20. One - vehicle - one - barrier Anti - evasion Function: Prevents unauthorized vehicle evasion, ensuring effective access control.

21. Anti - collision Alarm Function (Extra Charges Apply): With additional installation of an alarm device and sensors, it can provide anti - collision alarm functionality.

22. Fire Linkage Signal Input Function: Enables integration with fire alarm systems for coordinated response in case of fire emergencies.

23. IO Port Shutdown Signal Input Function: Allows for external control of the barrier gate's shutdown.

24. Ethernet Communication: Facilitates network - based communication for remote management and monitoring.

Safety Features

1. Auto - reverse Function: When the barrier arm meets obstacles during its closing process, it will automatically open to reduce damage to vehicles, pedestrians, and the barrier itself.

2. Ground Sensing Anti - smashing: When the barrier arm is falling, upon receiving a ground - sensing signal, it will automatically rise. It won't fail during the triggering period and will automatically fall again once the ground - sensing signal is restored to ensure safety, effectively preventing smashing of vehicles or pedestrians.

3. Ground Sensing Priority Design: When the barrier arm is falling, if an emergency occurs, as long as the ground - sensing signal is received, the barrier will execute the opening and anti - smashing instructions regardless of whether it is in the opening or closing state, ensuring the highest level of safety.

4. Installation of Anti - smash Rubber Strips and High - density Foam Round Arms: These can reduce the damage to people or vehicles caused by accidents, providing an additional layer of safety protection.

5. Arm Lifting Priority Design: When the barrier arm is lowering, it will immediately respond to the lifting command. When the barrier arm is rising, it will not respond to the lowering command, preventing potential conflicts and ensuring safe operation.

Product Dimensions, Structure and Wiring Instructions

1. Specification Dimensions

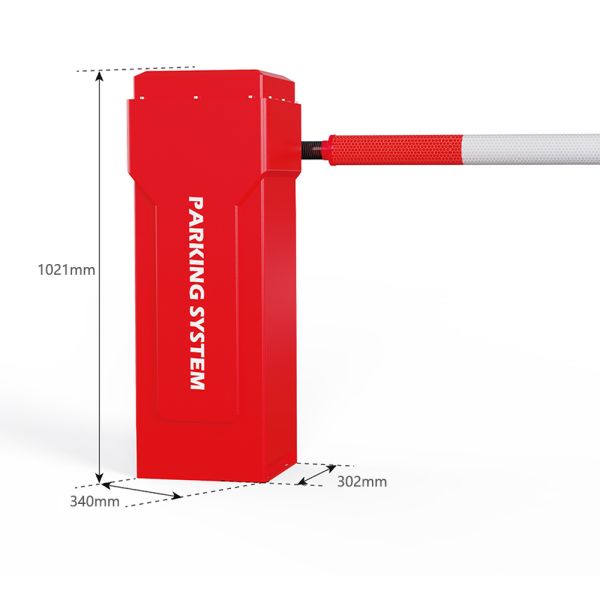

The product has specific dimensions as shown in the following diagram:

These dimensions are designed to ensure proper installation and integration with the surrounding environment while maintaining the product's functionality and performance. For detailed wiring instructions, please refer to the separate wiring diagram and manual provided with the product, which will guide you through the correct connection of power, control signals, and other necessary wiring to ensure the proper operation of the barrier gate.
