Automatic Barrier Gate with 100W Motor Intelligent Remote Control and Adjustable Speed for Parking Lot Traffic Barrier System
Automatic Barrier Gate with 100W Motor Intelligent Remote Control and Adjustable Speed for Parking Lot Traffic Barrier System
Automatic Barrier Gate with 100W Motor Intelligent Remote Control and Adjustable Speed for Parking Lot Traffic Barrier System
Automatic Barrier Gate with 100W Motor Intelligent Remote Control and Adjustable Speed for Parking Lot Traffic Barrier System
Specifications
Brand Name :
SINOMATIC
Model Number :
J-DZ201
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western Union,,D/A,L/C,D/P
Supply Ability :
10,000 pcs per month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton
Working voltage :
DC24V
Power supply :
AC220V/AC110C (±10%)
Boom length :
Max.6m
Working temperature :
-30°C to 60°C
Motor power :
100W
Housing Size :
985*320*235mm
Description
Automatic Boom Gate Intelligent Remote Control Traffic Barrier System 100W Motor Adjustable Speed For Parking Lot
The J-DZ201 Barrier Gate adopts an integrated gearbox installation, with a built-in fixed pressure plate, which is easy to install and move; It use 4 link transmission structure, bipolar reduction motor, high transmission efficiency, smooth operation; Equipped with a rebound function when encountering obstacles, effectively preventing falling booms from smashing the car; Long press the open button 6S to enter the fleet mode, and press the close button to end, which is convenient and fast.


Key Advantages
  • LED Backlight Design: Nighttime lighting mode serves as warning illumination
  • 100W High-Power Motor: Supports 6m super long straight boom or 4.5m fence boom
  • Fixed Clamping Plate: Pre-installed mounting brackets for easy installation and adaptability to various environments
  • Acid Dipping & Phosphating Treatment: Prevents paint peeling with extended outdoor lifespan
  • Multiple Interfaces: Includes microwave, infrared, radar, 485, Bluetooth, 4G module, and TTL interfaces
  • Remote Control Support: Monitor working status and receive fault alarms via mobile app
Technical Specifications
Housing Dimension 985×320×235mm
Housing Color Shiny Silver/Luxury Gold/Sand Gray
Motor Power 100W
Total Length 6m (including housing)
Boom Useful Length ≤ 5.68m
Opening/Closing Time 1.5s~3s/3s~6s adjustable
Working Voltage DC24V
Working Temperature -30℃ to 60℃
Insulation Level F
Protection Grade IP54
Main Functions & Features
  • Rounded housing design with fashionable, noble appearance
  • LED lighting enhances product visibility and style
  • Integrated gearbox with four-bar linkage transmission and bipolar reduction motor for efficient operation
  • 24V DC brushless control for precise and smooth performance
  • Multiple control methods including external buttons and remote control devices
  • Ground sensing anti-smashing function with automatic lowering and lifting capabilities
  • Priority opening function for emergency situations during descent
  • Multi-purpose design compatible with telescopic, curved, and fence boom types

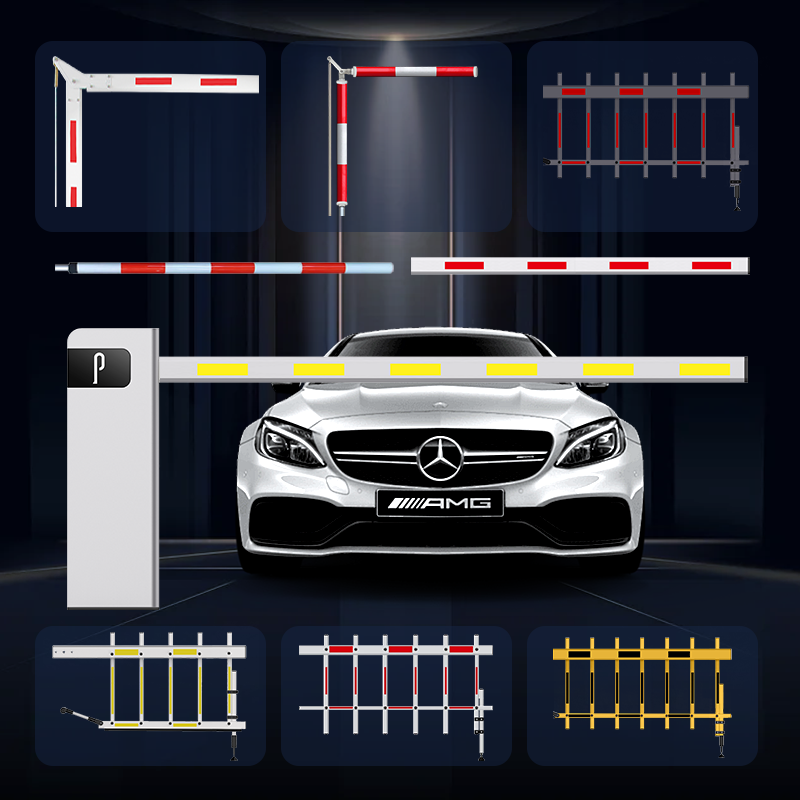

Various rod types available
