12-Meter Ultra Long Arm Carbon Fiber Automatic Barrier Gate for Large-Scale Traffic Control in Railway and Logistics Parks
12-Meter Ultra Long Arm Carbon Fiber Automatic Barrier Gate for Large-Scale Traffic Control in Railway and Logistics Parks
12-Meter Ultra Long Arm Carbon Fiber Automatic Barrier Gate for Large-Scale Traffic Control in Railway and Logistics Parks
12-Meter Ultra Long Arm Carbon Fiber Automatic Barrier Gate for Large-Scale Traffic Control in Railway and Logistics Parks
Specifications
Brand Name :
SINOMATIC
Model Number :
DZ-2307
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,,Alipay,Wechat,Credit card
Supply Ability :
1,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Housing Color :
Gray
Product name :
Ultra-long arm barrier gate
Housing material :
2.0 mm cold rolled steel sheet
Power supply :
AC220V/ AC110V(±10%)
Boom length :
Max.12 meters
Working temperature :
-40°to 85°
Warranty :
1 Year
Arm material :
Carbon fiber
Application :
Over-sized Traffic Flow Area, transit solution,Outdoor,tolling solution,Parking solution
Motor power :
200W
Description
12-Meter Ultra Long Arm Barrier Gate DZ-2307 For Large-Scale Traffic Control In Railway Road Logistics Park
Product Overview

The DZ-2307 12-meter long arm (also support 6m,7m, 8m, 9m, 10m ,11m) barrier is a high - performance traffic control device meticulously engineered for special scenarios. It is ideally suited for railway crossings, railway-road mixed traffic control intersections, port docks, and other large-scale occasions that demand extensive traffic management.

Functions

1. Adjustable speed of rise and fall.

2. Slow start and slow fall adjustable.

3. Limit role is adjustable.

4. Not divided into left and right directions.

5. Power outage can be hand cranked starting lever.

6. 433 frequency learning anti-duplication shaker.

7. Infrared countermeasures IO port signal input function.

8. Ground sensing, radar, IO port anti-smash signal input function.

9. Start-stop IO port signal input function.

10. Counting (fleet) function.

11. LED light IO port output function.

12. Traffic light IO port signal output function.

13. Landing and take-off in place of normally open and closed signal output function.

14. 485 network communication output function.

15. Time-delay function.

16. Return function in case of obstruction.

17. Power failure auto start function (need to add another power storage module).

18. IO port single key cycle function.

19. Ground sense normally open and close function.

20. One vehicle one pole anti-evasion function.

21. Anti-collision alarm function (need to charge another fee, add alarms and

sensors).

22. Fire-fighting linkage signal input function.

23. IO port shutdown signal input function.

24. 24V battery input function.

Technical Specifications
Parameter Detail
Product Model DZ-2307
Product Size 350×310×1180(mm)
Working Temperature -35℃ - +85℃
Running Speed 6s - 20s
Drive Method DC Brushless Motor
Power Supply Voltage DC24V/AC110V/220V 50/60 Hz
Rated Power 200W
Remote Distance ≤100m (Sunny Weather)
Relative Humidity ≤90%
Protection Grade IP54
Motor No-load Speed 1850r/min
Arm Length 6m - 12m

Application Advantages
Railway Crossings: The 12-meter long arm effectively blocks large areas, preventing unauthorized entry into railway operation zones. Fast 3-16s running speed ensures timely operation synchronized with train schedules.
Railway-Road Mixed Traffic Intersections: Comprehensive coverage of wide intersection areas reduces traffic conflicts. Stable operation withstands frequent opening and closing cycles in busy environments.
Port Docks: Excellent environmental adaptability maintains stable performance in varying weather conditions. Controls entry and exit of large transport vehicles to optimize logistics efficiency.

Safety features

1. Rebound in the event of obstruction: In the process of closing, if encounters objects blocking external obstruction, it will automatically switch to opening, to reduce the damage caused by mistakes.

2. Ground sensing anti-smash: gate bar in the process of falling, such as receiving the ground sensing signals, it will automatically star; triggered during the period of not falling rod, to be restored to the ground sensing signals, the gate bar automatically fall to ensure safety.

3. The ground sense priority design: gate pole in the process of falling, in case of emergency, whether in the open gate or close the gate operating state, as long as the ground sense signal is received, the gate will be performed to open the gate and anti-smash action.

4. Anti-smash rubber strip under the arm, can reduce the accident and cause injury.

5. The starting rod priority design, when the gate starts to drop the gate, give the starting rod instruction immediately respond to the starting rod, when the gate starts to start the rod, give the falling rod signal instruction gate does not respond to the drop of the gate lifting order.

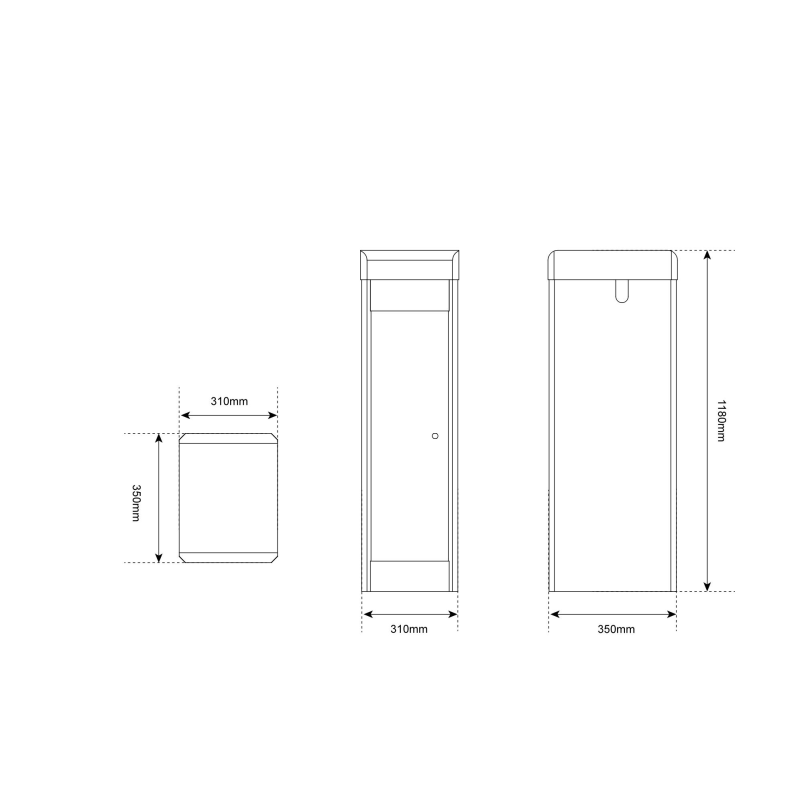

HOUSING DIMENSION


12-Meter Ultra Long Arm Carbon Fiber Automatic Barrier Gate for Large-Scale Traffic Control in Railway and Logistics Parks

Why Choose Our Barrier Gate
The DZ-2307 12-meter long arm barrier provides a reliable, high-performance solution for large-scale traffic control. Advanced engineering, powerful motor performance, and exceptional environmental adaptability make it the ideal choice for railway, mixed-traffic, and port dock applications. Whether prioritizing traffic safety or operational efficiency, the DZ-2307 delivers superior performance.
