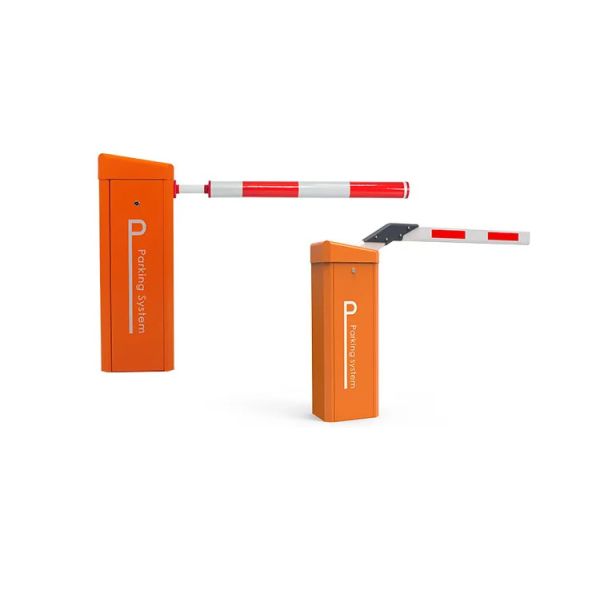

No Welding Design 0.9s Speed Servo-driven Smart Barrier Gate for Parking and Traffic Control
No Welding Design 0.9s Speed Servo-driven Smart Barrier Gate for Parking and Traffic Control
No Welding Design 0.9s Speed Servo-driven Smart Barrier Gate for Parking and Traffic Control
No Welding Design 0.9s Speed Servo-driven Smart Barrier Gate for Parking and Traffic Control
Specifications
Brand Name :
SINOMATIC
Model Number :
DZ-SF-138
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Housing material :
2.0 mm cold rolled steel sheet
Boom length :
Max.6m
Working temperature :
-35°to 85°
Warranty :
1 Year to 3 years
Arm material :
Aluminum alloy/Carbon fiber
Motor power :
200W
Keyword :
High Speed Servo Inverter Motor Automated Boom Barrier Parking Barrier Gate
Housing color :
Orange/Yellow/Gray etc
Description
No Welding Design 0.9s Parking Barrier 2nd Generation Servo-driven Speed Smart Barrier Gate
High-speed servo motor traffic barrier designed for toll stations with 10 million MTBF reliability, featuring advanced control systems and robust construction for demanding applications.
Product Overview
This is a 2nd - generation servo - driven high - speed smart barrier gate, specially designed for parking lot management and other access control scenarios. With its advanced technology and excellent performance, it provides an efficient and reliable solution for vehicle access control.
It is engineered for expressway toll stations, bus stations, shopping malls, airports, hospitals, and similar applications. It incorporates second-generation servo motor technology with integrated design and mold manufacturing for compact structure, high precision, and standardization.
Featuring planetary reducer transmission for high efficiency, long service life, no oil leakage, no blockage, and low noise operation. The barrier arm speed is adjustable from 0.9 to 8 seconds with remote control distance up to 100 meters in open conditions.
Motor no-load speed reaches 3000 RPM with lifetime exceeding 10 million cycles. Boom lengths available from 2.5 to 6 meters with curved connecting rod, hoisting mechanism, and three-link transmission design.
Barrier Arm Options
Multiple arm configurations available: straight arm/telescopic arm (standard), curved barrier arm, round shape arm, and fence arm. Pricing varies by arm type.
Advanced Control System
Digital signal processor (DSP) control core enables complex algorithms, network connectivity, and intelligent operation. Integrated drive circuit (IPM) detects faults and displays fault codes for rapid troubleshooting. Three-bar linkage design ensures rapid rise and stable fall.
Solar charging capability makes it ideal for unmanned applications including railway crossings, fire passages, oil stations, and mine tunnels, enabling fully automatic operation without grid electricity.
System Functions
  • Adjustable operation speed and limit angle
  • Adjustable slow up and slow down settings
  • Quick left and right direction interchange
  • Manual barrier arm operation during power failure
  • 433 frequency learning code anti-copy remote controller
  • Infrared photocell sensor I/O signal input
  • Loop detector and radar I/O signal anti-collision input
  • Up, down and stop I/O signal input
  • Counting (fleet) functionality
  • LED light and traffic light I/O signal output
  • Up and down in place, normally open and closed signal output
  • RS485 communication output
  • Delay arm drop and auto-reverse functions
  • Automatic lifting when power is off (requires additional power storage module)
  • I/O port single-key cycle up and down function
  • Loop detector normally open and closed function
  • Anti-toll evasion with single vehicle per signal
  • Anti-collision alarm function (requires additional alarm and sensor)
  • Fire linkage signal input
  • I/O port closes signal input
  • 24V storage battery input
Technical Specifications
Parameter Specification
Cabinet Size 335*335*925(mm)
Working Temperature -35℃ to +85℃
Power Supply AC110V/220V; DC24V
Open/Close Speed 0.9Sec-8Sec (Adjustable)
Rated Power 200W
Driving Method Servo Motor
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP54
Motor No-load Speed 3000r/min
Max Boom Length 3m-6m
