PMSM 24V Servo Motor 200W Rated Power Automated Boom Barrier Gate with 6m Arm Length for Toll Barrier Gate System
PMSM 24V Servo Motor 200W Rated Power Automated Boom Barrier Gate with 6m Arm Length for Toll Barrier Gate System
PMSM 24V Servo Motor 200W Rated Power Automated Boom Barrier Gate with 6m Arm Length for Toll Barrier Gate System
PMSM 24V Servo Motor 200W Rated Power Automated Boom Barrier Gate with 6m Arm Length for Toll Barrier Gate System
Specifications
Brand Name :
SINOMATIC
Model Number :
DZ-SF-138
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Material :
Carbon Steel 2mm cold-roller sheet
Power supply :
AC220V/ AC110V
Application :
Over-sized Traffic Flow Area,transit solution,Outdoor,tolling solution,Parking solution
Size :
335*335*925mm
Frequency :
60HZ/50HZ
Arm length :
Max. 6m
Motor :
DC24V Servo Motor Rated power 200W
Environment temperature :
-35℃~85℃
Description
PMSM 24V Servo Motor 200W Rated Power Automated Boom Barrier Gate For Toll Barrier Gate System
High-speed servo motor traffic barriers designed for toll stations with 10 million MTBF reliability, featuring advanced control systems and robust construction for demanding applications.
Product Overview

DZ-138 is able to be widely use for expressway toll station, bus station, shopping mall, airport, hospital and so on. It adopts second-generation servo motor, which uses international leading technology integrated design, mold manufacturing, compact structure, high precision, high consistency and standardization, planetary reducer transmission, high efficiency, long life, no oil leakage, no blockage , low noise and other characteristics.

The arm speed can be adjusted from 0.9 seconds to 8 seconds. The remote control distance is less than 100 meters in the open sunny place. The motor no-load speed can reach to 3000 revolution per minute ans lifetime is more than 10 million. The boom length can be chosen from 2.5 meters to 6 meters. Curved connecting rod, hoisting and planetary reducer design, three-link transmission, no welding bracket, arm direction can be freely interchanged, independent research and development controller which adopts ST chip and has large memory, can realize complex alorithm.

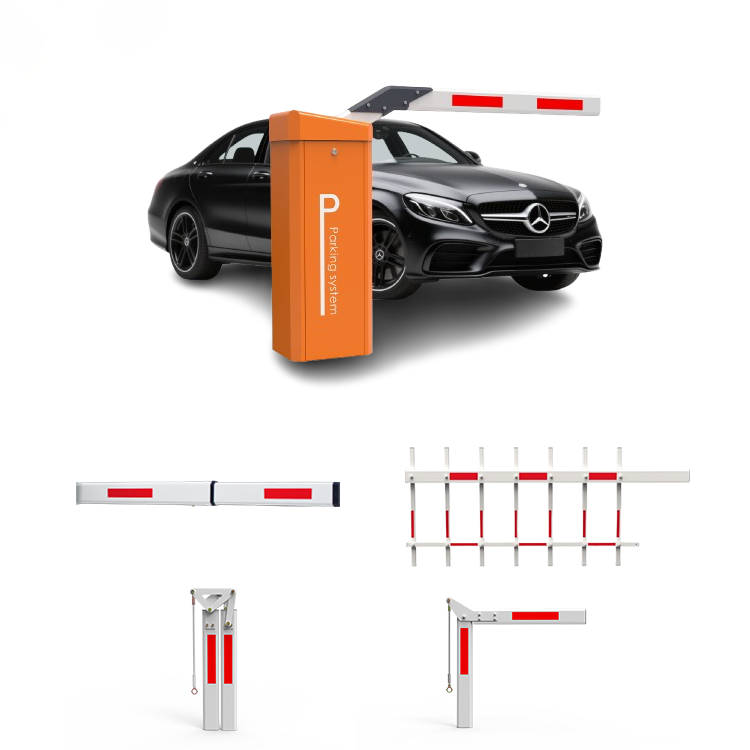

We also have different arms for you to choose, such as straight arm/telescopic arm (standard), curved barrier arm, round shape arm, and fence arm. Different price for different arms. Default is straight or telescopic arm.

Advanced Control System
Digital signal processor (DSP) control core enables complex algorithms, network connectivity, and intelligent operation. Integrated drive circuit (IPM) detects faults and displays fault codes for quick troubleshooting. Three-bar linkage design ensures rapid rise and stable fall.
Solar charging capability makes it ideal for unmanned applications including railway crossings, fire passages, oil stations, and mine tunnels, enabling fully automatic operation without grid electricity.
System Functions
  • Adjustable operation speed and limit angle
  • Adjustable slow up and slow down settings
  • Quick left and right direction interchange
  • Manual barrier arm operation during power failure
  • 433 frequency learning code anti-copy remote controller
  • Infrared photocell sensor I/O signal input
  • Loop detector and radar I/O signal anti-collision input
  • Up, down and stop I/O signal input
  • Counting (fleet) functionality
  • LED light and traffic light I/O signal output
  • Up and down in place, normally open and closed signal output
  • RS485 communication output
  • Delay arm drop and auto-reverse functions
  • Automatic lifting when power is off (requires additional power storage module)
  • I/O port single-key cycle up and down function
  • Loop detector normally open and closed function
  • Anti-toll evasion with single vehicle per signal
  • Anti-collision alarm function (requires additional alarm and sensor)
  • Fire linkage signal input
  • I/O port closes signal input
  • 24V storage battery input
Technical Specifications
Item Parameter
Cabinet Size 298*340*928(mm)
Working Temperature -35℃ to +85℃
Power Supply AC110V/220V; DC24V
Open/Close Speed 0.9Sec-8Sec (Adjustable)
Rated Power 200W
Driving Method Servo Motor
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP54
Motor No-load Speed 3000r/min
Max Boom Length 3m-6m
