Automatic Boom Barrier Gate with BLDC System 6m Boom Length and 5 Million MCBF for Secure Parking Lot
Automatic Boom Barrier Gate with BLDC System 6m Boom Length and 5 Million MCBF for Secure Parking Lot
Automatic Boom Barrier Gate with BLDC System 6m Boom Length and 5 Million MCBF for Secure Parking Lot
Automatic Boom Barrier Gate with BLDC System 6m Boom Length and 5 Million MCBF for Secure Parking Lot
Specifications
Brand Name :
SINOMATIC
Model Number :
DZ-BLDC
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,,Alipay,Wechat,Credit card
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton
Power supply :
AC220V/ AC110V(±10%); DZ24V
Relative Humidity :
≤90%
Running speed :
1.5s-6s
Interface :
Loop detector, Infrared Beam, Radar detector, Traffice light, Camera etc.
MCBF :
5 million time
Working temperature :
-35°C + 80°C
Description
Automatic Traffic Boom Barrier Gate Control Board BLDC System for Secure Parking Lot Security & Protection
Professional traffic barriers designed for parking lot security and protection applications.
Key Features and Functions
  • Adjustable operation speed with customizable slow up/slow down settings
  • Adjustable limit angle with quick left/right direction interchange
  • Manual barrier arm operation during power failures
  • 433MHz frequency learning code anti-copy remote controller
  • Infrared photocell sensor IO signal input function
  • Loop detector and radar IO signal anti-collision input
  • Up, down, and stop IO signal input functionality
  • Integrated counting function
  • LED light and traffic light IO signal output
  • Up/down position and normally open/closed signal output
  • RS485 communication output capability
  • Delay arm drop and auto-reverse functions
  • Automatic lifting when power is off
  • IO port single-key cycle up/down operation
  • Loop detector normally open/closed functionality
  • One car, one arm anti-toll evasion system
  • Anti-collision alarm function (alarm and sensor optional)
  • Fire linkage signal input capability
  • IO port close signal input function
  • Fleet (Peak Mode) operation support
Technical Specifications

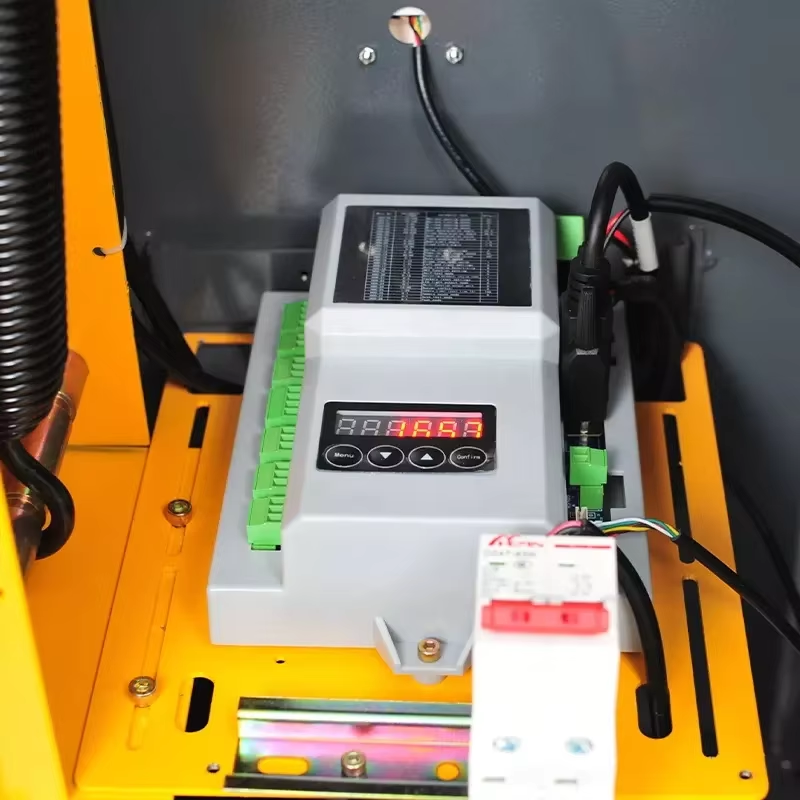

Name Boom Barrier Control Board DZ-BLDC
Usage Barrier Gate in Parking System
Boom Length Maximum 6m
Speed 1.5S-6s
Working Voltage 220V±10%, 50HZ
Working Temperature -35°C to +80°C
Humidity <90%RH
Remote Control Distance 30-100M in open space
Interface Loop Detector, Infrared Beam
