Wireless Battery Infrared Safety Beam Photocell Sensor with IP54 Waterproof and 20m Receiver Range
Wireless Battery Infrared Safety Beam Photocell Sensor with IP54 Waterproof and 20m Receiver Range
Wireless Battery Infrared Safety Beam Photocell Sensor with IP54 Waterproof and 20m Receiver Range
Wireless Battery Infrared Safety Beam Photocell Sensor with IP54 Waterproof and 20m Receiver Range
Wireless Battery Infrared Safety Beam Photocell Sensor with IP54 Waterproof and 20m Receiver Range
Wireless Battery Infrared Safety Beam Photocell Sensor with IP54 Waterproof and 20m Receiver Range
Specifications
Brand Name :
SINOMATIC
Model Number :
IR11
Certification :
CE
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Alipay,Paypal,Credit Card
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Use :
Security
Working current (24VDC) :
receiver：≤40mA emitter：65uA
Photocell wavelength :
940nm
Series :
photocell
Receiver range :
≥20m
Internal Rotation system adjusted Angle :
±90°
Working temperature :
-20℃~＋60℃
Size / Dimension :
128*50*32mm
Protection grade :
IP54
Description
Automatic Gate Wireless Battery Infrared Safety Beam Photocell Beam Sensor with Presence Function
Automatic Gate Wireless Battery Infrared Safety Beam Photocell Beam Sensor with Presence Function. Garage Door Roller Shutter Sliding Swing Gate Opener Operator Motor Accessories New Infrared Battery Photocell Sensor.
Product Features
  • Low energy consumption <65μA
  • Anti-interference: ±5° angle
  • Receiver range: >20m
  • Not interfered by nearby installed photocell
  • IP class: IP54, Waterproof design against wind and rain
  • Emitter module 180° adjustment
  • Low battery warning
  • Wireless operation
Technical Specifications
Working Voltage Receiver: AC/DC 12-24V
Emitter: 2*1.5V AA alkaline battery
Working Current Receiver: ≤40mA
Emitter: 65μA
Photocell Wavelength 940nm
Angle of Opposite Emission ≤±5°
Receiver Range >20m
Internal Rotation System Adjusted Angle ±90°
Working Temperature -20℃ to +60℃
Waterproof Grade IP54
Relay Contact Loading Capacity 1A/30VDC

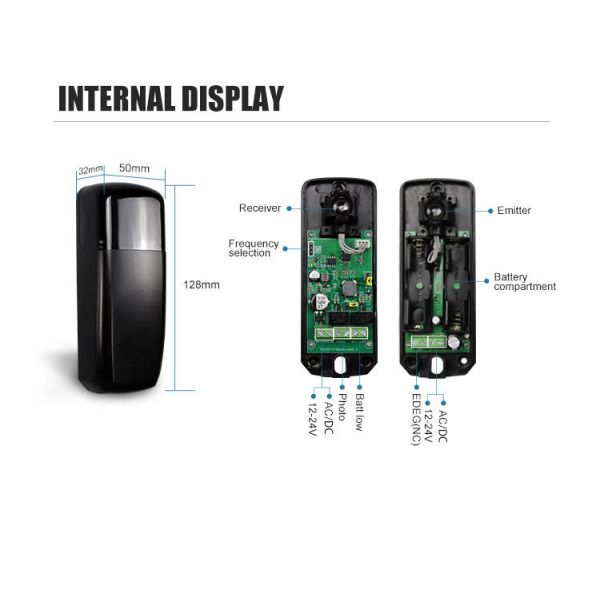

Size 128*50*32mm
Wireless Battery Infrared Safety Beam Photocell Sensor with IP54 Waterproof and 20m Receiver Range
Safety Instructions
  • This photocell is without any fuse, so please make sure the power is off before installation
  • Only use this system where it will not cause any danger to life or property during running failure or where security risks are eliminated
  • Please guarantee the products are used within effective working range
Wireless Battery Infrared Safety Beam Photocell Sensor with IP54 Waterproof and 20m Receiver Range
