DC24V Power Supply Dropbox Card Collector with 10 cm Wide Card Acceptance and Auto-Check Out Function for Visitor Management
DC24V Power Supply Dropbox Card Collector with 10 cm Wide Card Acceptance and Auto-Check Out Function for Visitor Management
DC24V Power Supply Dropbox Card Collector with 10 cm Wide Card Acceptance and Auto-Check Out Function for Visitor Management
DC24V Power Supply Dropbox Card Collector with 10 cm Wide Card Acceptance and Auto-Check Out Function for Visitor Management
DC24V Power Supply Dropbox Card Collector with 10 cm Wide Card Acceptance and Auto-Check Out Function for Visitor Management
DC24V Power Supply Dropbox Card Collector with 10 cm Wide Card Acceptance and Auto-Check Out Function for Visitor Management
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-DBX100
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
1,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Power supply :
DC24V
Power consumption :
Idle : AC 0.04A, DC 0.01A Operation : AC 0.28A , DC 4.71- 4.74A
Indicated light :
Dropbox fully occupied
Warranty :
1 year
Light blue :
Power on
Light green :
valid card
Light red :
drop box fully occupied
Description

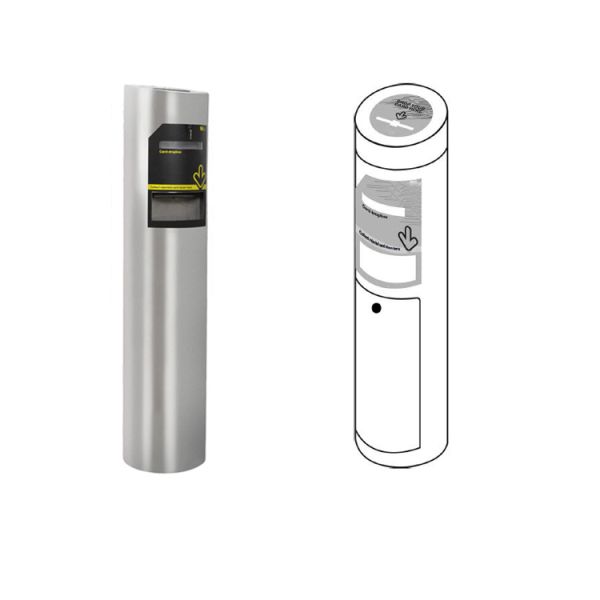

Dropbox Type Card Collector for Ticketing and Visitor Management System
This dropbox type card collector allows users to drop visitor cards into the unit to gain access for exit or entry. Designed as a highly affordable solution, it can be integrated with any access control reader for ticketing and visitor management applications.
Automated Visitor Management
When integrated with visitor management software, the dropbox enables automatic visitor check-out functionality. Visitors no longer need to return cards to reception counters - simply dropping the card into the unit automatically checks them out in the SE-VMS software records.
Card Compatibility
The dropbox accepts proximity cards with holders and pin clips. Valid visitor cards fall into the internal collection bin, while invalid cards are directed to the front exit tray.
DC24V Power Supply Dropbox Card Collector with 10 cm Wide Card Acceptance and Auto-Check Out Function for Visitor Management
Key Features
  • Accepts cards up to 10 cm wide
  • Compatible with any brand of access control reader installed internally
  • Visual indicator lights display operational status
  • Key-operated top cover for maintenance access
  • Key-operated bottom door for collection bin removal
  • Automatic card rejection when collection bin is full
  • Supports ticketing applications with reusable proximity cards
DC24V Power Supply Dropbox Card Collector with 10 cm Wide Card Acceptance and Auto-Check Out Function for Visitor Management DC24V Power Supply Dropbox Card Collector with 10 cm Wide Card Acceptance and Auto-Check Out Function for Visitor Management

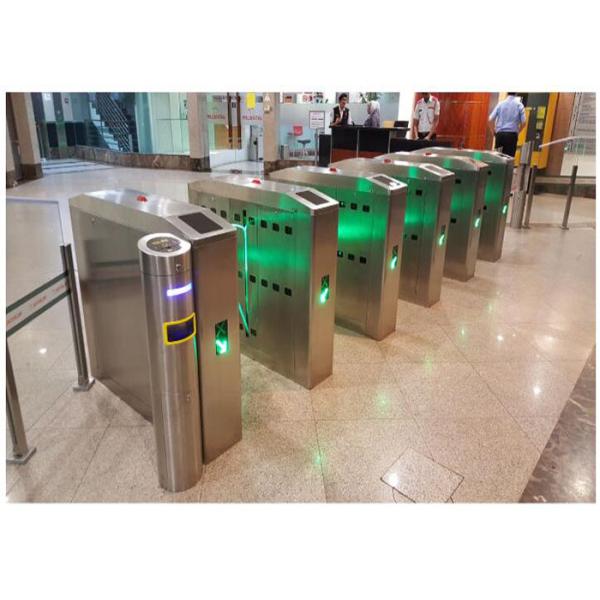

Site Implementation
DC24V Power Supply Dropbox Card Collector with 10 cm Wide Card Acceptance and Auto-Check Out Function for Visitor Management
Technical Specifications
Description Parameter
Power supply DC24V
Power consumption Idle: AC 0.04A, DC 0.01A
Operation: AC 0.28A, DC 4.71-4.74A
Indicated light Blue: Power On
Green: Valid card
Red: Dropbox fully occupied
System Benefits
This system streamlines visitor access control by allowing guests to easily drop visitor cards into the dropbox for entry and exit authorization. The automated process eliminates manual card handling at reception desks, making it ideal for large buildings, shopping malls, airports, and other high-traffic facilities. The validation system ensures only authorized cards grant access while rejected cards are immediately identifiable.
