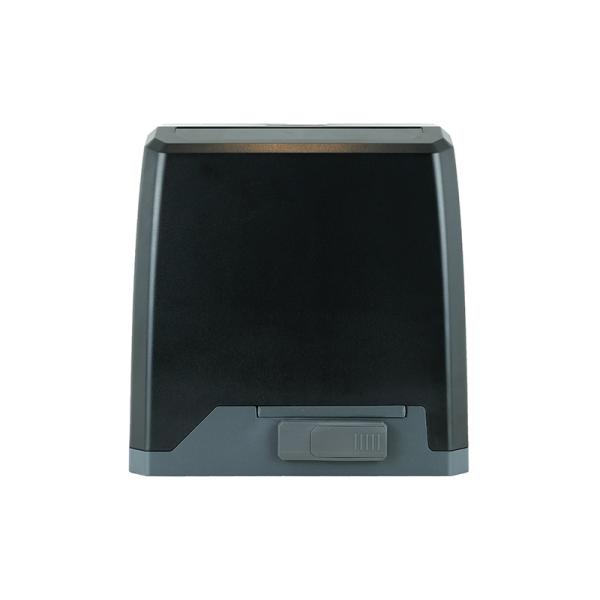

PY1200AC 110VAC/220VAC Automatic Gate Opener with 30m Remote Control and Automatic Stop and Reverse for Sliding Gates
PY1200AC 110VAC/220VAC Automatic Gate Opener with 30m Remote Control and Automatic Stop and Reverse for Sliding Gates
PY1200AC 110VAC/220VAC Automatic Gate Opener with 30m Remote Control and Automatic Stop and Reverse for Sliding Gates
PY1200AC 110VAC/220VAC Automatic Gate Opener with 30m Remote Control and Automatic Stop and Reverse for Sliding Gates
Specifications
Brand Name :
SINOMATIC
Model Number :
PY1200AC
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,credit card/Cash/Alipay,L/C,D/A,D/P
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Power supply :
110VAC/60Hz; 220VAC/50Hz
Motor power :
450W
Remote Control Distance :
≥30m
Package :
Carton box
Design Style :
Modern
Loading Capacity :
1200 KG
Description
Joytech AC Motor PY1200AC Automatic Gate Opener
450W motor designed for sliding gates up to 1200kg with 12m length capacity
Product Overview
The PY Series Sliding Gate Automation Kit provides reliable power for opening and closing gates up to 1200kg, 1800kg, or 2500kg in weight, with maximum lengths of 12 meters.
  • Oil lubrication system with heavy-duty construction
  • Compact, cost-effective design
  • Built-in control board or separate control box options
  • Keypad and single button interface
  • Alarm lamp, photo beam & safety beam interface
  • User-selectable auto-close function
  • Optional spring limit switch or magnetic limit switch
  • Manual key release for emergency operation
  • Automatic obstacle detection with safety reversal (Smart version)
  • Complete installation accessories included
Technical Specifications
Model PY1200AC
Power Supply 220V/50Hz; 110V/60Hz
Max. Gate Weight 1200KG
Motor Power 450W
Gate Moving Speed 11-13 m/min
Limit Switch Spring (mechanical) / magnetic
Remote Control Capacity 25 pcs / 44 pcs
Decoding / Frequency Rolling code / 433.92MHz
Work Duty S2 20min
Noise Level ≤58dB
Operating Temperature -20°C~70°C
Key Features
  • AC motor with built-in control unit
  • Keypad and single button interface options
  • Alarm lamp, photo beam and safety beam interface
  • User-selectable auto-close function
  • Soft start and slow stop (Smart version)
  • Auto-reverse function when hitting obstacles during closing (Smart version)
  • Manual key release for emergency operation
Standard Unit Includes
  • Gate Motor
  • Control board & box
  • 2 remote controls
  • Manual release key
  • User manual
  • Bolts & nuts
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack (order according to gate length)
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
  • Solar panel
  • Backup batteries
Manufacturer Information
SHENZHEN SINOMATIC TECHNOLOGY CO, LIMITED, located in Shenzhen China, is a high-tech enterprise specializing in R&D, production and sales of access control solutions. Our product lines include pedestrian access control turnstiles, vehicle barrier gates, hydraulic road bollards and blockers, and automatic gate operators. Our products are widely used in government facilities, installations, schools, hospitals, airports, terminals, tourist attractions, and parking lots. With exports to over 100 countries including Italy, Germany, UK, Spain, Russia, Canada, Mexico, Brazil, UAE, India, Malaysia, Singapore, Thailand, South Africa, Nigeria, and Kenya, we prioritize stable functionality and excellent performance while offering affordable pricing to establish win-win, long-term partnerships.
WARNING
Instructions must be read before installation. Please follow these instructions carefully, incorrect installation could affect gate operation.
When mounting and positioning this product, ensure the power cable is unplugged. The motor cover must be removed to mount the motor to the mounting plate or concrete footing. Any settings changes must be made by a licensed electrician. This product is only compatible with AC110V/220V power supply; DC backup battery or solar power is not supported.
