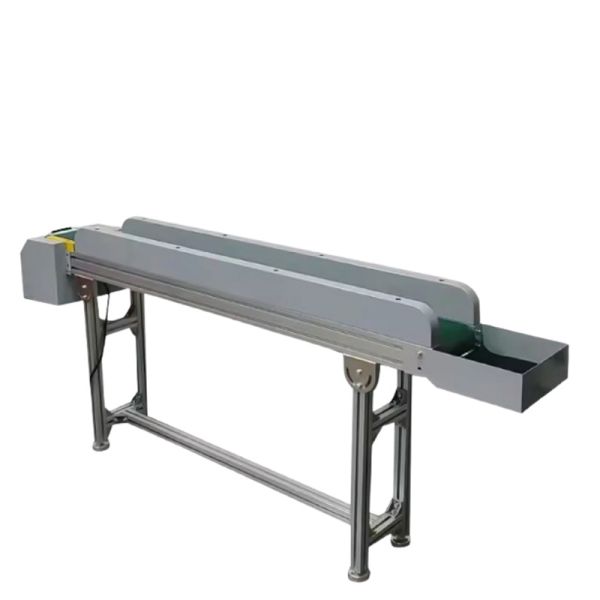

l Equipment name: mobile phone conveyor belt

l Power input: AC 220V

l Motor type: 24V DC brushless motor

l Switching power supply parameters: 24V 7.5A

l Grating parameters: 10-30V, optical axis spacing 20mm

Mechanical structure

l Width: Inner transmission width: bandwidth 170mm. (Customizable width)

l Height:

n Total height: 850mm, 100mm shielding is designed to ensure stable transmission of items during transmission, prevent items from shifting or falling, and shield the signal of the mobile phone detection door.

l Length: Total length 2050mm, which can meet the needs of item transmission over a certain distance and can be flexibly adjusted according to the actual production layout.

l Dimensions: The widest part is 250mm, the overall structure is compact, and the equipment footprint is minimized while ensuring the transmission function.

Functional characteristics

l Speed adjustment

n The advanced speed control system can achieve precise adjustment of the conveying speed within a certain range. The operator can make relevant settings through the adjustment buttons on the operation panel according to the conveying requirements of different items, and conveniently set the appropriate conveying speed. The speed adjustment range is [minimum speed value] to [maximum speed value] to meet diverse needs and improve efficiency and flexibility.

l Conveying time control

n It has an adjustable conveying time function, and the time required for the item to be conveyed from one end of the conveyor belt to the other end can be set in the control system. By setting the conveying time, it can be ensured that each item can be conveyed on the conveyor belt as required.

l Grating detection function

n A high-precision grating detection device is installed to detect items such as mobile phones. When the item is placed in the grating detection area, the grating sensor can quickly and accurately sense the existence of the item and transmit the signal to the control system.

l Emergency stop button

n Equipped with an easy-to-operate emergency stop button, installed in a conspicuous position on the conveyor belt. In emergencies such as equipment failure, object jamming or threat to personnel safety, the operator only needs to press the emergency stop button to immediately stop the conveyor belt.

Electrical system

l Power supply

n The external input AC 220V power supply is converted into a stable 24V DC power supply through the switching power supply to provide power support for the 24V DC brushless motor and other control circuits and sensors. The switching power supply has overvoltage protection, overcurrent protection and short circuit protection functions, which can ensure the electrical safety of the equipment under various abnormal conditions and prevent equipment damage or failure due to power problems.

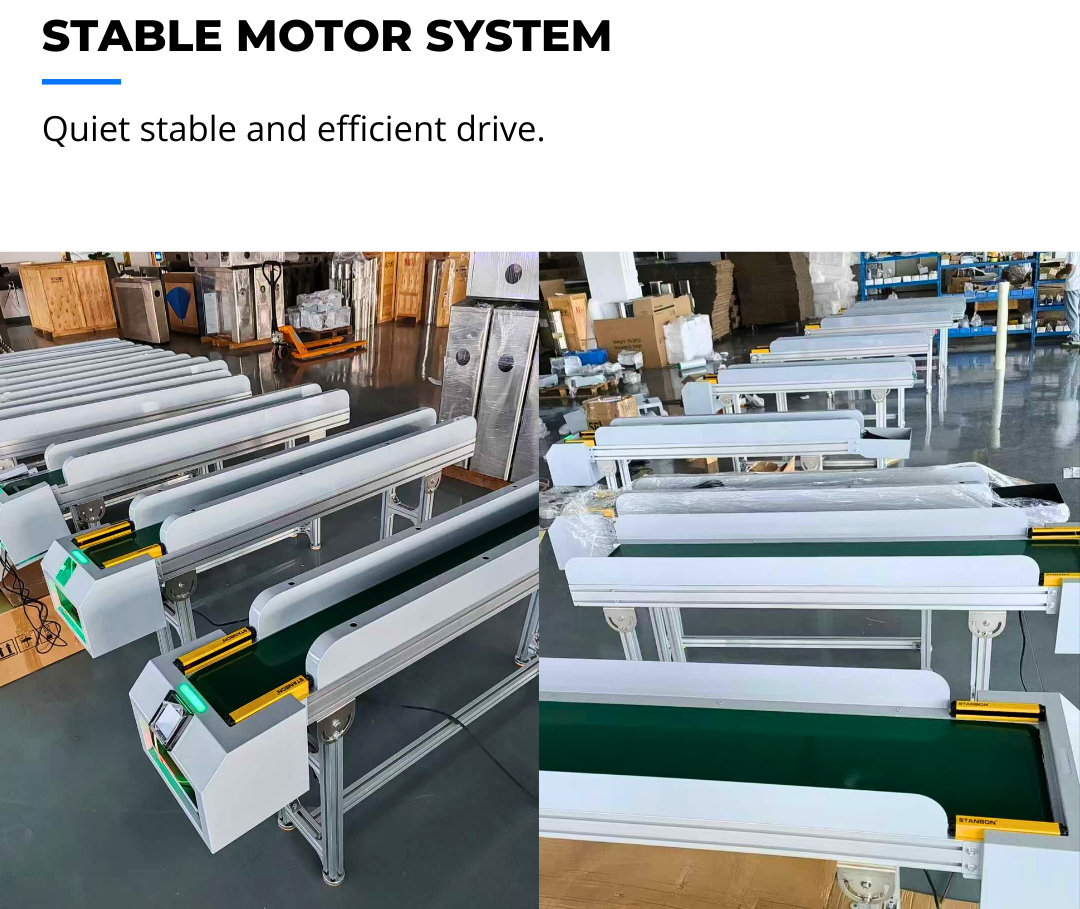

l Motor drive

n A special DC brushless motor driver is used to match the 24V DC brushless motor to achieve precise control of the motor. The motor driver receives speed and steering instructions from the control system, and controls the speed and rotation direction of the motor by adjusting the current and voltage of the motor, thereby achieving smooth operation and speed regulation of the conveyor belt.

l Control system

n A complete control system is built with a high-performance microcontroller as the core. The control system is responsible for receiving and processing input signals from devices such as grating sensors, operation panels, emergency stop buttons, etc., and generates corresponding control instructions according to preset programs and parameters to output to actuators such as motor drivers and display modules.
