High Security 304 Stainless Steel IP54 Waterproof Anti-Tailgating Full Height Turnstile for Access Control
High Security 304 Stainless Steel IP54 Waterproof Anti-Tailgating Full Height Turnstile for Access Control
High Security 304 Stainless Steel IP54 Waterproof Anti-Tailgating Full Height Turnstile for Access Control
High Security 304 Stainless Steel IP54 Waterproof Anti-Tailgating Full Height Turnstile for Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH02
Certification :
ISO, CE, RoHS
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
1,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Crate/Pallet
Material :
304 Stainless Steel, thickness is no less than 1.2mm
Power supply :
AC220V/110V,50/60Hz
Passing speed :
30-40 Persons/min for one lane
Passage width :
About 600mm
Type :
single core & double core
Description
High Security 304 Stainless Steel RFID QR Code Access Control Anti-Tailgating IP54 Protection Full Height Turnstile Gate
IP54 Waterproof Robust Full Height Turnstile with RFID Reader Fingerprint Face Recognition

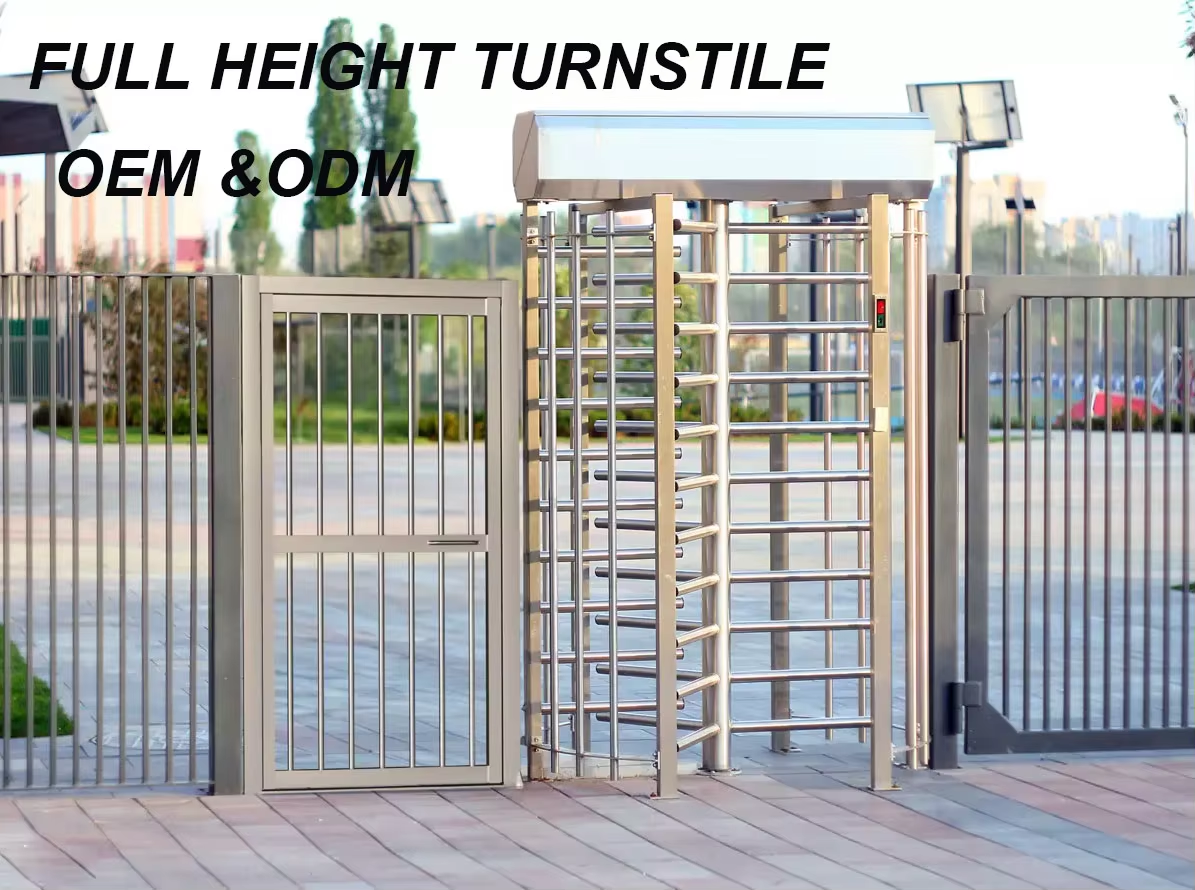

Full-height turnstile is a high-security access control device designed to regulate pedestrian flow in restricted areas. These turnstiles represent the highest level of security in our range, designed for building sites, company facilities, stadiums, and arenas. These robust turnstiles provide secure access control in areas where preventing unauthorized entry is a main priority. SINOMATIC offers full-height turnstiles in both semi-automatic and manual versions, giving you the flexibility to choose the right solution based on your specific needs and operational requirements.
Product Security & Durability
A robust and durable gate is essential for outdoor security applications. Intruders may attempt to exploit security vulnerabilities or vandalize gates when unattended. Our solution addresses these concerns without the premium cost of European brands.
Security Enhancement: Single-Level Anti-Reverse Lock
Traditional full-height turnstiles can be compromised by stopping the arm just before locking, allowing reverse rotation for unlimited unauthorized entry. Our SINOMATIC SLAR (single-level anti-reverse) lock design prevents this security loophole.
Enhanced Durability
The integrated heavy-duty shock absorber reduces impact and vibration from rotational momentum during operation, minimizing mechanical wear and lowering maintenance costs.
Emergency Safety Features
Manual unlocking capability during power failures allows free arm rotation for fast emergency evacuation while maintaining security during normal operation.
Cost-Effective Transportation
The tripod arm splits into three separate pieces to reduce transportation costs, with easy on-site reassembly.
Functions & Features
  • 304 stainless steel housing with customizable appearance options
  • Clear access direction indicators with intuitive LED traffic light signals
  • Unique drive system for precise and reliable zero lock/unlock operation
  • Gentle push operation after valid card authentication
  • 90/120 degree rotation per passage
  • Automatic reset function with configurable timeout settings
  • Standard interfaces compatible with various reading/writing equipment
  • Dual-mode power operation: free access during power failure, automatic locking when powered
  • Configurable card reading with memory and memory-less functionality options
Technical Specifications
Power Supply Input AC 220V 50HZ; 110V, 60HZ
Power Voltage DC 24V / 50W
Open Signal Passive signals (relay signals, dry contact signals)
Passage Width ≤650mm
Response Time ≤0.2s
Optimal Pass Speed 30-35 person/min
Housing / Arm 304 Stainless Steel
Arm Rotation Angle 90/120 degree
Working Environment Indoor and outdoor
IP Rating IP 54
Operations time ≥10 million times
