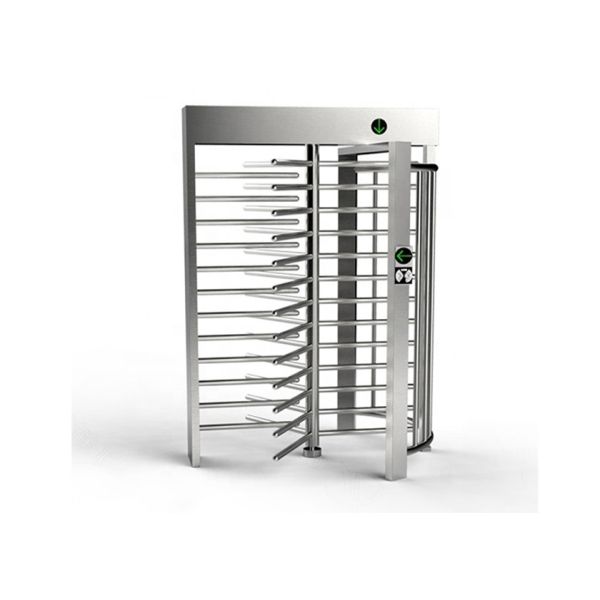

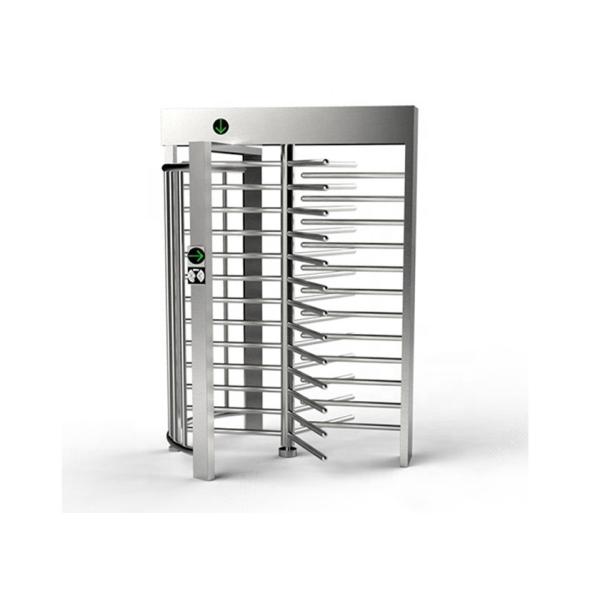

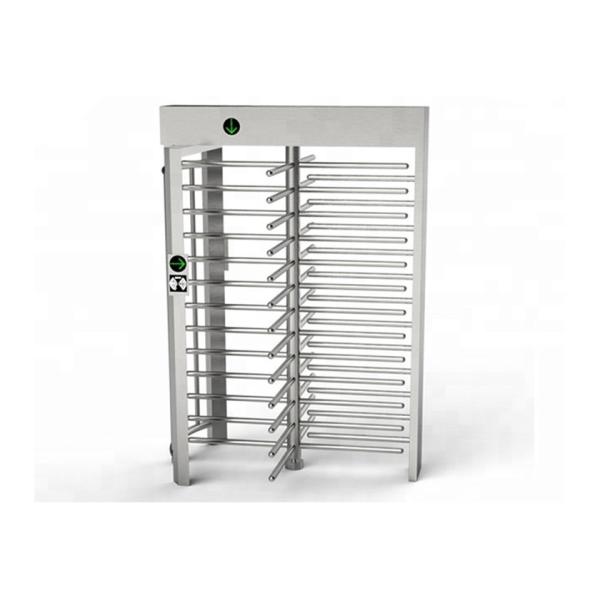

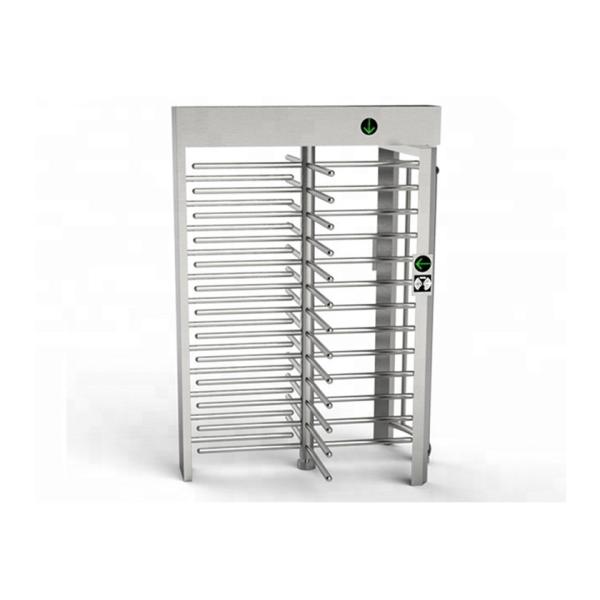

SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
100 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Power supply :
AC 220V/ AC110V ± 10%
Frame Material :
SS304/SS316
Transit speed :
20~30 person per min
Thickness of frame :
1.2 or 1.5mm
Arm length :
550mm(default)
Unlock time :
0.2 S
Width of passage :
600mm(default)
Package :
Wooden box
Control Voltage :
DC24V
Surface treatment :
Brushed
Description
Single Lane Arc Frame Full Height Turnstile
Bi-Directional Pedestrian Barrier Gate
CE Approved Single Lane Arc Full Body Height Turnstile With Automatic Access Control System
The full height turnstile features a robust mechanical design for unsupervised access control in offices and buildings. This intelligent pedestrian management system provides impenetrable construction to eliminate unauthorized access to restricted areas. Users must present valid credentials to the access control system for authorized passage.
Compatible with push button, fingerprint, and facial recognition systems, this turnstile is constructed from tailored stainless steel for elegant appearance, durability, and oxidation resistance.
Product Images
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
Product Dimensions
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
Functions & Features
  • Low noise mechanism core with high cost-performance ratio
  • Efficient operation with 1-2 second open/close cycle
  • Self-checking and maintenance alarm warning system
  • Automatic reset if passenger delays passage
  • Anti-following protection to prevent illegal passing
  • Anti-clamp safety feature with automatic reset after obstruction
  • Automatic wing locking for non-compliant users
  • Multi-passage configuration for various application demands
  • Programmable signal control for pass time, speed, and parameters
  • Compatible with RFID card readers, fingerprint readers, and facial recognition systems
  • Long-distance management through computer interface
  • Customizable options: LED display, voice guidance, warning lamps, indicator lights, audible and visible alarms
Control & Interface Options
  • Card readers
  • Metal detection
  • Electronic/LCD counters
  • Fail-open or fail-secure locking
  • Push-button and wireless remotes
  • Manual key override for both directions
  • Indicator lights
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Power Consumption 40W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Maximum Flow Rate 25 to 30 persons per minute
Arm Length 550mm (default)
Lane Width 600mm (default)
Working Temperature -20°C to 60°C
Current 3A
Control Circuit DC24
Working Humidity 0-95% RH
Arm Diameter 38mm
Workshop Photos
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate

Packing Photos
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
How Full Height Turnstile Access Control System Works
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
Case References
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
SS304/SS316 Full Height Turnstile with 0.2S Unlock Time and Bi-Directional Pedestrian Barrier Gate
