GA500DC 150W Rated Power Automatic Sliding Gate Opener with 24V 2.5Ah Emergency Backup Lithium Battery for 500kg Gates
GA500DC 150W Rated Power Automatic Sliding Gate Opener with 24V 2.5Ah Emergency Backup Lithium Battery for 500kg Gates
GA500DC 150W Rated Power Automatic Sliding Gate Opener with 24V 2.5Ah Emergency Backup Lithium Battery for 500kg Gates
GA500DC 150W Rated Power Automatic Sliding Gate Opener with 24V 2.5Ah Emergency Backup Lithium Battery for 500kg Gates
Specifications
Woring Temperature :
-20℃~70℃
Model Number :
GA500DC
Remote Control Range :
>30 meters
Remote Control Mode :
single button/three button
MOQ :
Sample order accepted
Delivery Time :
5-10 working days after payment received
Trade Terms :
Ex works, FOB/CIF/DAP/DDP
Controltype :
Remote control and manual override
Payment Terms :
T/T,Western Union,credit card/Cash/Alipay,L/C,D/A,D/P
Working Noise :
≤56dB
Place of Origin :
Shenzhen, China.
Power Source :
Electric
Housing Matetial :
ABS/Galvanized iron
Supply Ability :
10,000 pcs per month
Manual Release :
Yes
Certification :
CE/ ISO
Package :
Carton box
Price :
negotiable
Max Gate Width :
8m
Brand Name :
SINOMATIC
Gate Closing Speed :
11-13m/min
Packaging Details :
Carton/Plywood box/Pallet
Description
GA500DC 150W Rated Power DC Motor Automatic Sliding Gate Opener Operator With 24V 2.5Ah Emergency Backup Lithium Battery

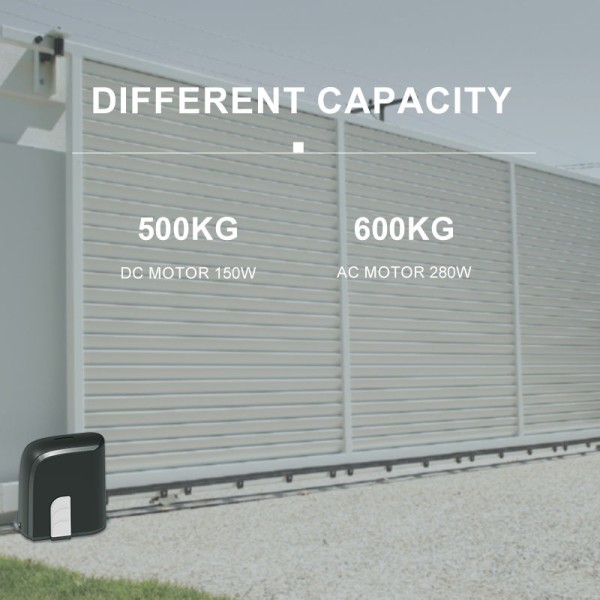

The GA500DC Sliding Gate Automation Kit is designed for powering the opening and closing motion of gates up to 500kg in weight and 8m in length.

Gate motion is achieved by the rotating output gear of the gate opener driving the gear rack (sold separately) fitted to the moving gate.

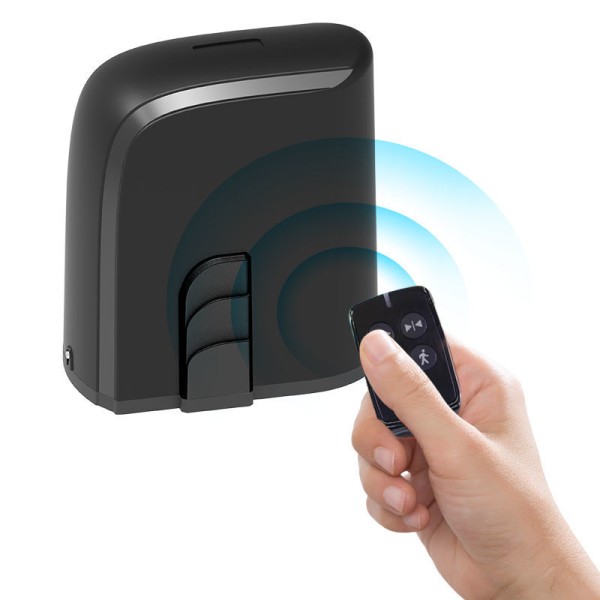

The gate opener requires a single press of the remote control to open, and another press to close, ensuring safe operation.

Key Features
  • Soft start and slow stop operation
  • Automatic reverse when encountering obstacles
  • Adjustable motor output force, stall force, and slow stop distance
  • Automatic close with adjustable waiting time
  • Partial opening capability for pedestrian access
GA500DC 150W Rated Power Automatic Sliding Gate Opener with 24V 2.5Ah Emergency Backup Lithium Battery for 500kg Gates
Technical Specifications
Model GA600AC
Power Supply 220VAC/50Hz 110VAC/60Hz
Motor Power 150W
Gate Moving Speed 18m/min
Maximum Loading Weight 500kg
Remote Control Distance ≥ 30m
Remote Control Mode Single button mode / Three button mode
Limit Switch Spring limit switch / Magnetic limit switch

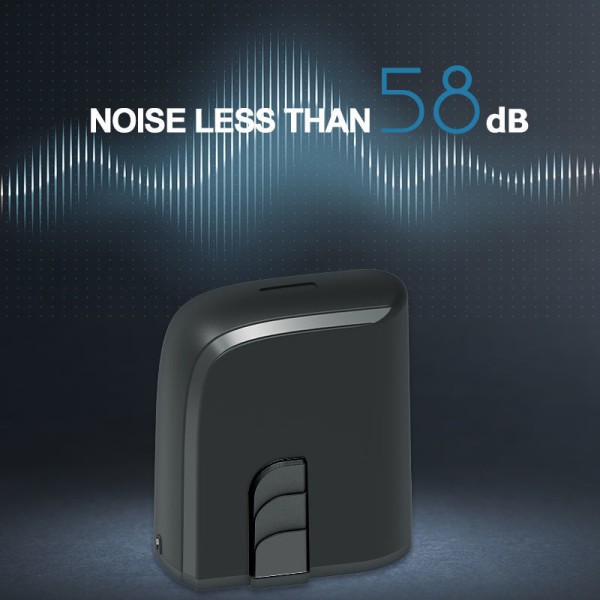

Working Noise ≤ 56dB
Working Duty S2, 20min
Working Temperature -20°C ~ +70°C
Recording of up Remote Controls 25
Remote Frequency 433.92 MHz
Overall Dimensions (L*W*H) 267*219*285mm
Weight 10.5kg
GA500DC 150W Rated Power Automatic Sliding Gate Opener with 24V 2.5Ah Emergency Backup Lithium Battery for 500kg Gates
Standard Unit Includes
  • Gate Motor
  • Control board & box
  • 2 remote controls
  • Mounting plate
  • Manual release key
  • User manual
  • Bolts & nuts
  • Backup battery
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack (order according to your gate length)
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
About Our Company

SHENZHEN SINOMATIC TECHNOLOGY CO, LIMITED, located in Shenzhen China, is a high-tech enterprise specializing in R&D, production, and sales. Our main product lines include pedestrian access control turnstiles, vehicle barrier gates, hydraulic road bollards and blockers, and automatic gate operators.

Our products are widely used in locations requiring access control, including government facilities, installations, schools, hospitals, airports, terminals, tourist attractions, and parking lots. To date, our products have been exported to over 100 countries including Italy, Germany, UK, Spain, Russia, Canada, Mexico, Brazil, UAE, India, Malaysia, Singapore, Thailand, South Africa, Nigeria, and Kenya.

We focus on developing products with stable functionality and excellent performance, while offering the most affordable prices to our customers. Our goal is to establish win-win, long-term cooperation relationships with all customers and partners.
