Specifications
Model Number :
J-KZ401
Protection grade :
IP54
MOQ :
Sample order accepted
Delivery Time :
5-10 working days after payment received
Motor power :
200W
Payment Terms :
T/T,Western Union
Supply Ability :
3,000 pcs per month
Certification :
CE/ ISO
Housing Color :
Silver or Grey
Place of Origin :
Shenzhen, China.
Housing dimension :
500*328*1300mm
Price :
negotiable
Working temperature :
-30 ℃~+60 ℃
Brand Name :
SINOMATIC
Opening/Closing time :
3s~6s
Packaging Details :
Carton/Plywood box/Pallet
Description
Customizable 5 Meter Arm 200W DC Motor RS485 Door Parking Vehicle Access Control Automatic Barrier Gate

This silver spearhead type anti-climb Sharp Warrior heavy-duty barrier gate adopts a spearhead anti-climb structure with strong protection performance, which can effectively prevent climbing. It is suitable for high-end residential quarters, government parks, commercial buildings and other places with high security standards.

Made of silver anti-corrosion profiles, it has an exquisite and bright appearance, a solid structure and excellent impact and wind resistance. The gate runs smoothly and quietly, supports multiple intelligent control modes, and is compatible with license plate recognition and remote management systems. Easy to install and stable in operation, it is an optimal choice for high-end intelligent security access control.

Technical Specifications
Parameter Name Specification
Chassis Dimensions 1300*500*382 mm
Total Length (including chassis) ≤5 m
Main Boom Dimensions 140*65*1.5 mm
Bar Lifting & Lowering Time 3-6 s adjustable
Operating Voltage DC 24 V
Output Power 200 W
Operating Temperature -30°C ~ 60°C
Relative Humidity ≤85%
Cycle Life ≥5 million cycles
Advanced Features & Functions
  • Brushless DC Motor: Energy-saving and silent for long service life
  • 200W Output Power: Provides sufficient power for smooth operation
  • Integrated Precision Movement: Ensures stable and durable performance
  • Multiple Trigger Signals: Supports remote control and other methods for flexible use
  • Customizable Design: Suitable for various usage scenarios like residential, public, industrial, and government
  • Heavy Duty Steel: Provides robust security and durability for industrial settings
  • Customizable Lengths: Offers flexibility for various factory and parking lot sizes
  • Engineered Quality: Meets high standards for industrial applications
  • Stainless Steel Finish: Shiny silver finish enhances aesthetic appeal while resisting corrosion
  • Easy Installation: Simple setup for quick deployment in busy environments
Power & Safety Features
  • Powered by 24V DC power supply, ensuring personal safety
  • Adjustable speed: independent adjustment of lifting and lowering speed
  • Stable operation: When the falling and lifting rods are in place, deceleration buffering is achieved, making the brake rod smoothly in place
  • Quiet: The working noise is below 50db
  • Material: The main body of the movement is made of aluminum alloy material, manufactured by die-casting technology, with reliable mechanical strength, beautiful appearance, precise size, and good heat dissipation
  • Multiple protections: motor over-current, overload, short circuit protection, motor fault protection, power reverse protection
  • Support external remote control input
  • Support for open position, close position, and status relay output
  • Supports RS485 serial communication

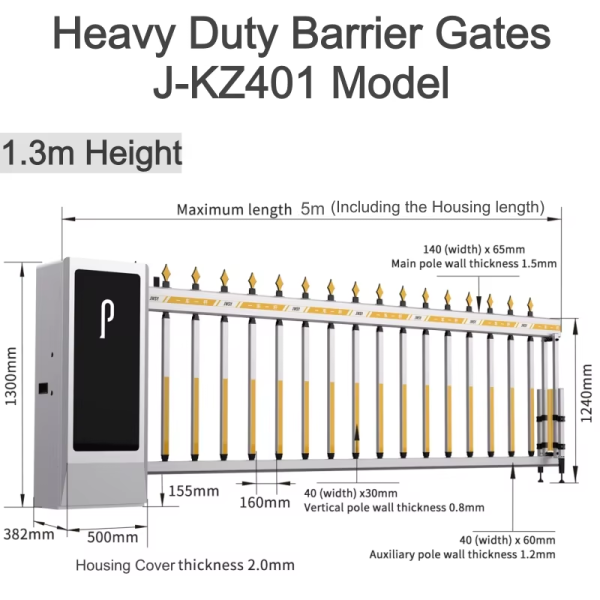

Product Dimension
Customizable 5 Meter Arm 200W DC Motor RS485 Automatic Barrier Gate for Vehicle Access Control

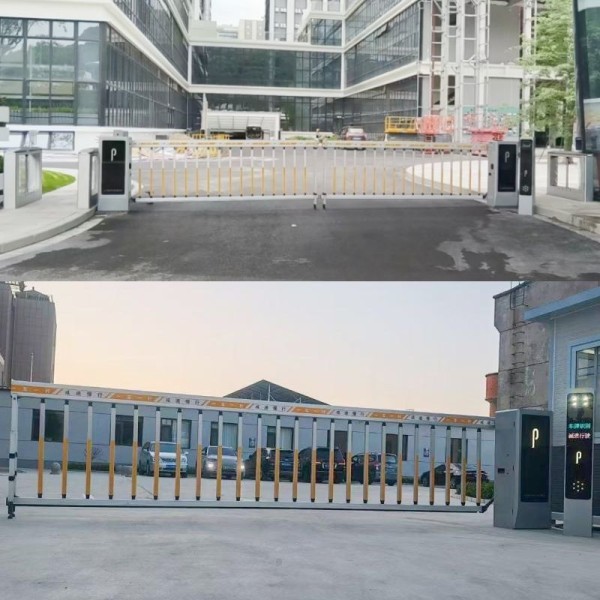

Application Reference
Customizable 5 Meter Arm 200W DC Motor RS485 Automatic Barrier Gate for Vehicle Access Control
