100mm Diameter UV-resistant Polycarbonate IP65 Waterproof LED Traffic Signal for Parking Lots and Roads
100mm Diameter UV-resistant Polycarbonate IP65 Waterproof LED Traffic Signal for Parking Lots and Roads
100mm Diameter UV-resistant Polycarbonate IP65 Waterproof LED Traffic Signal for Parking Lots and Roads
100mm Diameter UV-resistant Polycarbonate IP65 Waterproof LED Traffic Signal for Parking Lots and Roads
Specifications
Brand Name :
SINOMATIC
Model Number :
JD-100-3-PC-RYG
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Alipay,Paypal,Credit Card
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton
Lamp diameter :
100mm
Working voltage :
AC85-265V/DC12V/DC24V
Shell material :
UV-resistant polycarbonate
Operating temperature :
-40℃-65℃
Visual distance :
1-500M
Installation method :
vertically or horizontally
Warranty :
2 years
LED Life :
100000H
The number of beads :
Red / yellow/green each 40 pcs
Description
Newly Upgraded PC Material Waterproof and Dustproof 100mm Diameter Red Yellow Green Traffic Light
Available in 100mm, 200mm, and 300mm diameters with red, yellow, and green PC shell LED configurations for parking lot toll stations and traffic control applications.
Product Overview

100mm LED road traffic light featuring UV-resistant polycarbonate shell construction for durability in harsh weather environments. Ideal for truck docks, forklift intersections, roads, and parking lots. Equipped with 40 high-brightness LEDs per section to ensure maximum visibility.

Key Features
  • 40 high-brightness LEDs per light section for excellent visibility
  • Durable PC enclosures suitable for indoor/outdoor applications
  • Multi-layer seal provides moisture and dust resistance
  • IP65 rated waterproof enclosure
  • Up to 90% energy savings compared to incandescent bulbs
  • Over 500,000 hours of operational life
  • Includes two right-angle mounting brackets
  • Color sequences available: red-green or red-yellow-green
  • Control modes: manual control or remote control
  • CE and RoHS certified

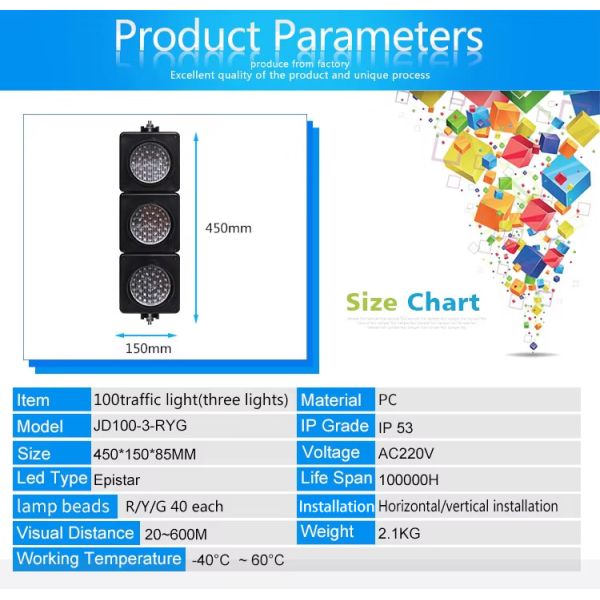

Technical Specifications
Specification Details
Product Dimensions 450 × 150 × 85mm
LED Count 40 beads each for red, yellow, and green
LED Type Taiwan Epistar
Red Wavelength 620-625nm
Yellow Wavelength 590-595nm
Green Wavelength 500-505nm
LED Lifespan 100,000 hours
Shell Material Polycarbonate (PC)
Operating Temperature -40℃ to 65℃
Operating Voltage AC85V~265V, DC12V/24V
Visual Distance 1-500 meters
Installation Vertical or horizontal mounting
100mm Diameter UV-resistant Polycarbonate IP65 Waterproof LED Traffic Signal for Parking Lots and Roads
Warranty & Service
2-year warranty on main product (accessories not included)
Important Usage Notes
  • Damages caused by operator error are not covered under warranty
  • For use under professional guidance only
  • Do not disassemble without authorization
  • Return shipping costs for warranty service are the responsibility of the sender
  • Compatible with DC12V, DC24V, and AC85-265V power systems
