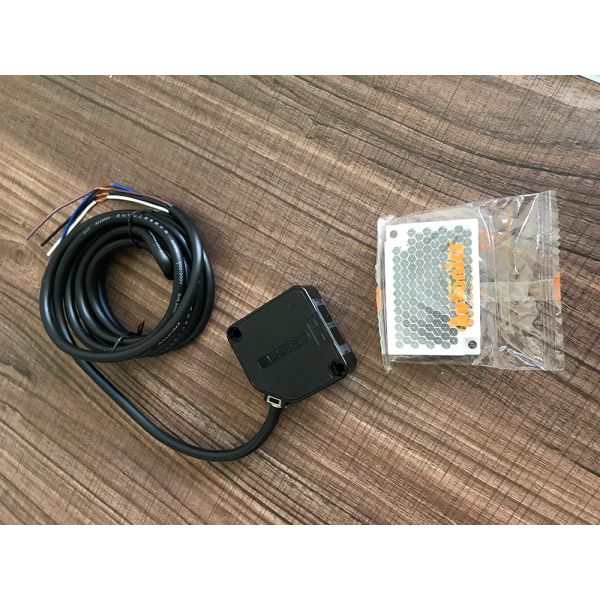

Autonics BEN7M-MDR Retro-reflective Photoelectric Sensor with 7m Detection Distance Relay Output and IP54 Protection
Autonics BEN7M-MDR Retro-reflective Photoelectric Sensor with 7m Detection Distance Relay Output and IP54 Protection
Autonics BEN7M-MDR Retro-reflective Photoelectric Sensor with 7m Detection Distance Relay Output and IP54 Protection
Autonics BEN7M-MDR Retro-reflective Photoelectric Sensor with 7m Detection Distance Relay Output and IP54 Protection
Specifications
Brand Name :
SINOMATIC
Model Number :
BEN7M-MDR
Certification :
CE
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Alipay,Paypal,Credit Card
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Sensing Type :
Retro-reflective (mirror reflection)
Rated Sensing Distance :
7 m (with standard reflector)
Power Supply :
12-24VDC±10%
Output Type :
Relay contact output (AC/DC)
Operation Mode :
Light ON / Dark ON (selectable via switch)
Response Time :
Max. 20 ms
Protection grade :
IP54(IEC standard)
Sensing target :
Opaque materials of Min Φ60mm
Contact output :
Relay contact output
Description
Autonics BEN7M-MDR Retro-reflective 7m Detection Distance Relay Output Photoelectric Sensor Switch

Original Genuine BEN7M-MDR Retroreflective Photoelectric Sensor switch for Industrial Automation and Controls.

The Autonics BEN7M-MDR is a high-performance retro-reflective photoelectric sensor, part of the widely adopted BEN series from Autonics, a global leader in industrial automation components. Engineered for reliability and versatility, this sensor uses modulated infrared light and a dedicated reflector to detect opaque objects over a long range of up to 7 meters, making it ideal for diverse industrial and commercial applications. Its robust design, combined with flexible configuration options, ensures stable operation even in challenging environments with dust, moisture, or fluctuating ambient light.

Highlights at a Glance
  • 7-meter ultra-long-distance diffuse reflection
  • AC/DC universal power supply, compatible with all scenarios
  • Relay output, making direct drive of loads more worry-free
Technical Specifications
Parameter Details
Model BEN7M-MDR
Brand Autonics
Sensing Type Retro-reflective (mirror reflection)
Rated Sensing Distance 7 m (with standard reflector)
Power Supply 12-24 VDC (AC/DC compatible)
Output Type Relay contact output (AC/DC)
Operation Mode Light ON / Dark ON (selectable via switch)
Response Time Max. 20 ms
Protection Rating IP67 (waterproof and dustproof)
Light Source Infrared LED (850 nm)
Housing Material Plastic (ABS)
Cable Length 2 m (standard)
Core Features
  • Long-Range Detection: Offers a 7-meter sensing distance, ideal for applications requiring extended coverage.
  • Universal Compatibility: Supports both AC and DC power inputs, making it versatile for different control systems.
  • Adjustable Operation Modes: Includes a switch to toggle between Light ON and Dark ON configurations for flexible integration.
  • Dual Indicators: Features a green stability indicator and red operation indicator for quick status checks.
  • IP67 Protection: Withstands harsh industrial conditions, including moisture, dust, and occasional water splashes.
  • High Stability: Equipped with a specialized sensor IC to minimize false triggers caused by ambient light or interference.
Common Applications
  • Conveyor line object counting and positioning
  • Automatic door and gate control systems
  • Packaging machinery (product presence verification)
  • Safety light curtains (non-contact area monitoring)
  • Logistics sorting and material handling equipment
