Rotatable Multi-angle Reflective Infrared Photocell Sensor with 15M Detect Range for Home Security
Rotatable Multi-angle Reflective Infrared Photocell Sensor with 15M Detect Range for Home Security
Rotatable Multi-angle Reflective Infrared Photocell Sensor with 15M Detect Range for Home Security
Rotatable Multi-angle Reflective Infrared Photocell Sensor with 15M Detect Range for Home Security
Rotatable Multi-angle Reflective Infrared Photocell Sensor with 15M Detect Range for Home Security
Rotatable Multi-angle Reflective Infrared Photocell Sensor with 15M Detect Range for Home Security
Specifications
Brand Name :
SINOMATIC
Model Number :
YET612
Certification :
CE
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Alipay,Paypal,Credit Card
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Input Voltage :
AC: 9V~ 24V DC: 12V~24V
Detect range :
Max 15M
Reaction time :
About 30mS
Ambient light intensity :
Max.5000lux
Working temperature :
-20℃ ~ +60℃
Lens size :
D82 x H8.3mm
Product weight :
About 151.5
Color :
Red
Type :
Refro
Description
Rotatable Reflective Home Security Wireless Infrared Beam Multi-angle Reflective Sensor Photocell Switch
This polarized reflective red infrared photocell beam is designed for garage doors, swing gates, sliding gates, and various security applications.
Key Features
  • Reliable Reversing Sensor: Outdoor photoelectric sensor with rapid response that creates a safety barrier to detect movement and automatically stops or reverses gates when obstructions are detected
  • Wide Compatibility: Works with all gate openers and compatible with most third-party swing/sliding gate openers or garage door openers accepting Normal Open or Normal Close Dry Contact signals
  • Easy Installation: Simple wire connection with screw mounting, waterproof cover for weather protection, and maintenance-free outdoor operation
  • Durable Construction: Made of high-quality UV-resistant and flame-retardant materials for long-lasting performance
Applications
  • Lifting doors and revolving doors
  • Sliding doors and wall security protection
  • Window and balcony security systems
  • Warehouse security and access control
  • Parking lots and outdoor security sites
Technical Specifications
Input Voltage AC: 9V~ 24V DC: 12V~24V
Working current 1) <35mA@12VDC 2) <19mA@24VDC
Detect distance 1) ≥15m (with imported reflector) 2) ≥10m (with domestic reflector)
Reaction time ≥ 30mS
Ambient light intensity Max.5000lux
Infrared light spec. 1) Wave length: 740nm 2) Emission Type: Visible Red light
Output Port Loading 1) AC 0.3A/120VAC 2) DC 0.8A/30VDC
Working temperature -20℃ ~ +60℃
Storage temperature -30℃ ~ +80℃

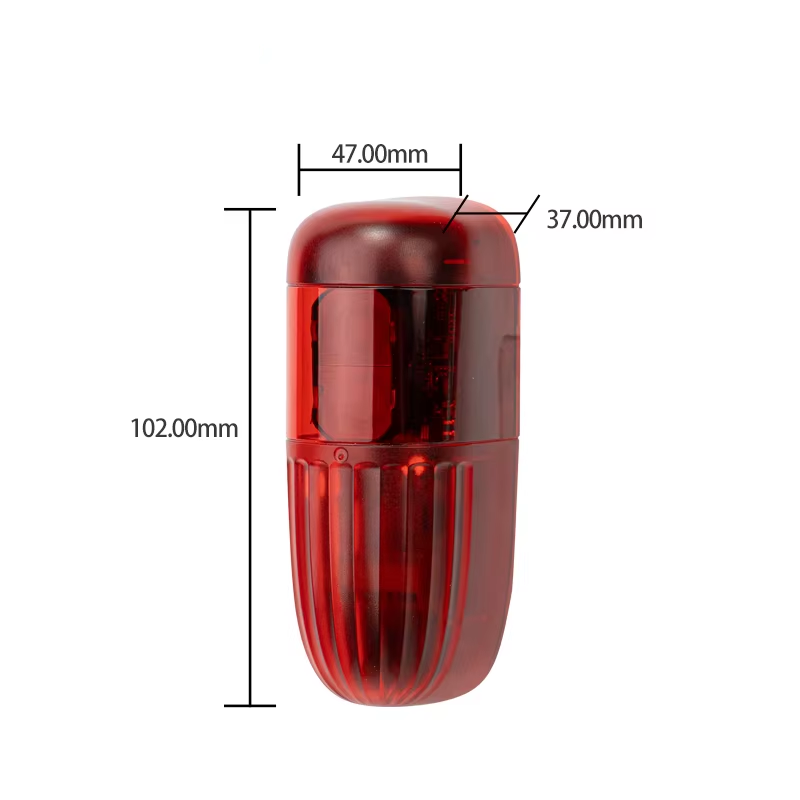

Product Size(L*W*H) 112.7*47*42.9mm
Reflector Dimensions D82 x H8.3mm
Product weight 151.5g (including sensor, reflector, mounting screw accessories, and rain cover)
Rotatable Multi-angle Reflective Infrared Photocell Sensor with 15M Detect Range for Home Security
Product Installation and Precautions
  1. Do not exceed the maximum sensing distance during installation and commissioning.
  2. Install the reflector at a suitable height, with its reflective surface facing the sensor.
  3. Adjust the sensor horizontally and vertically to align with the reflector's center. Initial setup: Secure the sensor first, align the reflector, then move the reflector from near to far to the desired position.
  4. The infrared beam diverges with distance, so adjust the reflector up/down and left/right to find the optimal position. Ensure the infrared beam hits the reflector.
  5. Do not mount the unit on shaking or vibrating surfaces, as this may cause false triggering.
