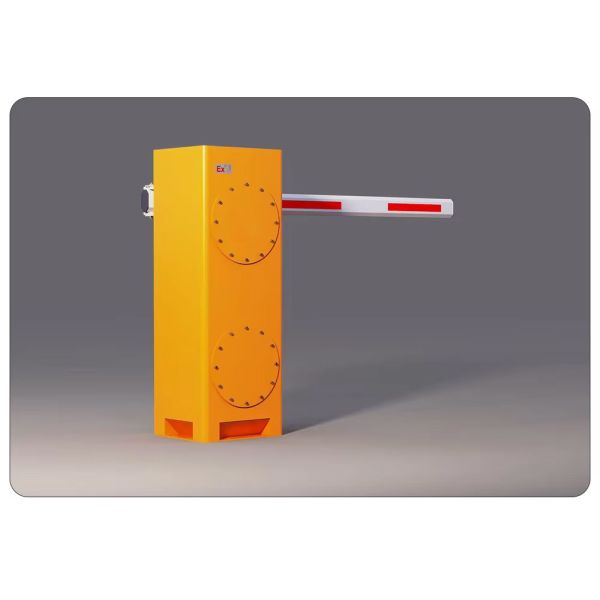

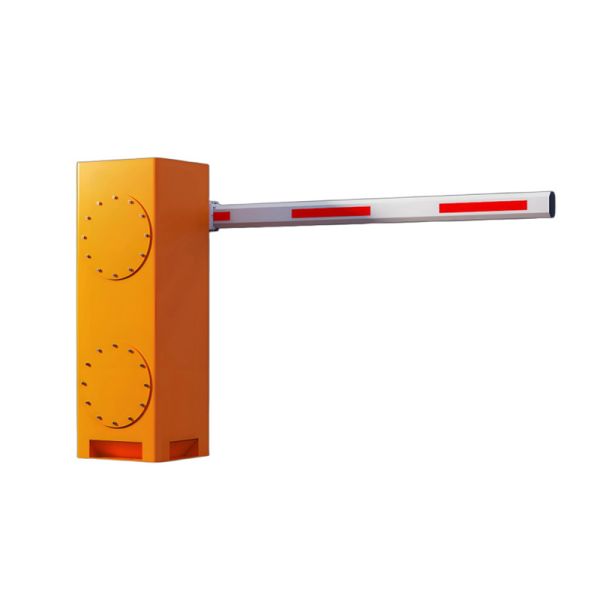

IP66 Certified Explosion Proof DC Brushless Motor Barrier Gate Safety Guardrail for Traffic Control
IP66 Certified Explosion Proof DC Brushless Motor Barrier Gate Safety Guardrail for Traffic Control
IP66 Certified Explosion Proof DC Brushless Motor Barrier Gate Safety Guardrail for Traffic Control
IP66 Certified Explosion Proof DC Brushless Motor Barrier Gate Safety Guardrail for Traffic Control
Specifications
Brand Name :
SINOMATIC
Model Number :
DZ-2243B
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Credit card,Paypal,Alipay,Wechat
Supply Ability :
10,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Protection Grade :
IP66
Rated power :
200W
Boom length :
3m~6m
Color :
Yellow
Speed :
3S~6S
Drive mode :
DC brushless motor
Remote Control Distance :
100M (open and sunny weather)
Power Voltage :
DC24V / AC100~240V, 50/60Hz
Description
3mm Thickness Cold-roll Steel Gas Explosion Proof DC Brushless Motor Safety Guardrail IP66 Certified Barrier Gate

This industrial-grade barrier gate features a robust 3mm cold-roll steel construction with IP66 certification, making it suitable for demanding environments including gas stations and other flammable areas.

Product Advantages
  • IP66 Certified: Water-resistant and dust-proof for reliable performance in harsh environments
  • Engineer Grade Reflectivity: Ensures high visibility and safety during low-light conditions
  • Explosion Proof Design: Safe for use in flammable areas, ideal for gas stations
  • DC Brushless Motor: Efficient and durable power source for smooth operation
  • Customizable Speed: Adjusts running speed from 1.2s to 3s for optimal traffic management
Main Functions and Features
  • Operation speed can be adjusted
  • Slow up and slow down can be adjusted
  • The limit angle can be adjusted
  • Left and right direction can be quickly interchanged
  • The barrier arm can be manually operated in case of power failure
  • 433MHz frequency learning code anti-copy remote controller
  • Infrared photocell sensor IO signal input function
  • Loop detector and radar IO signal anti-collision signal input function
  • Up, down and stop IO signal input function
  • Counting function
  • LED light IO signal output function
  • Traffic light IO signal output function
  • Up and down in place, normally open and normally closed signal output function
  • RS485 communication output function
  • Delay arm drop function
  • Arm auto-reverse function
  • Automatic lifting function when power is off
  • IO port single-key cycle up and down function
  • Loop detector normally open and normally closed function
  • One car and one arm to prevent toll evasion function
  • Anti-collision alarm function (requires additional fee for alarm and sensor)
  • Fire linkage signal input function
  • The IO port closes the signal input function
  • Fleet (Peak Mode)
Technical Specifications
Item Specification
Working Temperature of Movement -35℃~+85℃
Power Voltage DC24V / AC100~240V, 50/60Hz
Running Speed 3s-6s
Rated Power 200W
Drive Mode DC brushless motor
Relative Humidity ≤90%
Remote Control Distance 100M (open and sunny weather)
Protection Level IP66
Motor No-load Speed 1850r/min
Maximum Arm Length 3M-6M
