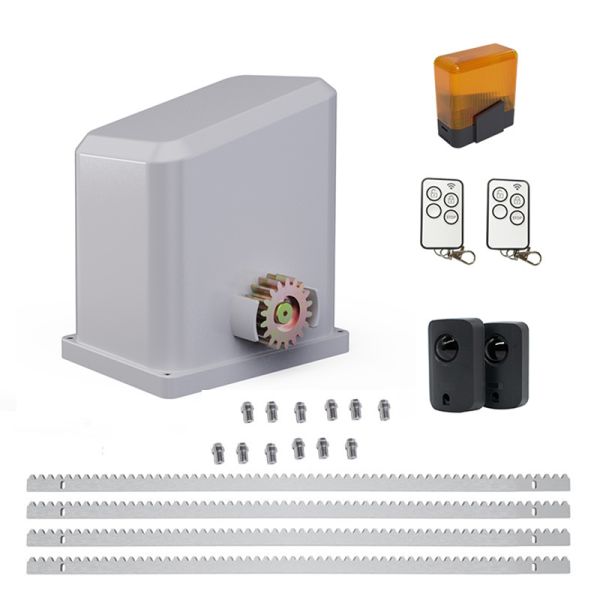

3000KG Loading Weight Servo Motor 26 Meter per Minute Fast Speed Automatic Sliding Gate Opener
3000KG Loading Weight Servo Motor 26 Meter per Minute Fast Speed Automatic Sliding Gate Opener
3000KG Loading Weight Servo Motor 26 Meter per Minute Fast Speed Automatic Sliding Gate Opener
3000KG Loading Weight Servo Motor 26 Meter per Minute Fast Speed Automatic Sliding Gate Opener
Specifications
Model Number :
PY-2337
Drive Method :
Servo Motor
MOQ :
Sample order accepted
Delivery Time :
5-10 working days after payment received
Rated Power :
200W/400W
Battery Specification :
24V 2Ah lithium
Payment Terms :
T/T,Western Union,credit card/Cash/Alipay,L/C,D/A,D/P
Drive Type :
Gear rack driven
Certification :
CE/ ISO
Power Supply Range :
AC220V/110V±10%； DC24V
Place of Origin :
Shenzhen, China.
Gate Weight :
2000KG/ 3000KG
Supply Ability :
10,000 pcs per month
Package Weight :
17KG
Price :
negotiable
Product Type :
Sliding Gate Operator
Brand Name :
SINOMATIC
Soft Stop :
-35°C~85°C
Packaging Details :
Carton/Plywood box/Pallet
Material Of Cabinet :
Steel and Plastic
Description
3000KG Loading Weight Servo Motor 26 Meter per Minute Fast Speed Automatic Sliding Gate Opener
Servo Motor 3000KG Loading Weight With Photocell Flashlight Wifi Interface Remote Control Sliding Gate Opener
Product Overview

This new generation servo sliding gate motor represents a breakthrough in gate automation technology, addressing common issues found in traditional motors such as rapid heating, slow operation, inaccurate limiting, high inertia, low output efficiency, and short lifespan. The innovative design also resolves structural problems associated with traditional worm gear reducers, including low transmission efficiency, high wear rates, excessive noise, limited lifespan, and insufficient torque.

The motor incorporates a planetary reducer, servo motor, and absolute encoder limit design, delivering high transmission efficiency with minimal heat generation. It features precise limiting capabilities and low inertia, enabling smooth slow-closing and soft-stopping functions. The system supports electronic clutch operation and can function normally without mains power, offering advantages such as minimal wear, extended lifespan, high efficiency, substantial torque output, and quiet operation.

Advanced communication options including 4G, Wi-Fi, and Bluetooth connectivity enable remote control via mobile applications, providing enhanced intelligent functionality for modern access control systems.

Technical Specifications
Item Specification
Mechanism Operating Temperature -35℃~+85℃
Power Supply Voltage DC 24V, AC 110V / 220V, 50/60Hz
Opening Speed 26m/min
Rated Power 200W/400W
No-Load Speed 3600r/min
Rated Speed 3000r/min
No-Load Noise ≤56 dB
Output Torque 65N.m/120N.m
Protection Rating IP58
Suitable Gate Weight 500kg-2000kg/500kg-3000kg
Product Dimensions 286mm×209mm×347mm
Drive Mode Servo Motor
Operator Net Weight 10.1kg
3000KG Loading Weight Servo Motor 26 Meter per Minute Fast Speed Automatic Sliding Gate Opener
Key Features
  • Global Electronic Limit Learning Function
  • Adjustable Motor Speed
  • Auto-Close Delay Setting
  • Soft Start/Stop Function
  • Obstacle Rebound Protection
  • Extended Interface & Compatibility
  • Optional IoT Smart Connection
Optional Accessories
  • Metal Gear Rack & Nylon Gear Rack (ordered according to gate length)
  • Photo Beam Sensor
  • Keypad Systems
  • Push Button
  • Warning Light
Applications
  • Residential compounds
  • Commercial properties (offices, malls)
  • Industrial facilities (factories, warehouses)
  • Public areas (parks, institutions)
Manufacturer Information

SHENZHEN SINOMATIC TECHNOLOGY CO, LIMITED, located in Shenzhen, China, is a high-tech enterprise specializing in research, development, production, and sales of comprehensive access control solutions. Our product portfolio includes pedestrian access control turnstiles, vehicle barrier gates, hydraulic road bollards and blockers, and automatic gate operators.

Our products are extensively used in government facilities, institutional installations, educational institutions, healthcare facilities, airports, transportation terminals, tourist attractions, and parking management systems. With exports to over 100 countries including Italy, Germany, United Kingdom, Spain, Russia, Canada, Mexico, Brazil, UAE, India, Malaysia, Singapore, Thailand, South Africa, Nigeria, and Kenya, we prioritize reliable functionality and exceptional performance while maintaining competitive pricing to establish mutually beneficial, long-term partnerships.
