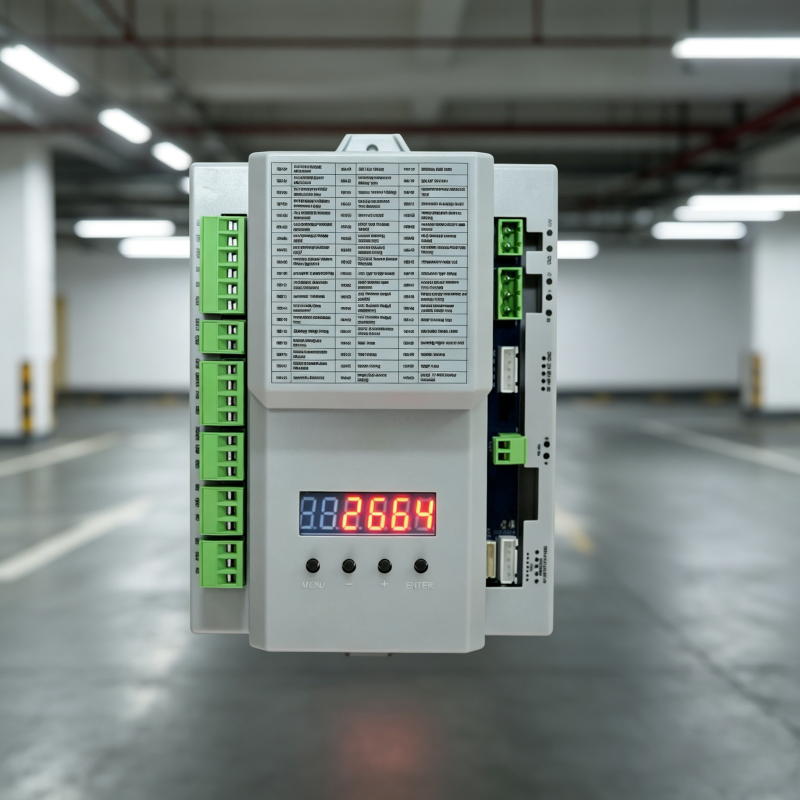

This DC brushless barrier gate control board supports 1st to 5th generation parking barrier BLDC motors, delivering high-performance motor control for automatic parking barrier gates. It features hall effect limit switch technology that automatically recognizes open and close limit positions after power-on without manual calibration, ensuring high precision positioning and real-time motor speed detection for stable operation.

The integrated high-speed chip driver provides fast processing and large storage capacity, supporting 24V low voltage power supply and compatibility with DC24V, AC110V, and AC220V 50/60Hz global power inputs for safe, reliable operation.

Comprehensive multi-layer protection includes motor stall detection, over-current, over-voltage, under-voltage, short circuit protection, and built-in PTC thermistor overheat protection. Equipped with a 5-digit LED display and four-button keypad for onsite programming, parameter monitoring, and fast fault diagnosis.

Rich multi-channel digital inputs connect stop, open, and close signals, safety loop detectors, infrared photocells, and anti-collision radar. Multiple relay outputs work with flashing lights, warning lamps, and traffic light accessories. Built-in RS485 port supports remote control and intelligent parking system integration.

This mainboard supports 433MHz and 418MHz anti-copy remote control, obstacle auto-reverse, vehicle counting, anti-tailgating, fleet peak mode, and fire linkage functions. Modular layout simplifies installation and wiring.

• Adjustable operation speed with customizable slow up/slow down settings
• Adjustable limit angle with quick left/right direction interchange
• Manual barrier arm operation during power failures
• 433MHz frequency learning code anti-copy remote controller
• Infrared photocell sensor IO signal input function
• Loop detector and radar IO signal anti-collision input
• Up, down, and stop IO signal input functionality
• Integrated counting function
• LED light and traffic light IO signal output
• Up/down position and normally open/closed signal output
• RS485 communication output capability
• Delay arm drop and auto-reverse functions
• Automatic lifting when power is off
• IO port single-key cycle up/down operation
• Loop detector normally open/closed functionality
• One car, one arm anti-toll evasion system
• Anti-collision alarm function (alarm and sensor optional)
• Fire linkage signal input capability
• IO port close signal input function
• Fleet (Peak Mode) operation support

Standby current less than 100mA, max continuous operating current up to 8A. Suitable for new barrier assembly, old barrier retrofit, and spare part replacement for gate manufacturers and parking projects. One year warranty included with free technical support covering parameter setting and wiring guidance. OEM and ODM services available for bulk orders.
